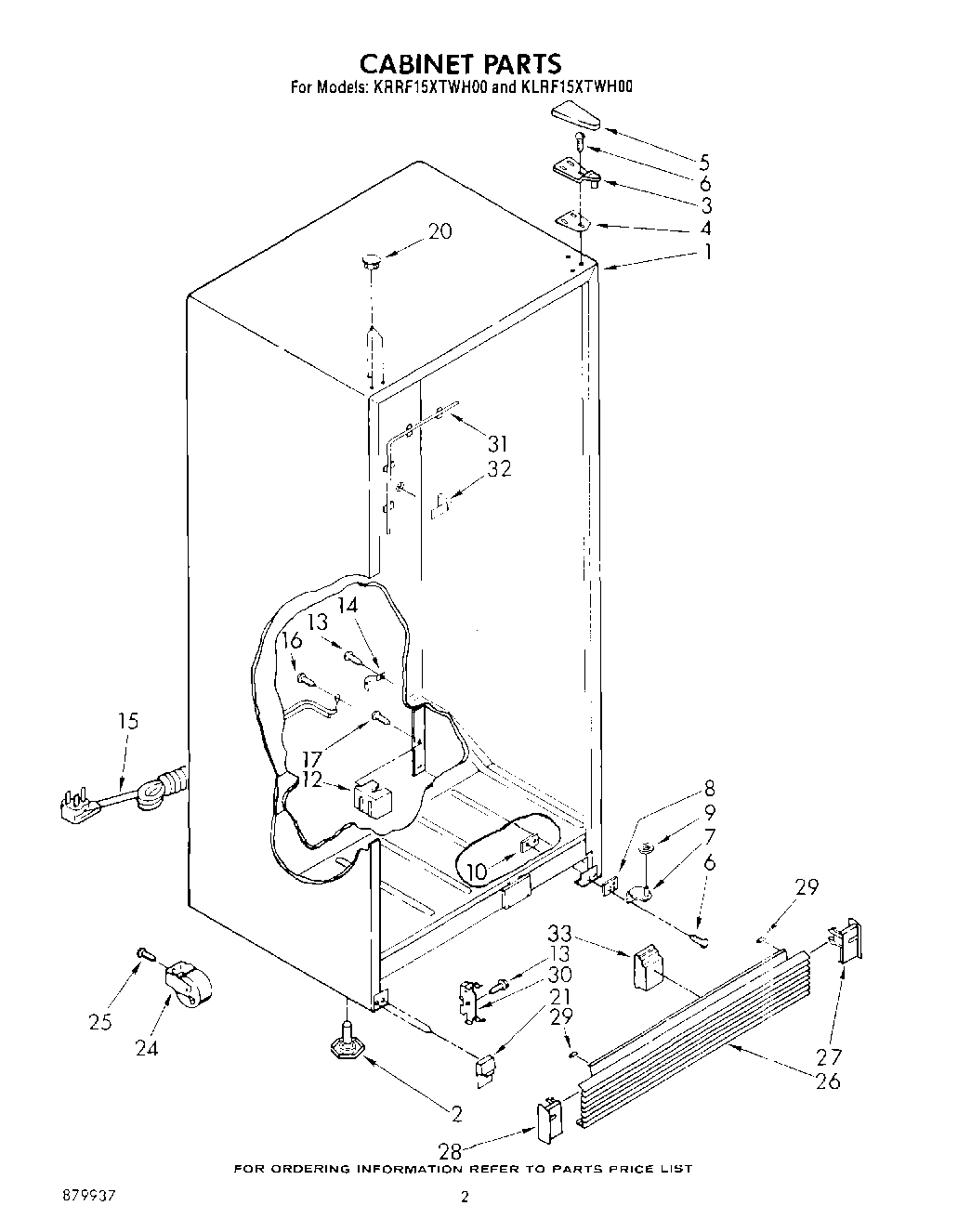

KLRF15XTAL00 02 – CABINET

Products

Position	Product
NI	Screw (Repair)
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Hinge, Top
4	WPL 836151
5	1119787 Whirlpool Refrigerator Hinge Cover
6	WP999367 Whirlpool Refrigerator Screw
7	Hinge, Bottom R.H.
7	Hinge, Bottom (L.H.)
8	Shim, Bottom Hinge
9	WP487802 Whirlpool Refrigerator Washer
10	Tap Plate
12	WPL 549947
13	W11624204 Whirlpool Screw
14	549193 Whirlpool Refrigerator Power Clamp
15	Cord, Service
16	Screw, 8-32 x 3/8
17	WP488729 Whirlpool Refrigerator Door Screw
20	Hole Plug (2) (Almond)
20	Hole Plug (2) (White)
21	Filler, Grille
24	WPW10250570 Whirlpool Refrigerator Cabinet Roller
25	Screw, 1/4-28 x 1/2 (2)
26	Grille
27	Grille, End Cap (R.S)
28	Grille, End Cap (L.S.)
29	Bumper, Grille (2)
30	WPL 989068
31	Stile Heater
32	WPL 935663
33	Insert, Air Baffle Grille
