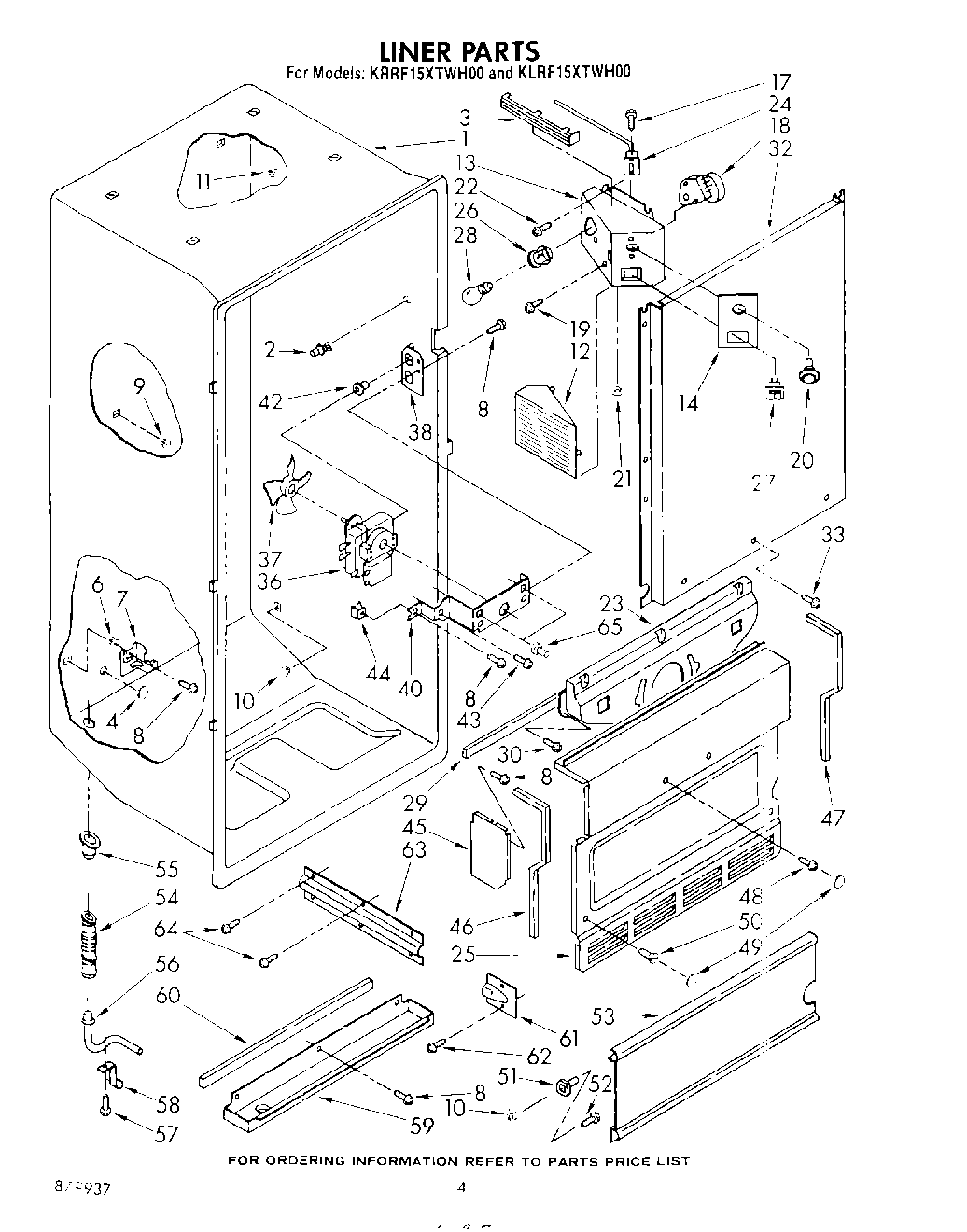

KLRF15XTWH00 03 – LINER , LIT/OPTIONAL

KLRF15XTWH00 03 – LINER , LIT/OPTIONAL

Written by

in

KLRF15XTWH00 03 – LINER , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	WPL LIT1107577
	Leveler (Thinner)
	WPL LIT1107933
	WPL LIT1117595
	WPL LIT879937
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Rivet
4	Hole, Plug
7	Support, Evaporator
9	Grommet
11	Grommet
12	Light, Lens
13	Control Box
14	Insert, Control Box
17	Screw, 8-32 x 3/8
18	WP4391974 Whirlpool Refrigerator Defrost Timer
19	WP487353 Whirlpool Refrigerator Screw
20	Control Knob, Thermostat
21	940014 Whirlpool Refrigerator Primary Button Plug
22	WP489069 Whirlpool Compactor Screw
23	Fan Orfice
24	Thermostat & Barrier Assembly
25	Evaporator, Cover
26	4387478 Whirlpool Refrigerator Light Socket
27	WP938213 Whirlpool Refrigerator Power Switch
28	W11679940 Whirlpool Refrigerator Light Bulb Assembly
29	Gasket
30	W11624204 Whirlpool Screw
32	Air Duct
33	Screw, 8 x 1-1/4 (3)
33	Screw, (Repair) 10 x 1 1/4
36	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
37	Fan Blade
38	Fan, Bracket Double
40	Bracket, Fan Mounting (Single)
42	Grommet (3)
43	WP489128 Whirlpool Refrigerator Screw
44	Expansion Clip
45	Air Baffle (2)
46	Gasket, (L.S) Evaporator Cover
47	Gasket, (R.S) Evaporator Cover
48	Screw
49	Cap, Screw
51	Stud
52	Screw
53	Deflector
54	Fitting, Drain
55	WPL 981148
56	Extension, Drain Fitting
57	Screw, 8-32 x 1/2
58	Cup, Drain Extension
59	Drain Pan
60	Gasket, Drain Pan
61	Cover, Tub Entry
63	Cover, Tube
64	WP488729 Whirlpool Refrigerator Door Screw
65	606755 Whirlpool Refrigerator Bag
65	511873 Whirlpool Refrigerator Paint
65	Almond (Uncut)
65	72032 Whirlpool Touch Up Paint Black
65	WP72107 Whirlpool Touchup
65	799344 Whirlpool Refrigerator Paint
65	72017 Whirlpool Appliance Touch-Up Paint White
65	212643 Whirlpool Refrigerator Permagum Sealer
65	876370 Whirlpool Refrigerator Insulation
65	WPL 876029
65	WPL 799833
65	Enamel, Black (1 Qt. Uncut)
65	CEMENT, ALUMILASTIC (1 1/4 OZ.)
65	TAPE, VINYL (3/4 X 108“)
65	Screw Grommet
65	WP542638 Whirlpool Refrigerator Grease
65	WP505587 Whirlpool Refrigerator Sealer
65	WP503695 Whirlpool Refrigerator Sealer
65	Torx Key
