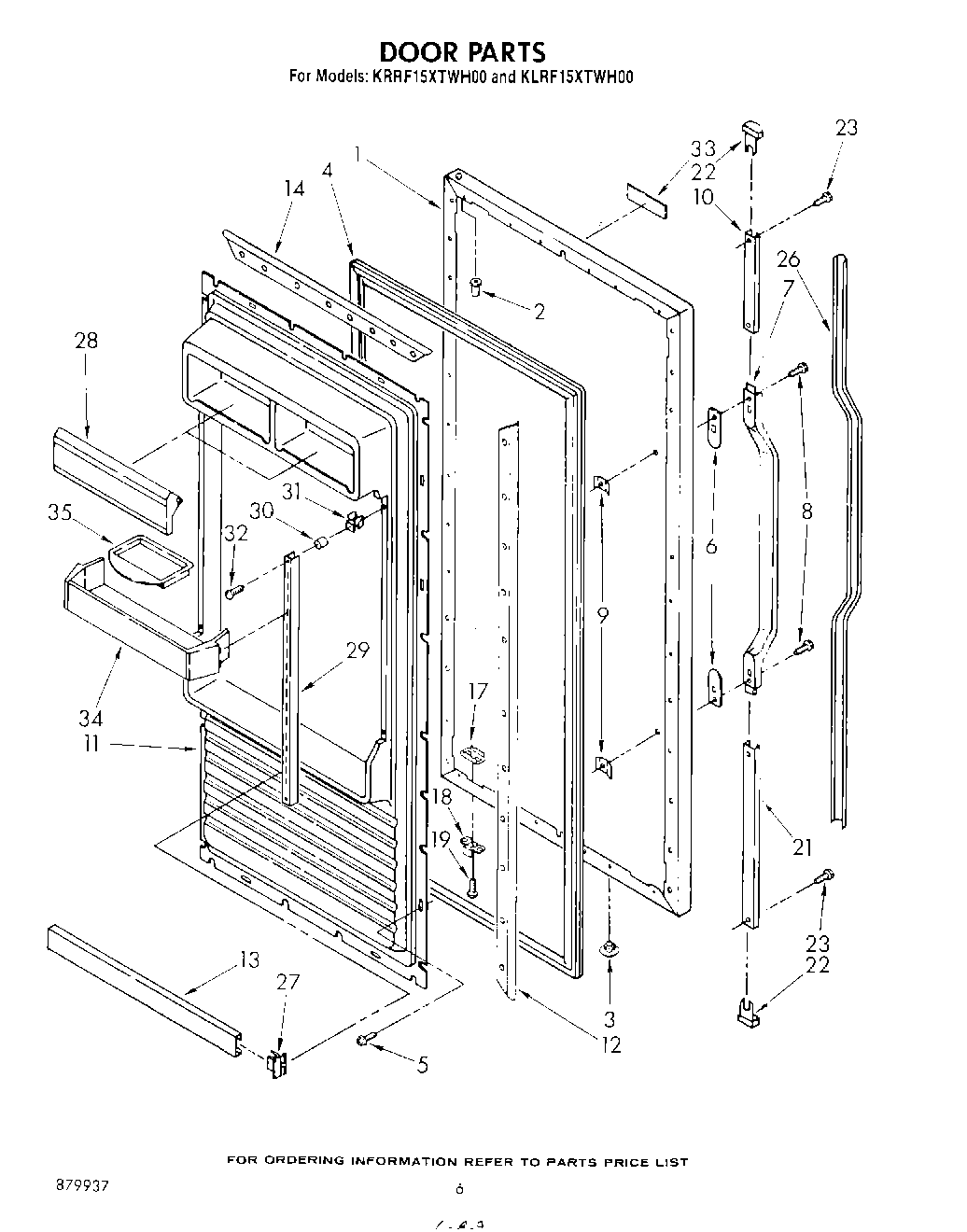

KLRF15XTWH00 04 – DOOR

Products

Position	Product
1	Freezer Door Panel R.H. (Almond)
1	Freezer Door Panel R.H. (White)
1	Freezer Door Panel R.H. (Almond Freezer Door Panel L.H.)
1	Freezer Door Panel R.H. (White)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2) (Almond)
3	Hole Plug (2)
4	2188439A Whirlpool Refrigerator Door Gasket
5	WP489069 Whirlpool Compactor Screw
5	SCREW
6	Spacer, Handle
7	Handle
8	WP488729 Whirlpool Refrigerator Door Screw
9	Screw Anchor (2)
10	Retainer, Insert
11	Panel, Interior Door
12	Retainer Side, Gasket
13	Trim, Door Shelf
14	Retainer, Top & Bottom (2)
17	W10833053 Whirlpool Refrigerator Plate
18	Bracket, Door Stop
19	WP488921 Whirlpool Refrigerator Screw
19	Screw (Repair)
21	Retainer, Insert
22	End Cap (2)
23	Screw, 10-32 x 5/8
26	Insert, Handle
27	Retainer, Door Trim (2)
28	Door, Butter
29	Ladder, Door (2)
30	Spacer, Shelf
31	Expansion Clip
32	Screw, 8-15 x 1 1/4 (8)
33	Insert, Nameplate
34	Door Shelf,
