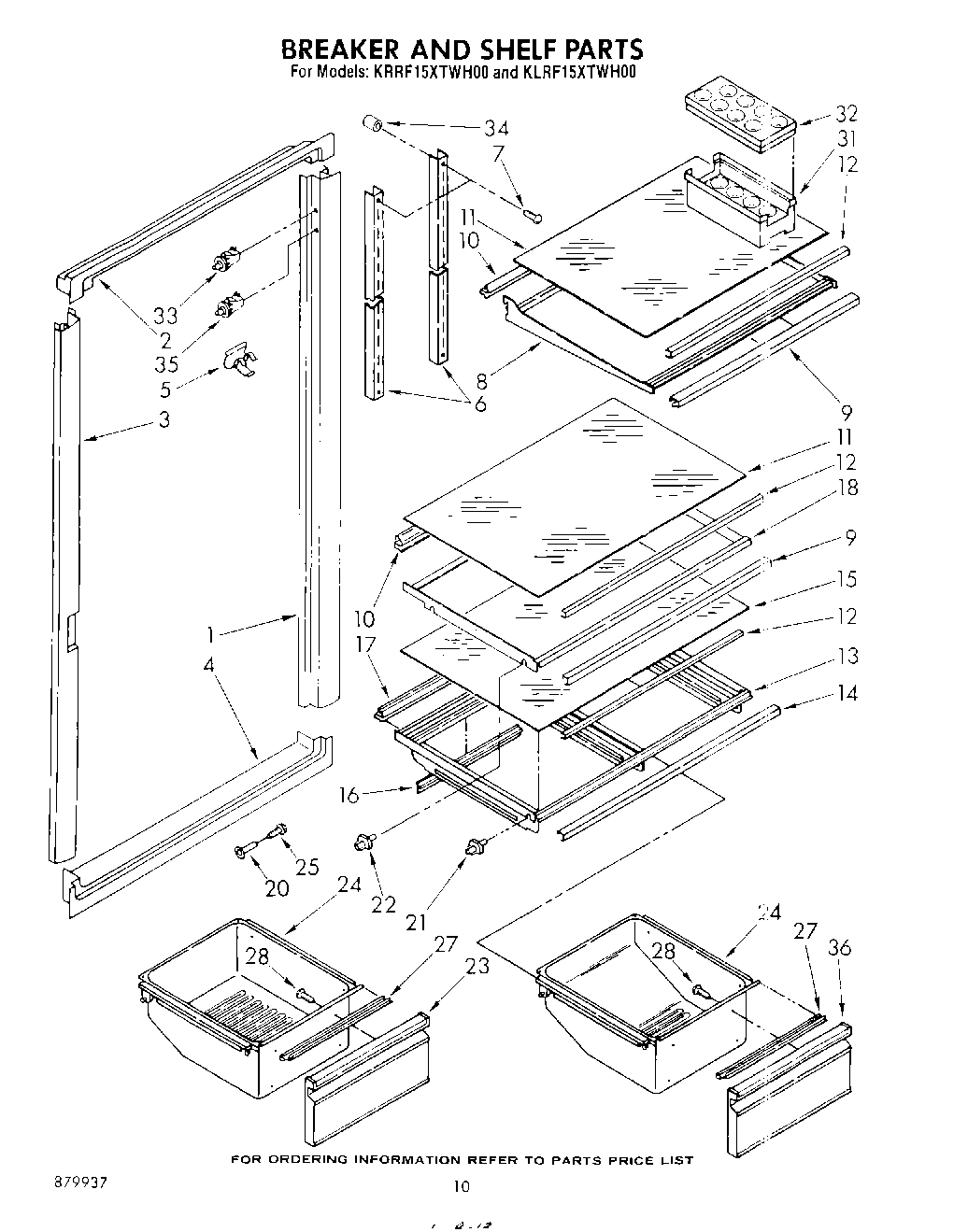

KLRF15XTWH00 06 – BREAKER AND SHELFadmin2025-04-26T11:59:39+00:00KLRF15XTWH00 06 – BREAKER AND SHELF
Products
| Position | Product |
|---|
| 1 | Breaker Trim (R.S) |
| 1 | Breaker, R.S. |
| 2 | Breaker, Top |
| 3 | Breaker Trim (L.S) (With Switch Holes) |
| 3 | Breaker, L.S. |
| 4 | Breaker, Refrigerator (Bottom) |
| 5 | Breaker, Trim Clip |
| 6 | Shelf Ladder (2) |
| 7 | Screw, 8 x 1-1/4 (3) |
| 8 | Shelf, Cantilever |
| 9 | Trim, Shelf Front |
| 10 | Reflector, Glass Shelf |
| 11 | Glass, Cantilever Shelf |
| 12 | Shelf Gasket, Glass |
| 13 | Cover Frame (2) |
| 14 | Trim, Frame (2) |
| 15 | Glass, Cover (2) |
| 16 | Gasket, Rear (2) |
| 17 | Reflector, Glass Shelf (2) |
| 18 | Shelf, Fixed |
| 20 | Stud, Shelf |
| 21 | Stud, Shelf (4) |
| 22 | Stud, Fixed Shelf |
| 23 | Front Pan, Crisper |
| 24 | Pan (4) |
| 25 | Screw, 8-15 x 1 |
| 27 | Front Pan, Gasket (4) |
| 28 | Screw (Repair) |
| 28 | WP488729 Whirlpool Refrigerator Door Screw |
| 31 | Egg Container, Bottom |
| 32 | Egg Container, Top |
| 33 | Switch, Light |
| 34 | Spacer Ground |
| 35 | Fan Motor, Switch |
| 36 | Front, Meat Pan |
