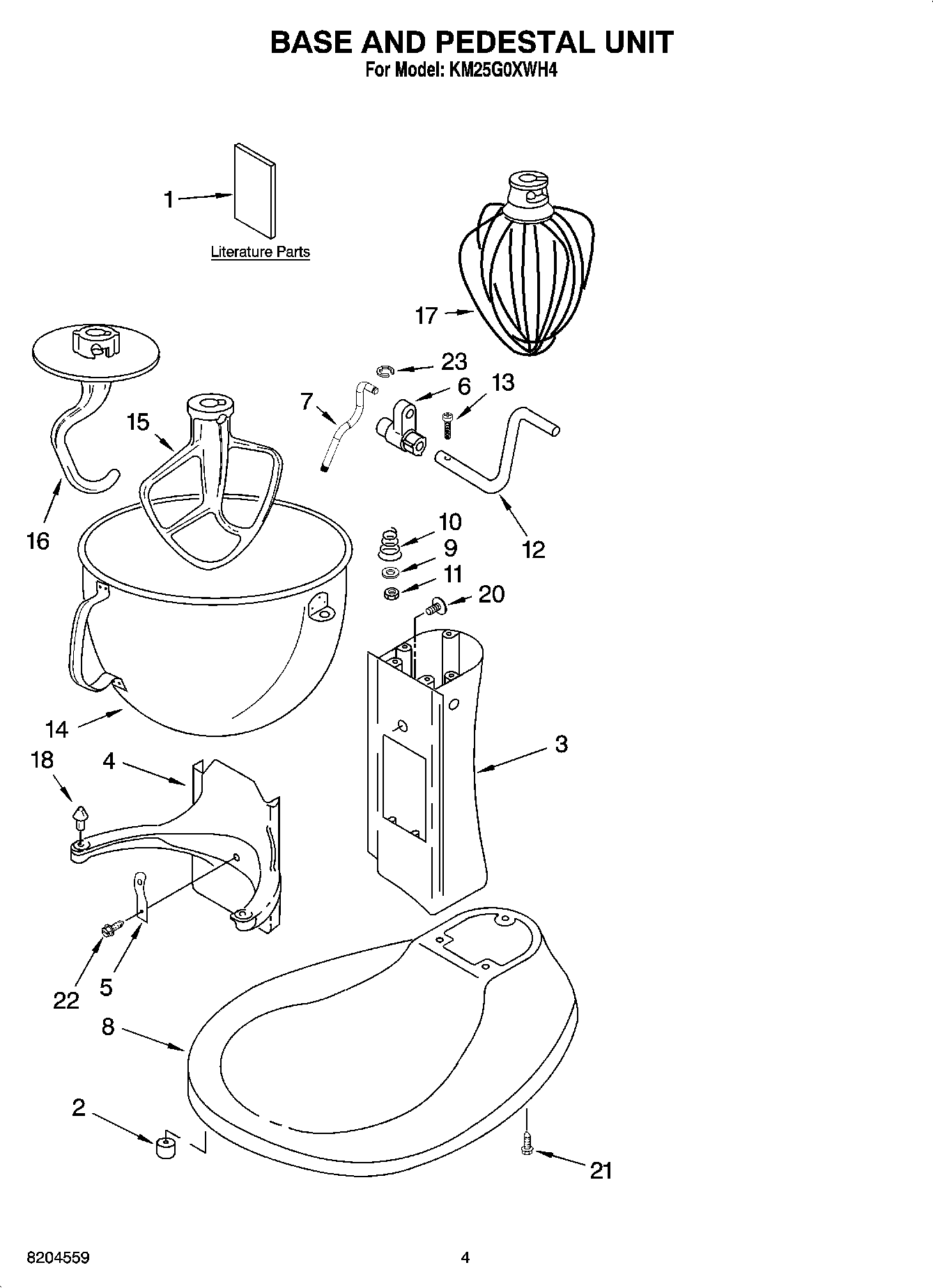

KM25G0XWH4 02 – BASE AND PEDESTAL UNIT ACCESSORY PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Repair Parts List)
28211628 Whirlpool Foot Assembly
39703673 Whirlpool Column
4Bowl Support and Pins (White)
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
89703690 Whirlpool Base
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP3400814 Whirlpool Screw
14Bowl (5 Qt)
15W10807813 Whirlpool Mixer Beater
16WPW10674622 Whirlpool Dough Hook
173177259 Whirlpool Wire Whip
18WP240185 Whirlpool Bowl Retaining Pin
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23FOOD GRINDER (FG-A)
2367500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
23OPTIONAL ATTACHMENTS, ACCESSORIES AND SERVICE ITEMS
23JUICER (JE)
23CAN OPENER (CO)
23Food Tray (FT)
23WP9703307 Whirlpool Ring-C Assembly
23ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
23Grain Mill (GM-A)
23FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
23FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
23SAUSAGE STUFFER KIT (SSA)
23PASTA MAKER PLATES (SNPA)
23W11200218 Whirlpool Grease Filter
23PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
