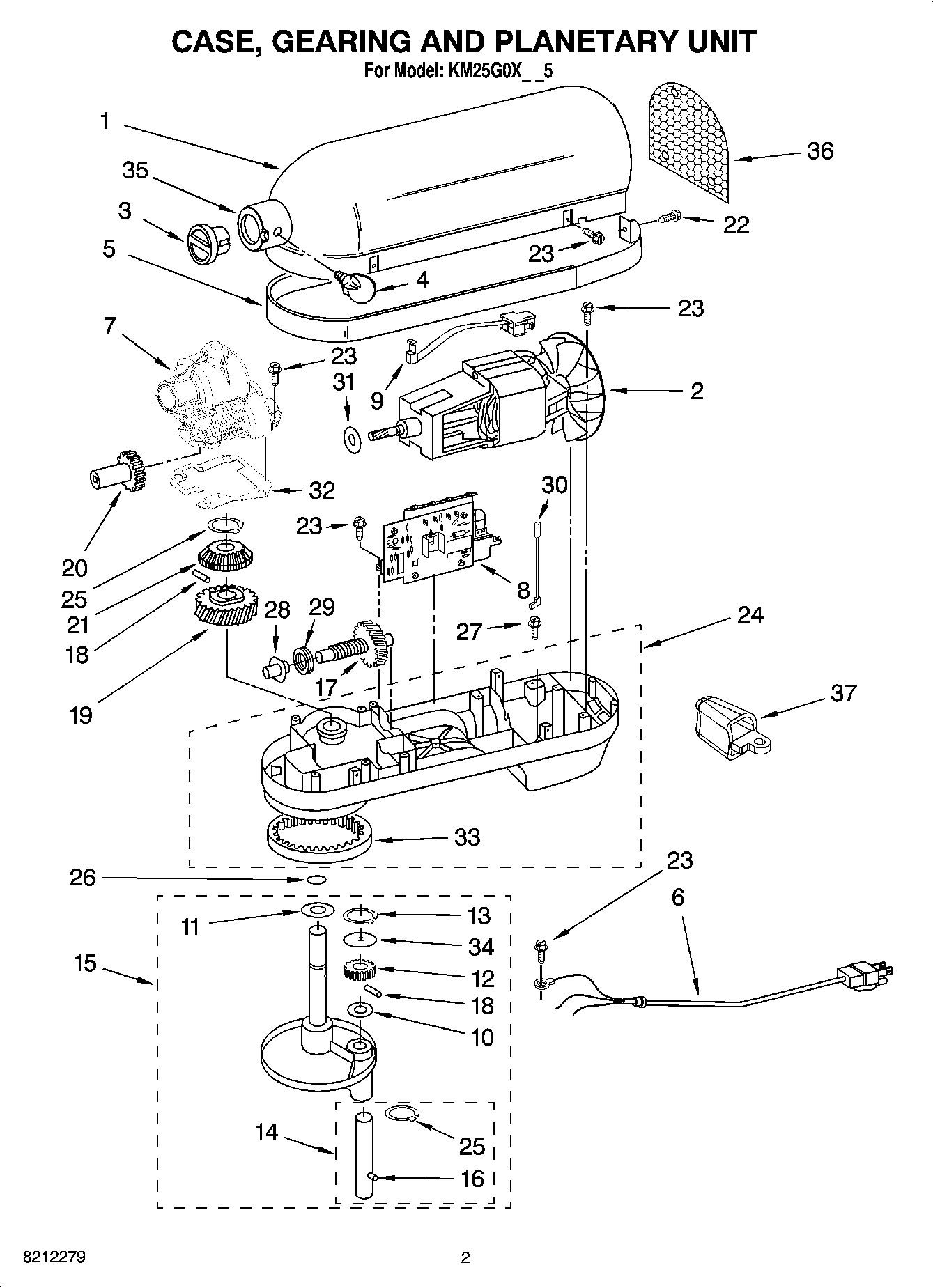

KM25G0XWH5 01 – CASE, GEARING AND PLANETARY UNIT

KM25G0XWH5 01 – CASE, GEARING AND PLANETARY UNIT

Written by

in

KM25G0XWH5 01 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
19703311 Whirlpool Housing Assembly
2WPW10247536 Whirlpool Motor
3Cap, Attachment Hub
4WP9709194 Whirlpool Black Thumb Screw
5Band, Trim
6Power Cord
78212396 Whirlpool Housing
9WP9706648 Whirlpool Speed Control
10WP9706090 Whirlpool Washer
11W11084660 Whirlpool Washer
12W11133646 Whirlpool Gear
13WP9703438 Whirlpool Snap Retaining Ring
14WP9708191 Whirlpool Agitator Shaft
15WP9708172 Whirlpool Planetary Assembly
16W11664709 Whirlpool Groove Pin
17WP9709231 Whirlpool Gear Assembly
18WP9707223 Whirlpool Dowel Pin
19GEAR
21W11192795 Whirlpool Gear
22W10853069 Whirlpool Screw
23WP3400814 Whirlpool Screw
24Lower Gear Case
25WP9703680 Whirlpool Retainer Ring
26O RING
27W10913677 Whirlpool Screw
28WPW10170081 Whirlpool Bearing
28WPW10170080 Whirlpool Bearing Assembly
29WP9703445 Whirlpool Bearing Kit Thrust
309706036 Whirlpool Wire Assembly
31WP9706247 Whirlpool Seal
32WP9709511 Whirlpool Microwave High Voltage Transformer
33W11181966 Whirlpool Gear
34W10854966 Whirlpool Washer
35WP9703315 Whirlpool Hub Cap
369706814 Whirlpool Screen
37Guard
