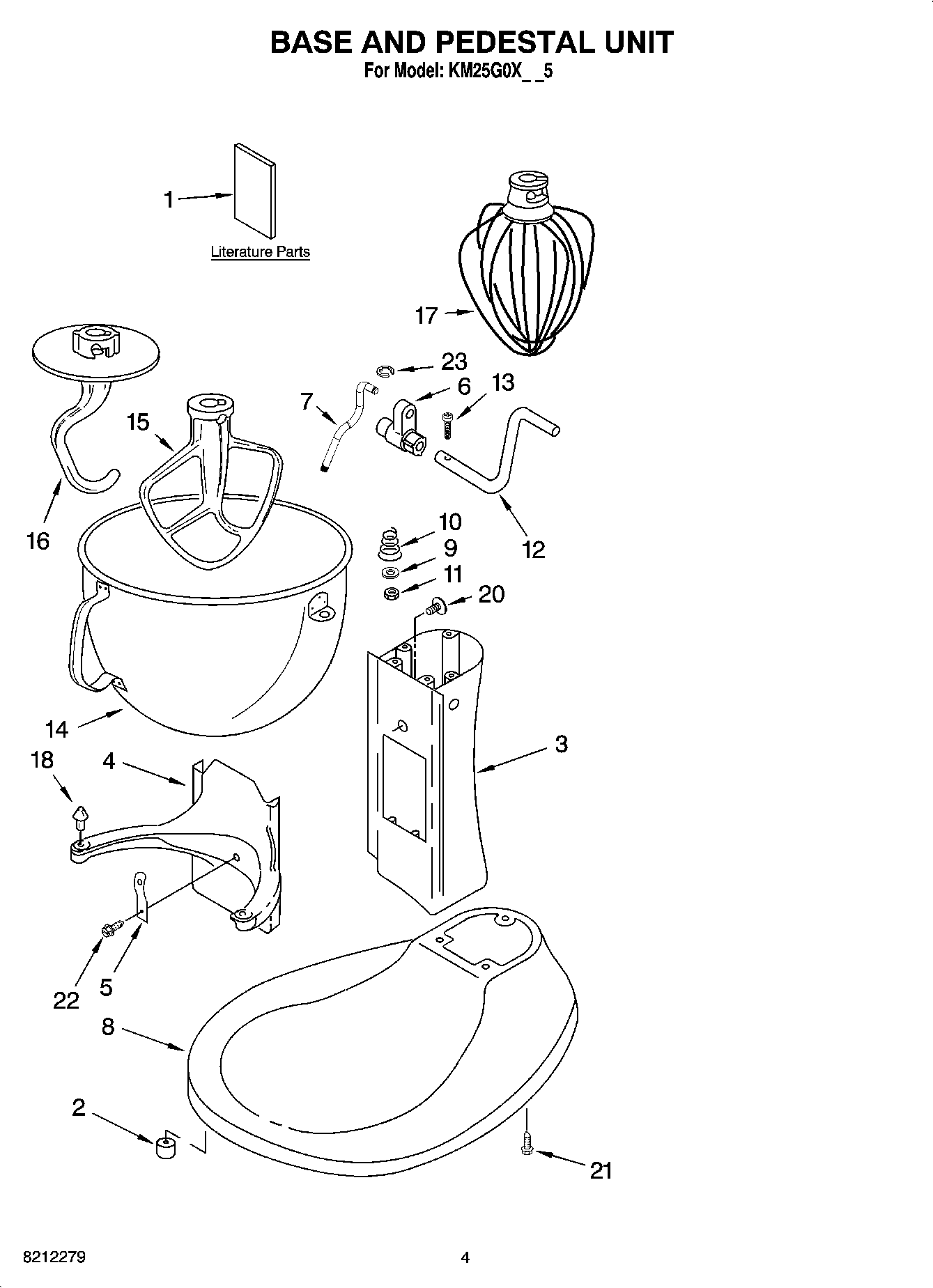

KM25G0XWH5 02 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	MAKER, ICE CREAM (KICA0WH)
	Grain Mill, KGMA
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	SAUSAGE STUFFER KIT (SSA)
	PASTA MAKER PLATES (SNPA)
	W11200218 Whirlpool Grease Filter
	Food Tray (FT)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	Following Parts Not Illustrated
1	Repair Parts List
1	Use & Care Guide
2	WP9708649 Whirlpool Foot
3	9703673 Whirlpool Column
4	Bowl Support and Pins (White)
5	WPW10504114 Whirlpool Clip
6	WP9706885 Whirlpool Lift Arm Assembly
7	W11376364 Whirlpool Lift Rod
8	9703690 Whirlpool Base
9	Washer
10	4159622 Whirlpool PP Spring
11	8533907 Whirlpool Dishwasher Nut
12	W11376371 Whirlpool Handle Assembly
13	WP3400814 Whirlpool Screw
14	Bowl (5 Qt)
15	W10807813 Whirlpool Mixer Beater
16	WPW10674622 Whirlpool Dough Hook
17	3177259 Whirlpool Wire Whip
18	WP240185 Whirlpool Bowl Retaining Pin
20	Cam, Adjusting
21	W10913677 Whirlpool Screw
22	W10861883 Whirlpool Screw
23	WP9703307 Whirlpool Ring-C Assembly
