KM487LXM0 03 – DOOR PARTS
Written by
in

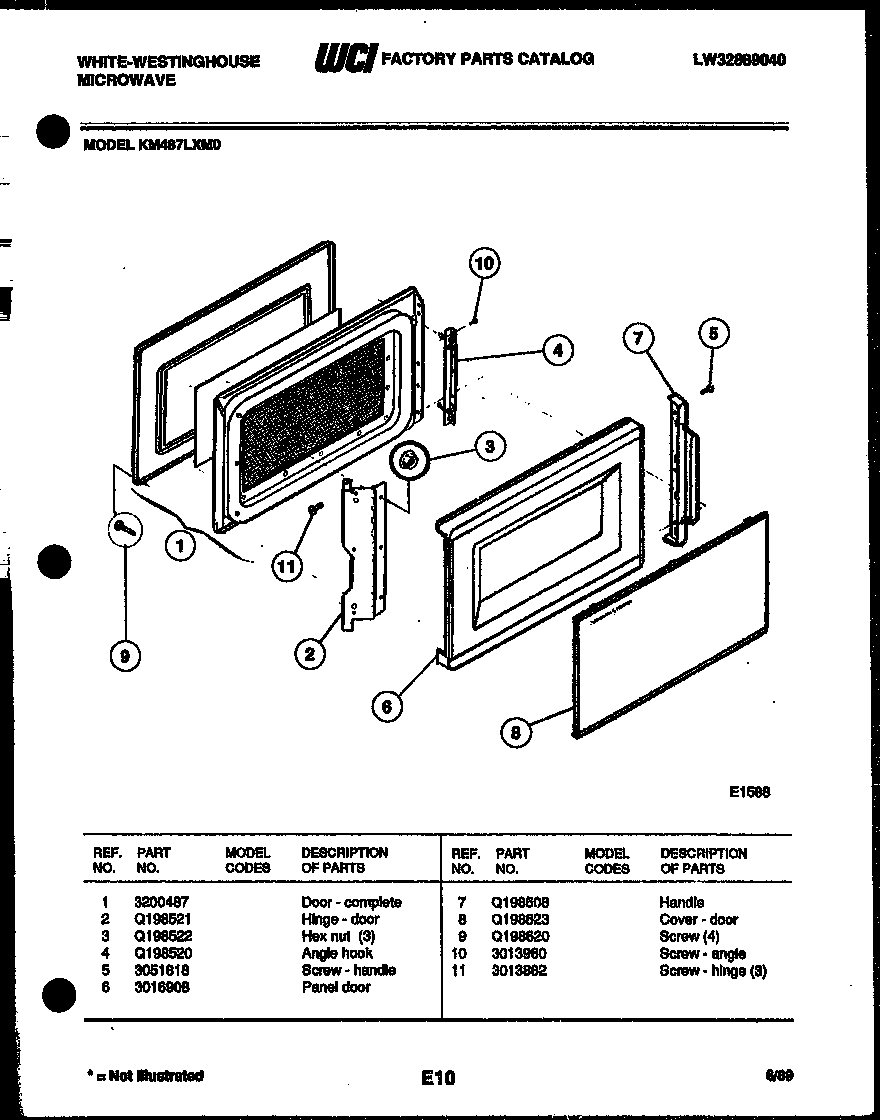

KM487LXM0 03 – DOOR PARTS
Products
Position
Product
1
FRAME – DOOR
2
WCI Q198521
3
WCI Q198522
4
WCI Q198520
5
5303300265 Frigidaire Oven Screw
6
PANEL – DOOR
7
WCI Q198508
8
WCI Q198623
9
WCI Q198620
10
SCREW – ANGLE
11
SCREW – HINGE (3)
←
