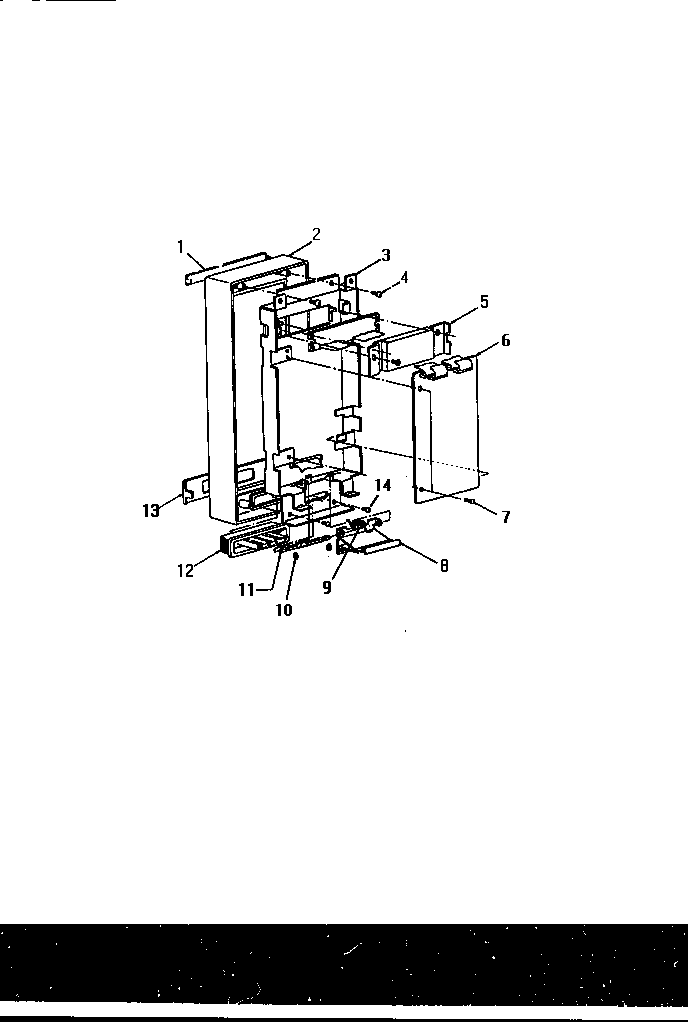

KM750HXM 02 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | PLATE |
| 2 | WCI Q32554913 |
| 3 | WCI Q32502401 |
| 5 | WCI Q32540591 |
| 6 | WCI Q32504206 |
| 7 | WCI Q32597883 |
| 8 | PUSH LEVER |
| 9 | SPRING |
| 10 | E RING |
| 11 | SHAFT |
| 12 | BUTTON, DOOR |
| 13 | PANEL |
| 14 | WCI Q32597906 |
