KM932KXM1 04 – POWER CONTROL

KM932KXM1 04 – POWER CONTROL

Written by

in

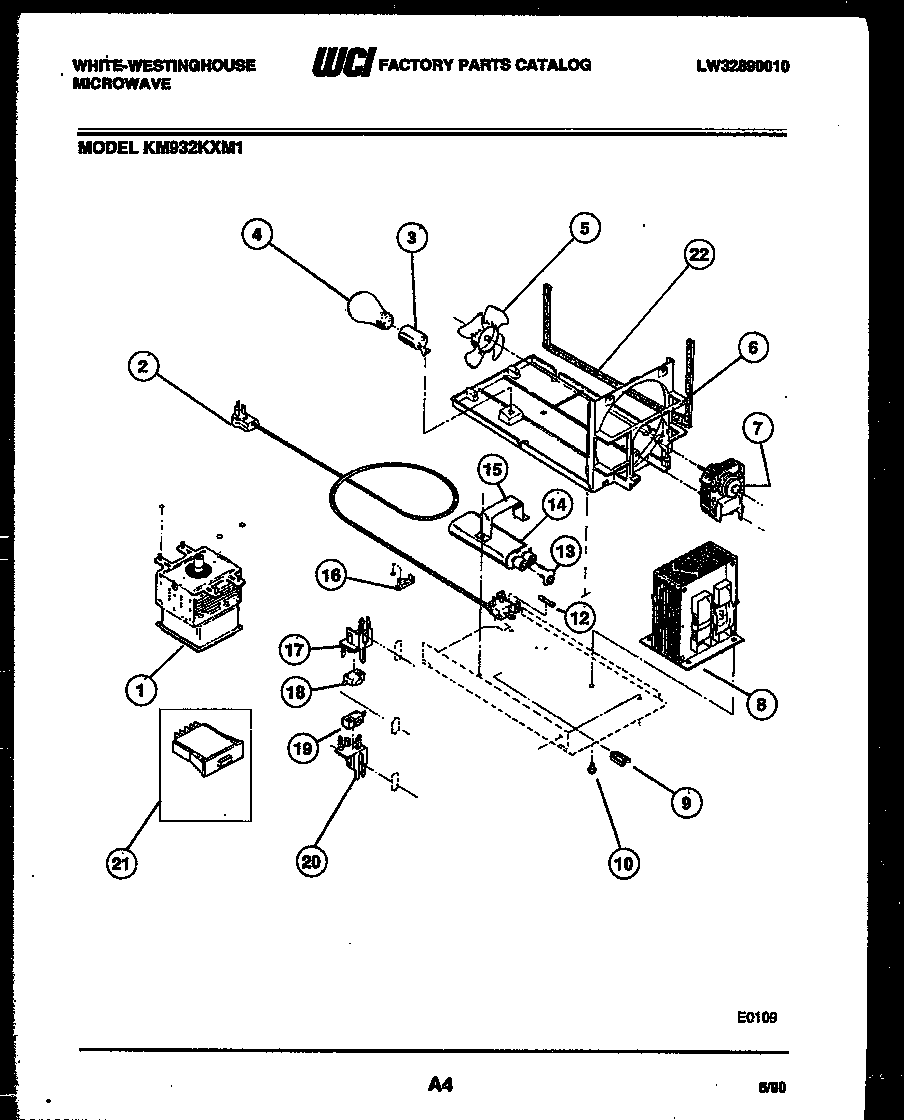

KM932KXM1 04 – POWER CONTROL

Products

PositionProduct
*33242INSULATOR
*33242SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
*33243WCI Q198577
*33243HEX NUT
1WCI 5303206781
2CORD-POWER
3WCI 5303091197
4316538904 Frigidaire Oven Lamp Light
5WCI 5303203192
6DUCT-AIR
7WCI 5308037636
8WCI 5308037626
9CLIP
10SCREW – TRANS (4) (NON-ILLUSTRATED)
12FUSE-20 AMP
13DIODE HIGH VOLTAGE
14WCI 5303011660
15WCI 5303013773
16WCI 5303091280
19WCI 5303203636
20BRACKET (2)
21WCI 5303204635
22SEAL-FOAM CUT TO SIZE
