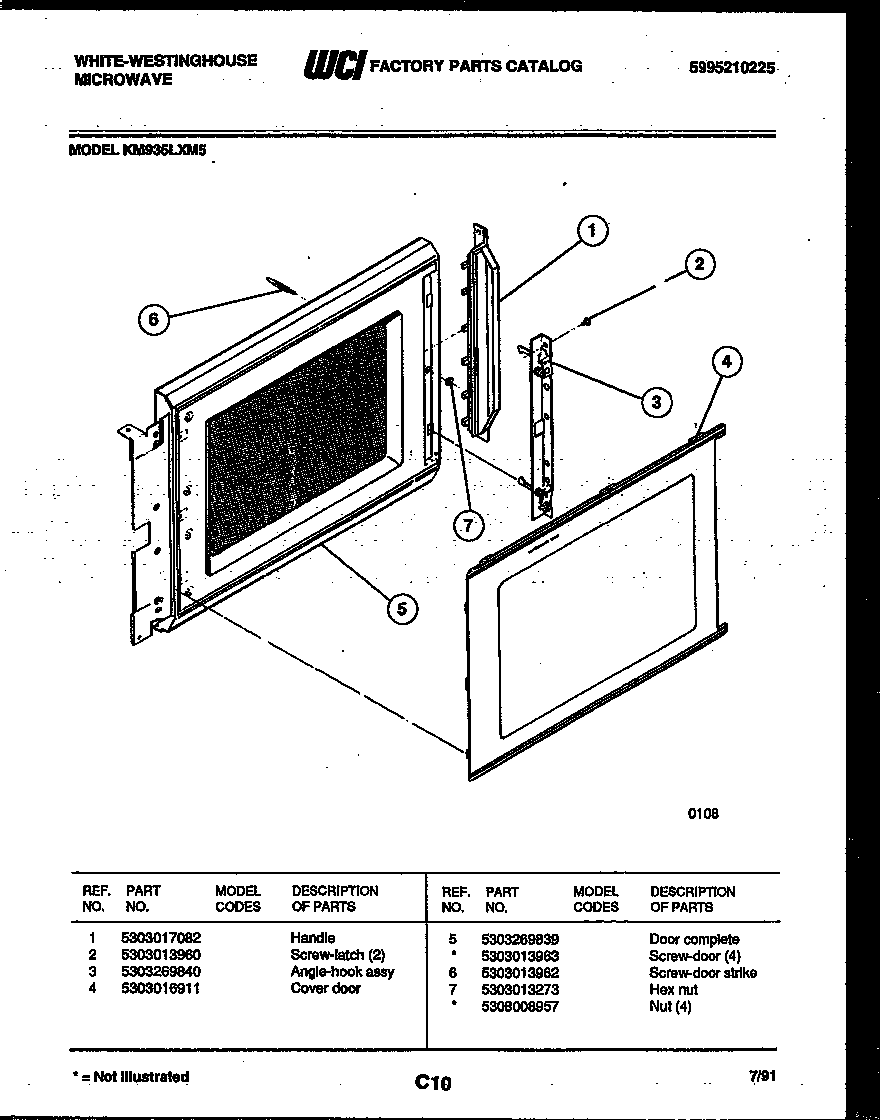

KM935LXM5 03 – DOOR PARTS
Products
| Position | Product |
|---|---|
| 1 | WCI 5303017082 |
| 2 | SCREW-LATCH (2) |
| 3 | WCI 5303269840 |
| 4 | WCI 5303016911 |
| 5A | SCREW-DOOR (4) (NON-ILLUSTRATED) |
| 5 | WCI 5303269839 |
| 6 | SCREW-DOOR STRIKE |
| 7 | HEX NUT |
