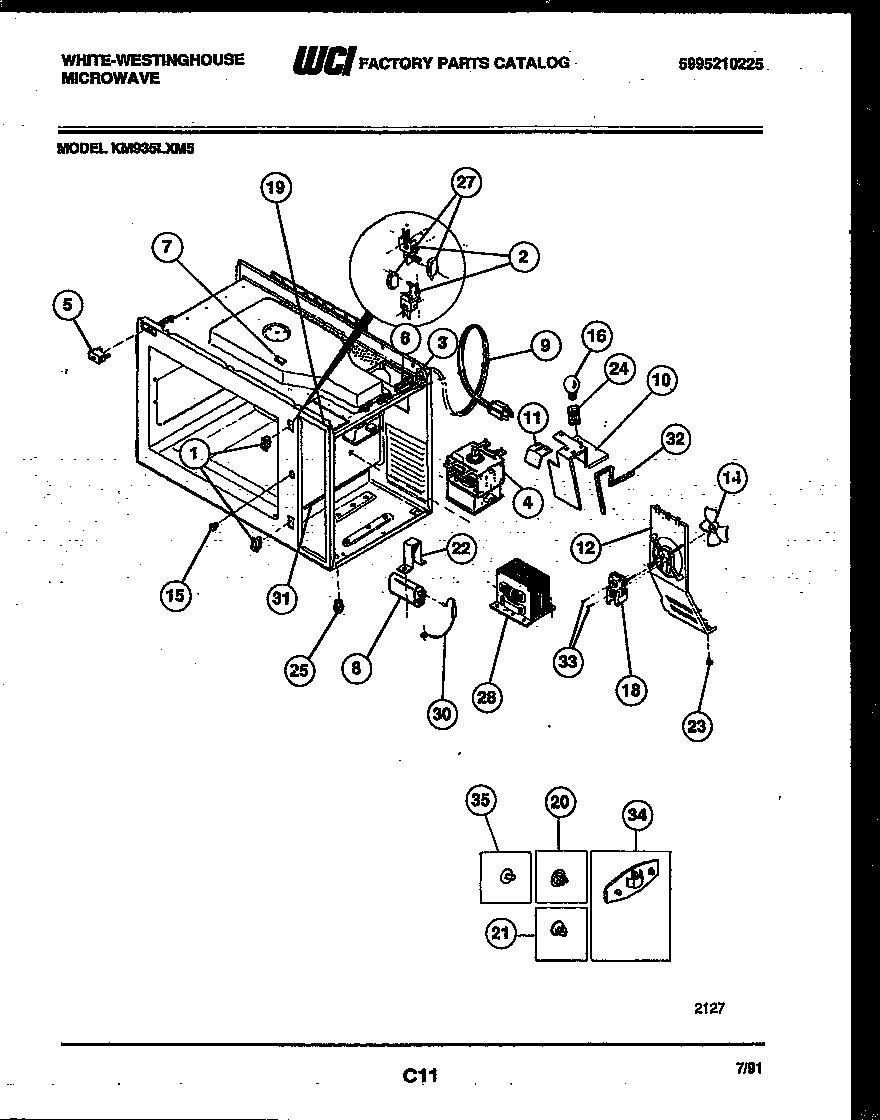

KM935LXM5 04 – FUNCTIONAL PARTS

Products

Position	Product
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	SPACER
8	WCI 5303269608
9	WCI 5303212774
10	WCI 5303269831
11	WCI 5303269832
12	WCI 5303269833
14	WCI 5303269834
15	WCI 5308037644
16	LAMP-120V
18	WCI 5303922053
19	Nut
20	PLUG-BUTTON
21	PLUG-BUTTON TRAY (2)
22	WCI 5303013771
23	WCI 5303269846
24	SOCKET, OVEN LAMP, 120V
25	FOOT (4)
27	WCI 5303203636
28A	WCI 5303269843
28	WCI 5303212811
30	WCI 5303269837
30B	SCREW – TRANS (4) (NON-ILLUSTRATED)
30A	HEX NUT
31	WCI 5303212845
32A	WCI 5303017865
32	SEAL-FOAM CUT TO SIZE
33	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
34	PLUG-BUTTON
35	PLUG-BUTTON (8)
