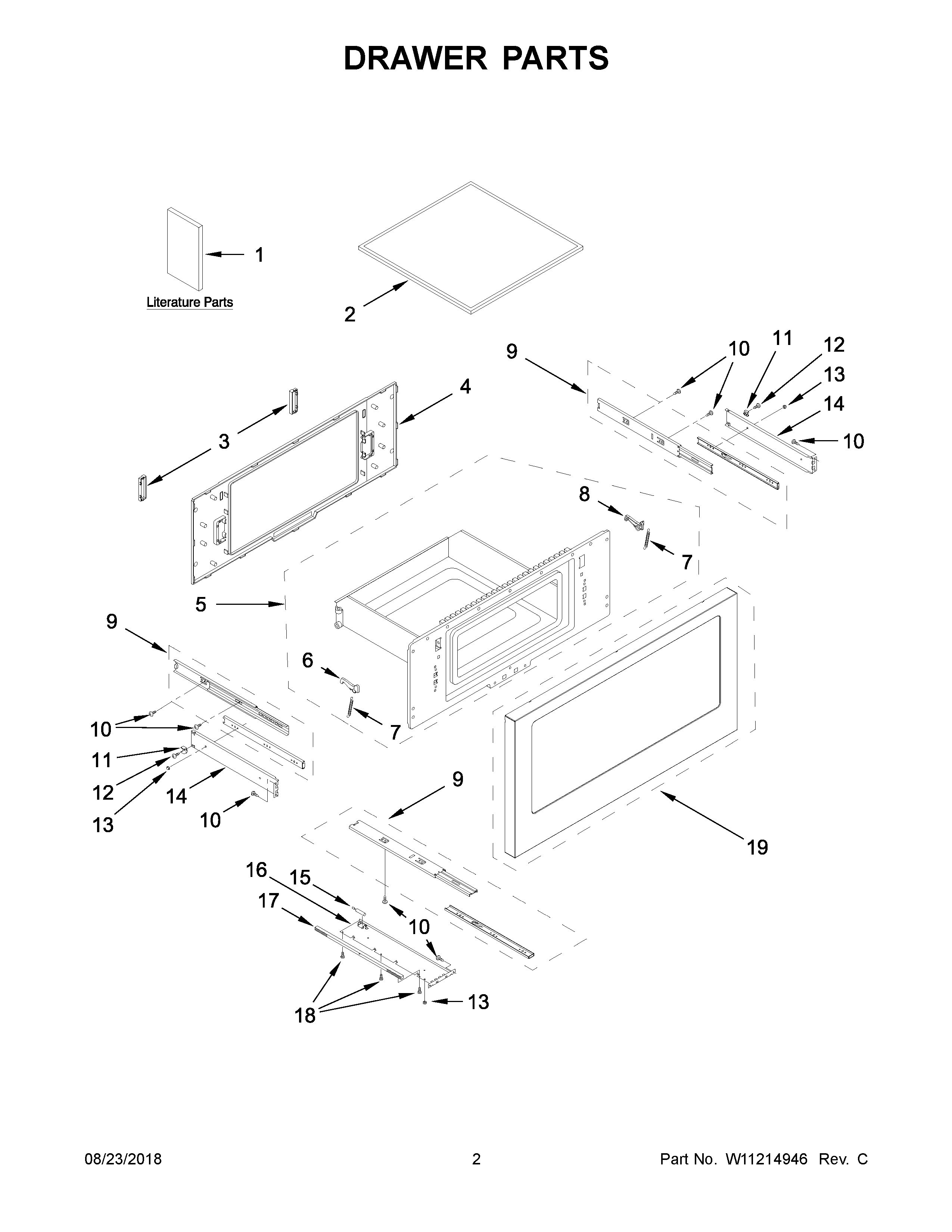

KMBD104GSS0 02 – DRAWER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11199540 Whirlpool Microwave Power Cord
NI	HARNESS, MAIN
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	W11216070 Whirlpool Microwave Cook Tray
3	W11201390 Whirlpool Cover
4	W11201870 Whirlpool Choke Cover
5	W11201862 Whirlpool Microwave Door
8	W11685626 Whirlpool Microwave Door Latch
9	W11672511 Whirlpool Drawer Glide
10	SCREW
11	STOPPER, DOOR
12	SCREW
13	NUT
14	SUPPORT, SIDE
15	W11685617 Whirlpool Piston
16	SUPPORT, BOTTOM
17	GEAR, DRAWER
18	SCREW
19	W11209971 Whirlpool Microwave Outer Door
