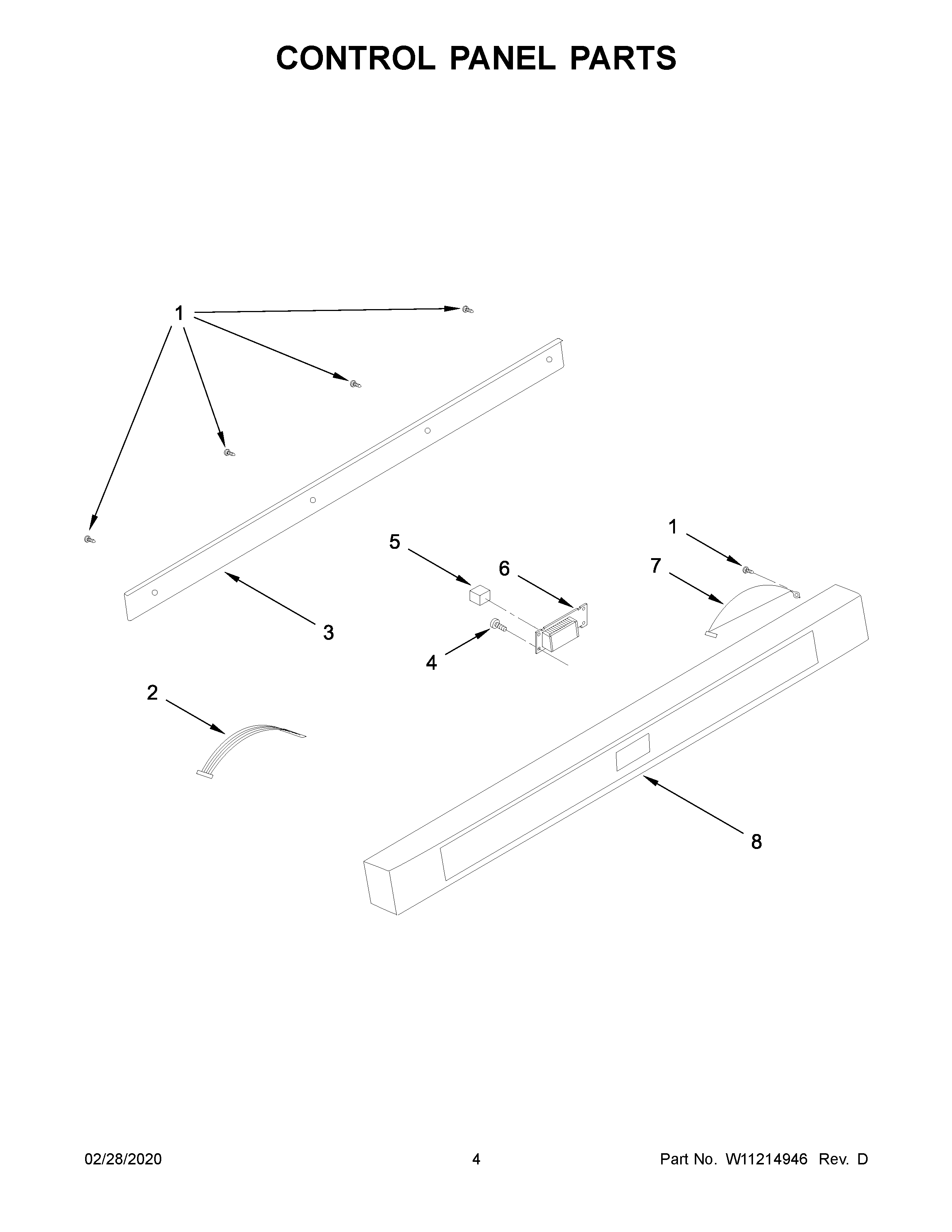

KMBD104GSS00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1WP3400805 Whirlpool Screw Assembly
2W11199895 Whirlpool Microwave Wire Harness
3BRACKET, PANEL
4SCREW
5CUSHION, CONTROL
6W11486764 Whirlpool Console + Core
7WIRE, GROUND
8W11486769 Whirlpool Console + Core
