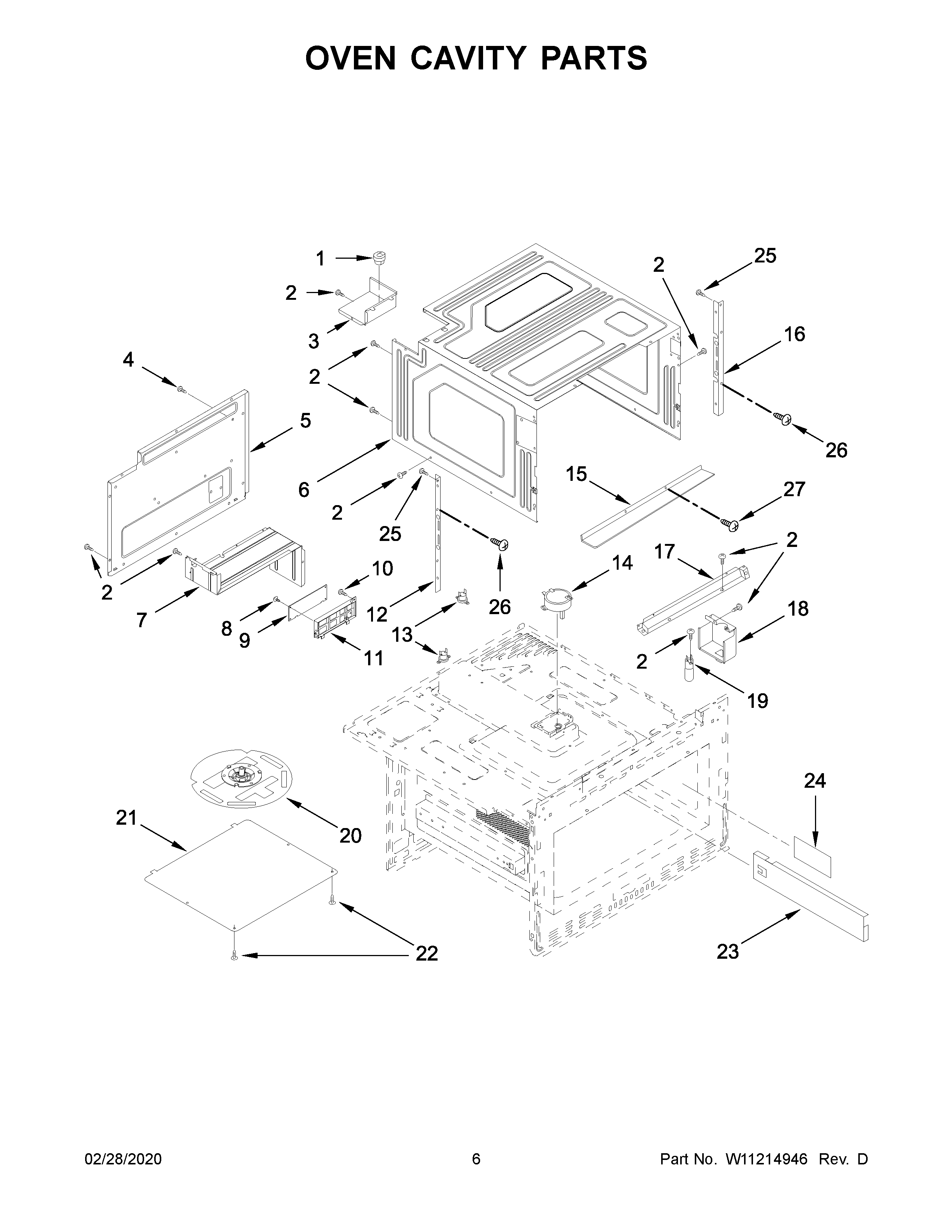

KMBD104GSS00 04 – OVEN CAVITY PARTS

KMBD104GSS00 04 – OVEN CAVITY PARTS

Written by

in

KMBD104GSS00 04 – OVEN CAVITY PARTS

Products

PositionProduct
1BUSHING, POWER CORD
2SCREW
3BRACKET, POWER CORD
4SCREW
5W11201389 Whirlpool Microwave Rear Cover
6W11199812 Whirlpool Microwave Wrapper-Cabinet
7PANEL, PARTITION
8SCREW
9W11445128 Whirlpool Microwave Power Relay
10SCREW
11HOLDER, RELAY
12W11209950 Whirlpool Trim
13W11199547 Whirlpool Microwave Thermostat Fix
14W11199546 Whirlpool Microwave Stir Motor
15W11199858 Whirlpool Deflector Assembly
16W11209951 Whirlpool Trim Assembly
17COVER, FACEPLATE
18COVER, LAMP
19W10278184 Whirlpool Microwave Lamp
20W11201339 Whirlpool Stir Blade
21W11201789 Whirlpool Microwave Stir Cover
22W11201783 Whirlpool Clip
23PANEL, BOTTOM PARTITION
24W11201855 Whirlpool Light Cover
25WP3400805 Whirlpool Screw Assembly
26W11254786 Whirlpool Screw
