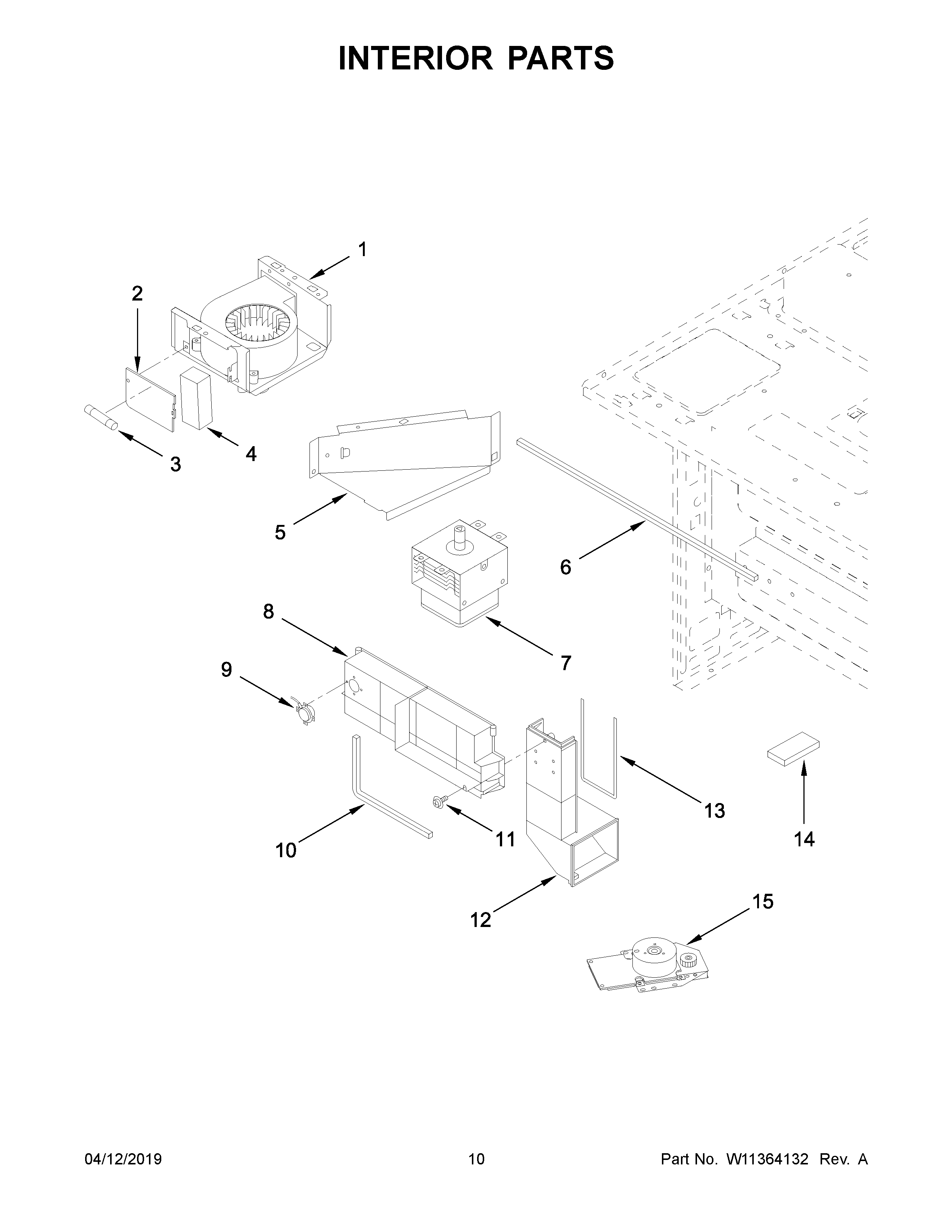

KMBD104GSS01 06 – INTERIOR PARTS

Products

Position	Product
1	W11362533 Whirlpool Fan Motor
2	W11199545 Whirlpool Microwave Filter
3	W11677637 Whirlpool Thermal Fuse
4	CUSHION, FAN MOTOR SUPPORT
5	DUCT, MAGNETRON
6	CUSHION, INLET
7	W11590863 Whirlpool Microwave Magnetron
8	DUCT, SENSOR
9	W10278023 Whirlpool Microwave Sensor
10	CUSHION, DUCT
11	SCREW
12	DUCT, EXHAUST
13	CUSHION, EXHAUST DUCT
14	CUSHION, AIR FLOW
15	W11685618 Whirlpool Gear Assembly
