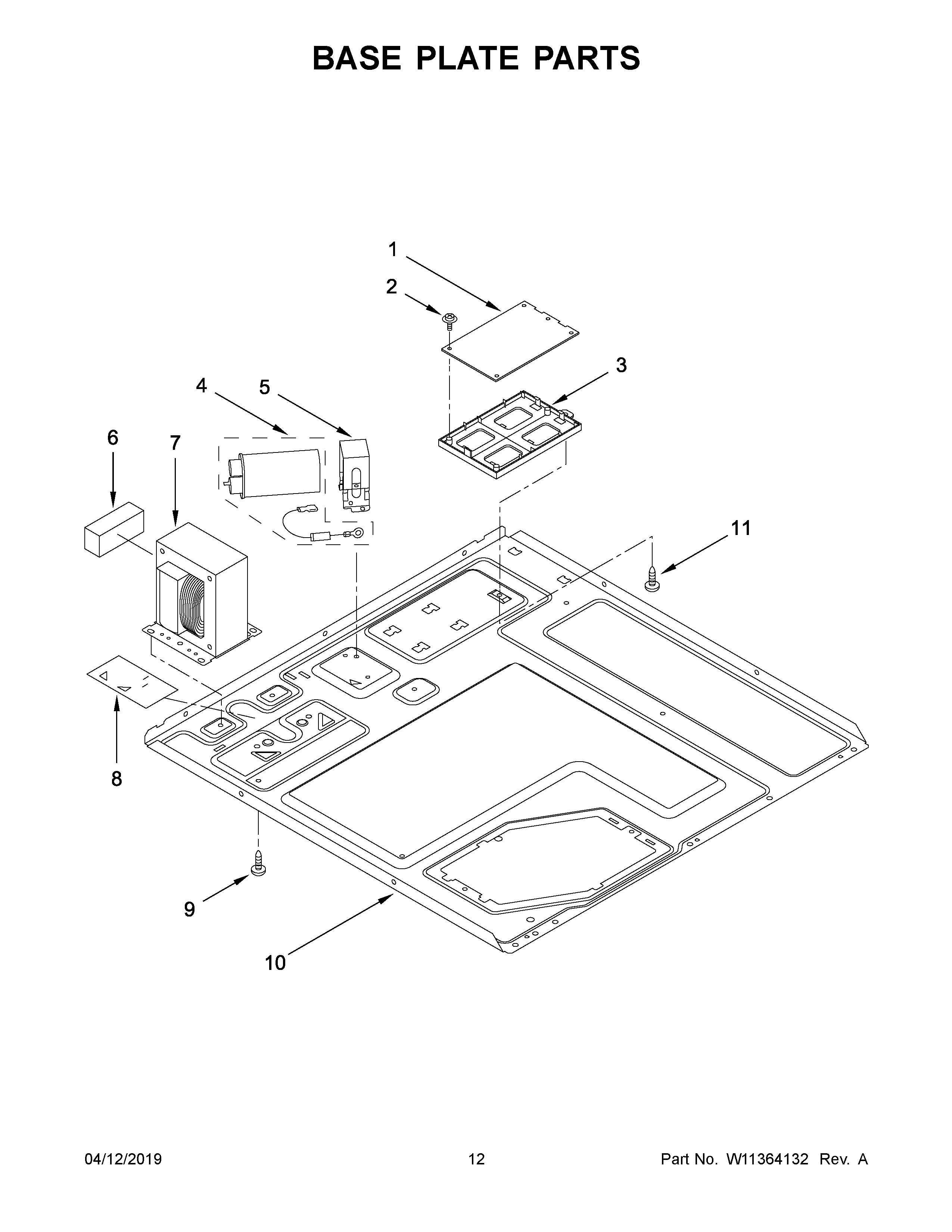

KMBD104GSS01 07 – BASE PLATE PARTS

Written by

Products

Position	Product
1	W11486781 Whirlpool Console + Core
2	SCREW
3	HOLDER, CONTROL
4	W11596133 Whirlpool Microwave Capacitor
5	BRACKET, CAPACITOR
6	CUSHION, TRANSFORMER
7	W11610132 Whirlpool Microwave Transformer
8	COVR-INLET
9	SCREW
10	W11201391 Whirlpool Base
11	SCREW
