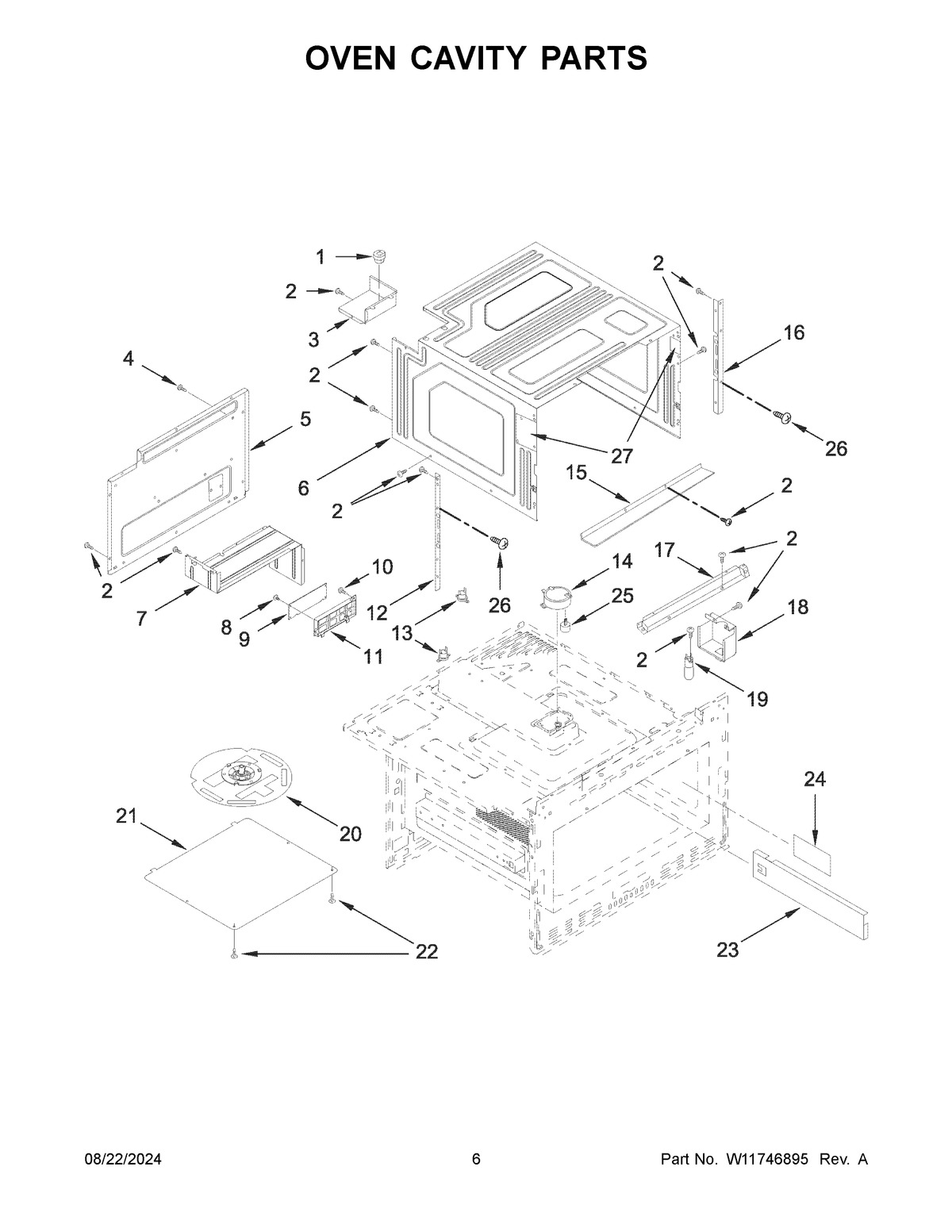

KMBD104GSS02 04 – OVEN CAVITY PARTS

Products

Position	Product
1	BUSHING, POWER CORD
2	SCREW
3	BRACKET, POWER CORD
4	SCREW
5	W11201389 Whirlpool Microwave Rear Cover
6	W11199812 Whirlpool Microwave Wrapper-Cabinet
7	PANEL, PARTITION
8	SCREW
9	W11445128 Whirlpool Microwave Power Relay
10	SCREW
11	HOLDER, RELAY
12	W11209950 Whirlpool Trim
13	W11199547 Whirlpool Microwave Thermostat Fix
14	W11362534 Whirlpool Microwave Stir Motor
15	BRACKET, CONTROL PANEL
16	W11209951 Whirlpool Trim Assembly
17	COVER, FACEPLATE
18	COVER, LAMP
19	W10278184 Whirlpool Microwave Lamp
20	W11362539 Whirlpool Stir Blade
21	W11201789 Whirlpool Microwave Stir Cover
22	W11362541 Whirlpool Clip
23	PANEL, BOTTOM PARTITION
24	W11201855 Whirlpool Light Cover
25	SHAFT, STIRRER MOTOR
26	W11254786 Whirlpool Screw
27	COVER, LATCH
