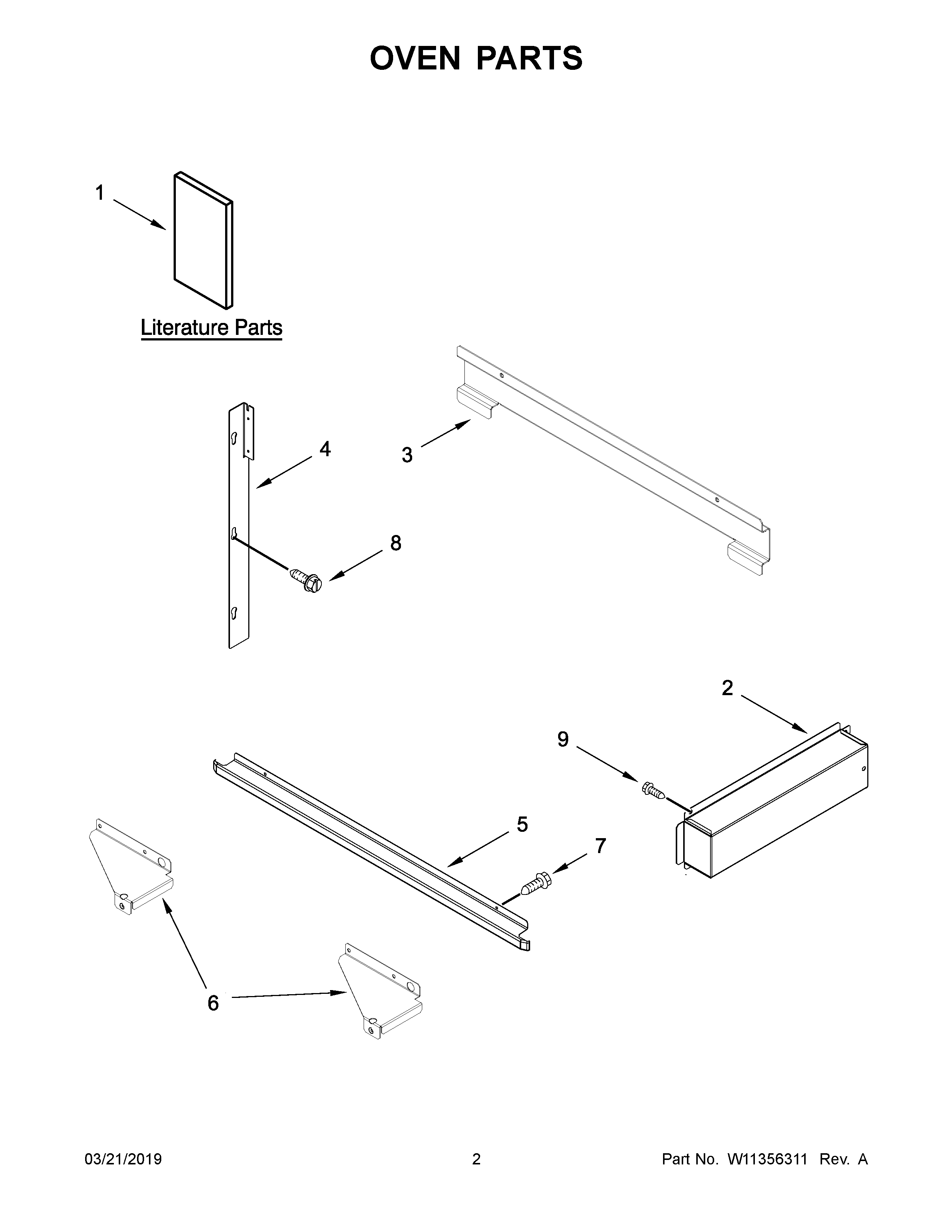

KMBP100EBS02 02 – OVEN PARTS

Products

Position	Product
NI	W11356986 Whirlpool Wire Harness
NI	W11356992 Whirlpool Conduit
NI	W11356977 Whirlpool Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11449277 Whirlpool Microwave Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11325605 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
1B	SHEET, TECH
2	W10239155 Whirlpool Microwave Cover
3	W11673269 Whirlpool Support Bracket
4A	W10416255 Whirlpool Mounting Rail
4	W10416256 Whirlpool Rail Mounting Assembly
5	W11359268 Whirlpool Trim
6	W10239156 Whirlpool Microwave Support
6A	W10239157 Whirlpool Microwave Support
7	WP3400832 Whirlpool Screw
8	SCREW
9	SCREW
