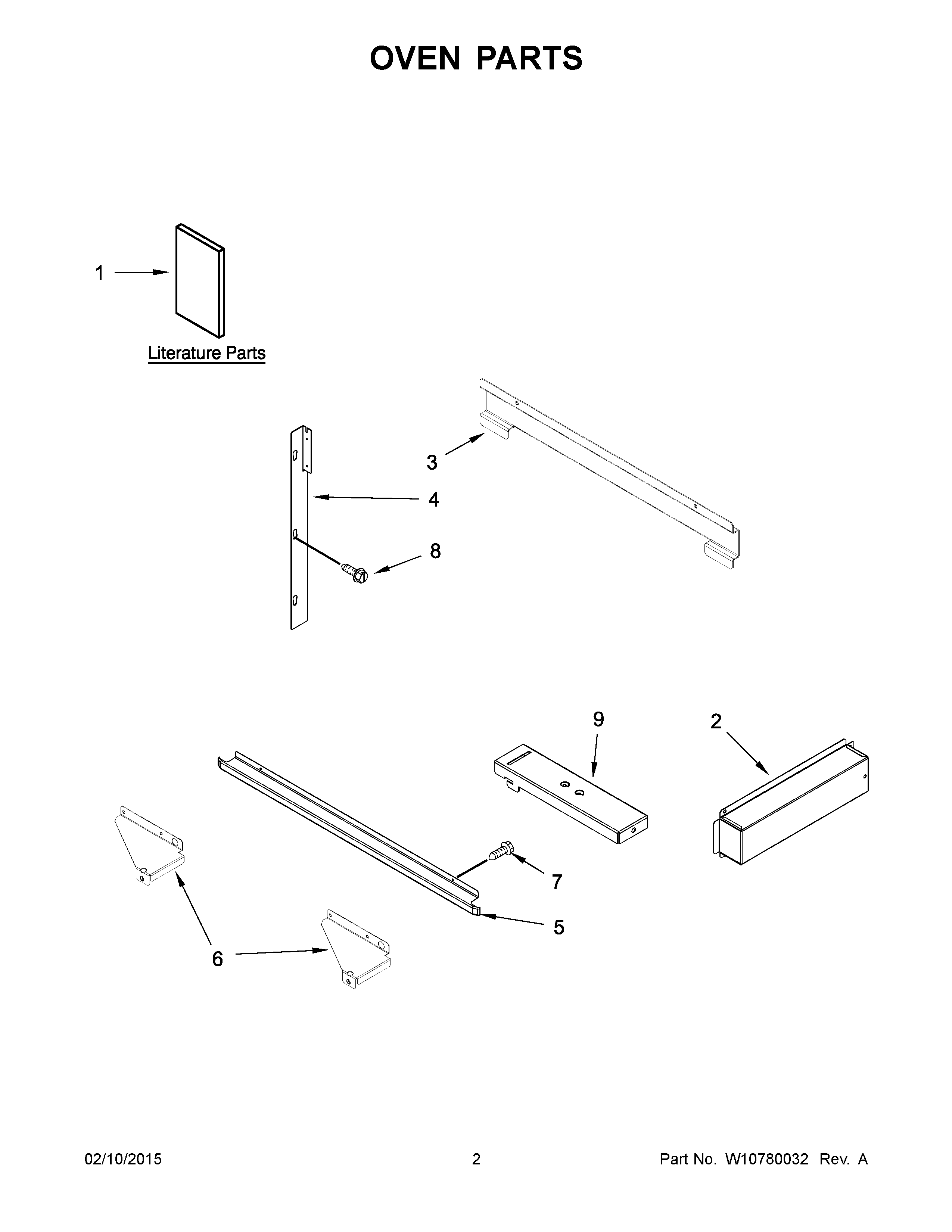

KMBP100ESS00 02 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	W11356986 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	W11356992 Whirlpool Conduit
1B	SHEET, TECH
1	GUIDE, USE & CARE (MICROWAVE OVEN)
1A	INSTRUCTIONS, INSTALLATION
2	W10239155 Whirlpool Microwave Cover
3	W11673269 Whirlpool Support Bracket
4A	W10416255 Whirlpool Mounting Rail
4	W10416256 Whirlpool Rail Mounting Assembly
5	W11359268 Whirlpool Trim
6	W10239156 Whirlpool Microwave Support
6A	W10239157 Whirlpool Microwave Support
7	WP3400832 Whirlpool Screw
8	SCREW
9	W10323725 Whirlpool Mounting Plate
