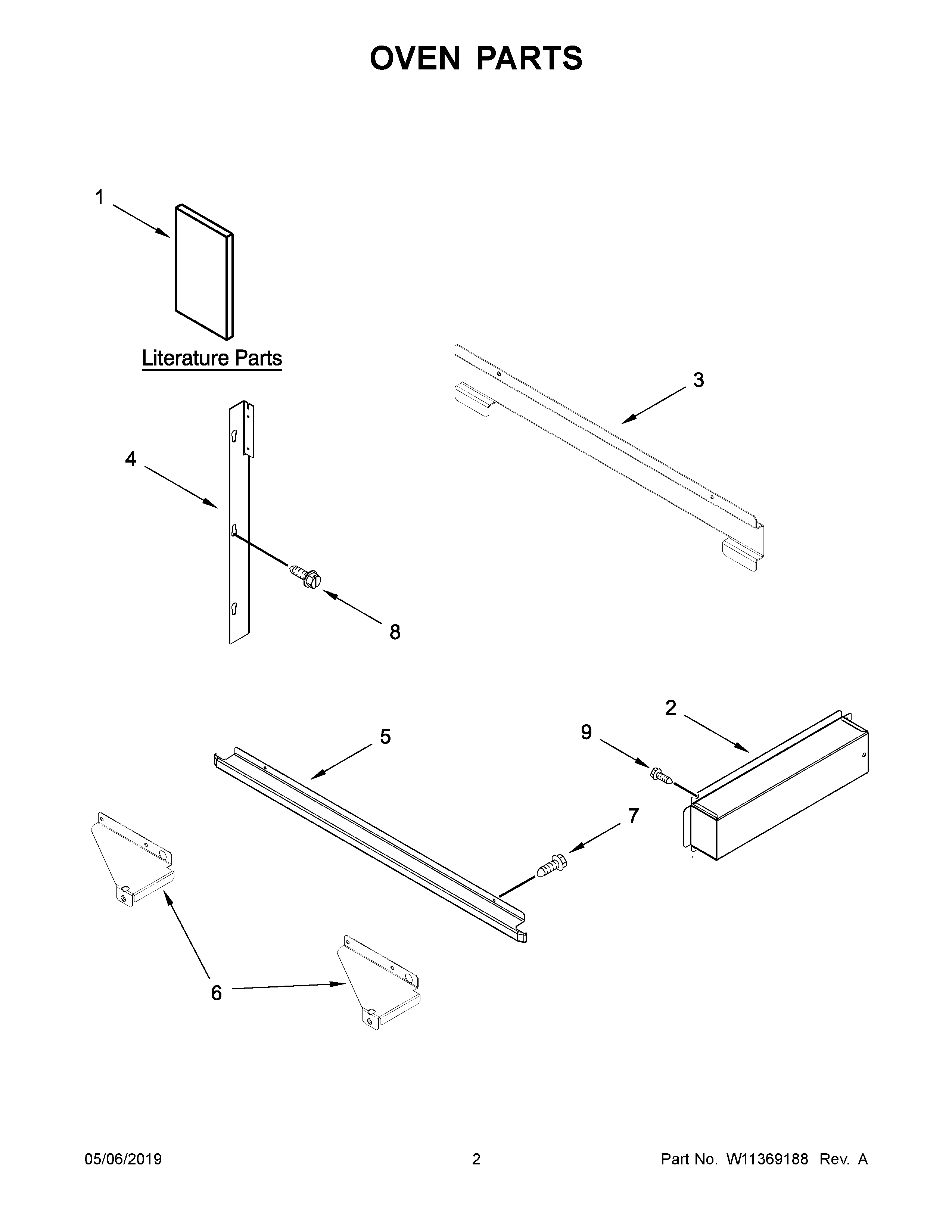

KMBP100ESS03 02 – OVEN PARTS

KMBP100ESS03 02 – OVEN PARTS

Written by

in

KMBP100ESS03 02 – OVEN PARTS

Products

PositionProduct
NIW11546965 Whirlpool Wire Harness
NIW11356992 Whirlpool Conduit
NIW11356977 Whirlpool Wire Harness
NIW11325605 Whirlpool Wire Harness
NIW11356968 Whirlpool Wire Harness
NIW11449277 Whirlpool Microwave Wire Harness
NIW10760039 Whirlpool Hardware
NIW11226264 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
NIW11356986 Whirlpool Wire Harness
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE (MICROWAVE OVEN)
1BSHEET, TECH
2W10239155 Whirlpool Microwave Cover
3W11673269 Whirlpool Support Bracket
4ARAIL, SIDE (RIGHT)
4RAIL, SIDE (LEFT)
5W11359268 Whirlpool Trim
6W10239156 Whirlpool Microwave Support
6AW10239157 Whirlpool Microwave Support
7WP3400832 Whirlpool Screw
8SCREW
9SCREW
