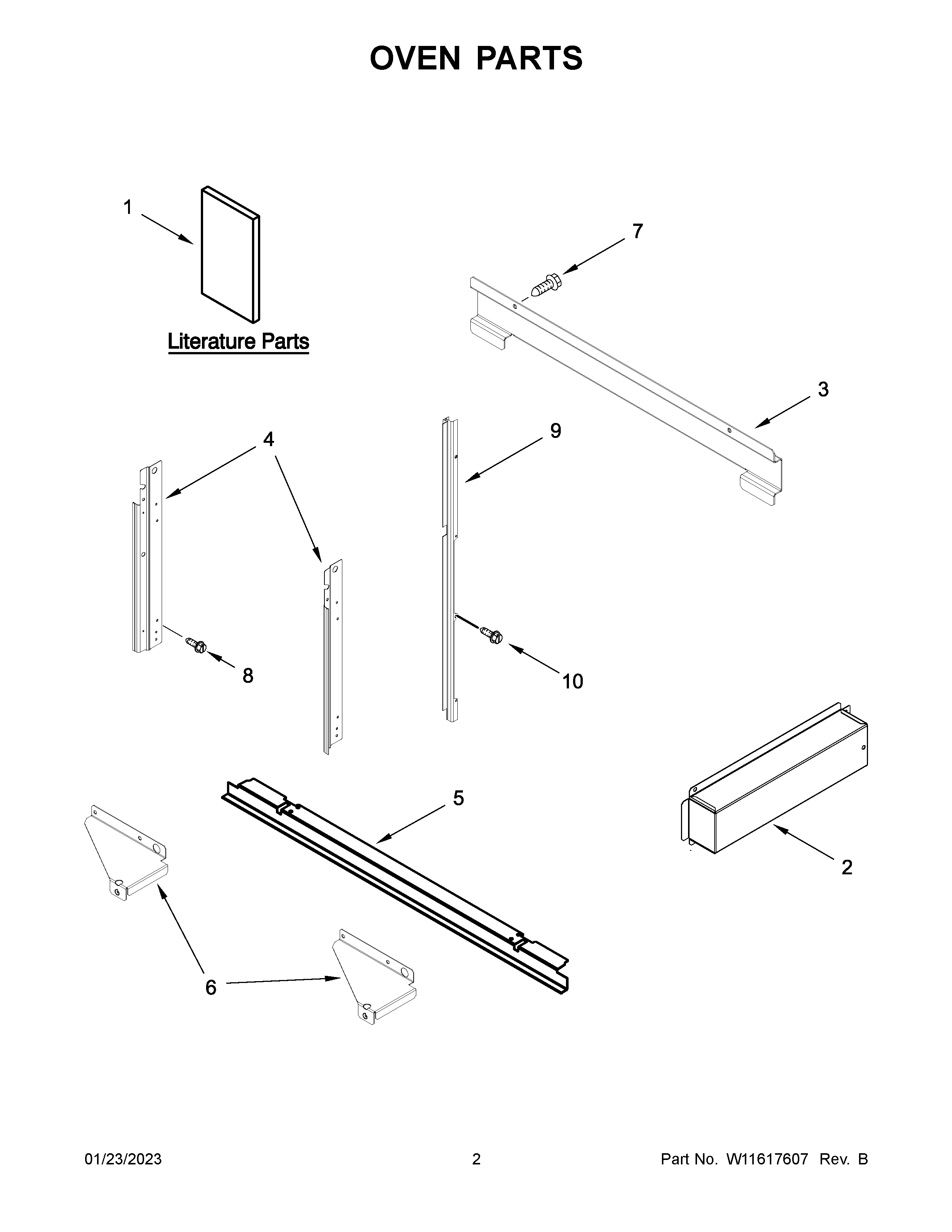

KMBP107EBS20 02 – OVEN PARTS

Products

Position	Product
NI	W11546965 Whirlpool Wire Harness
NI	W11356992 Whirlpool Conduit
NI	W11578578 Whirlpool Microwave Wire Harness
NI	W11578580 Whirlpool Wire Harness
NI	W11598162 Whirlpool Hardware
NI	W11356986 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11539494 Whirlpool Wire Harness
1	QUICK START GUIDE
1B	TECH SHEET
1A	OWNER'S MANUAL
2	W10239155 Whirlpool Microwave Cover
3	W11673269 Whirlpool Support Bracket
4A	W11627411 Whirlpool Mounting Rail
4	W11627410 Whirlpool Mounting Rail
5	W11312229 Whirlpool Trim Assembly
6	W10239158 Whirlpool Support
6A	BRACKET, LOWER (RIGHT)
7	SCREW
8	SCREW
9	W11239807 Whirlpool Mounting Rail
9A	W11239805 Whirlpool Mounting Rail
10	W11602623 Whirlpool Screw
