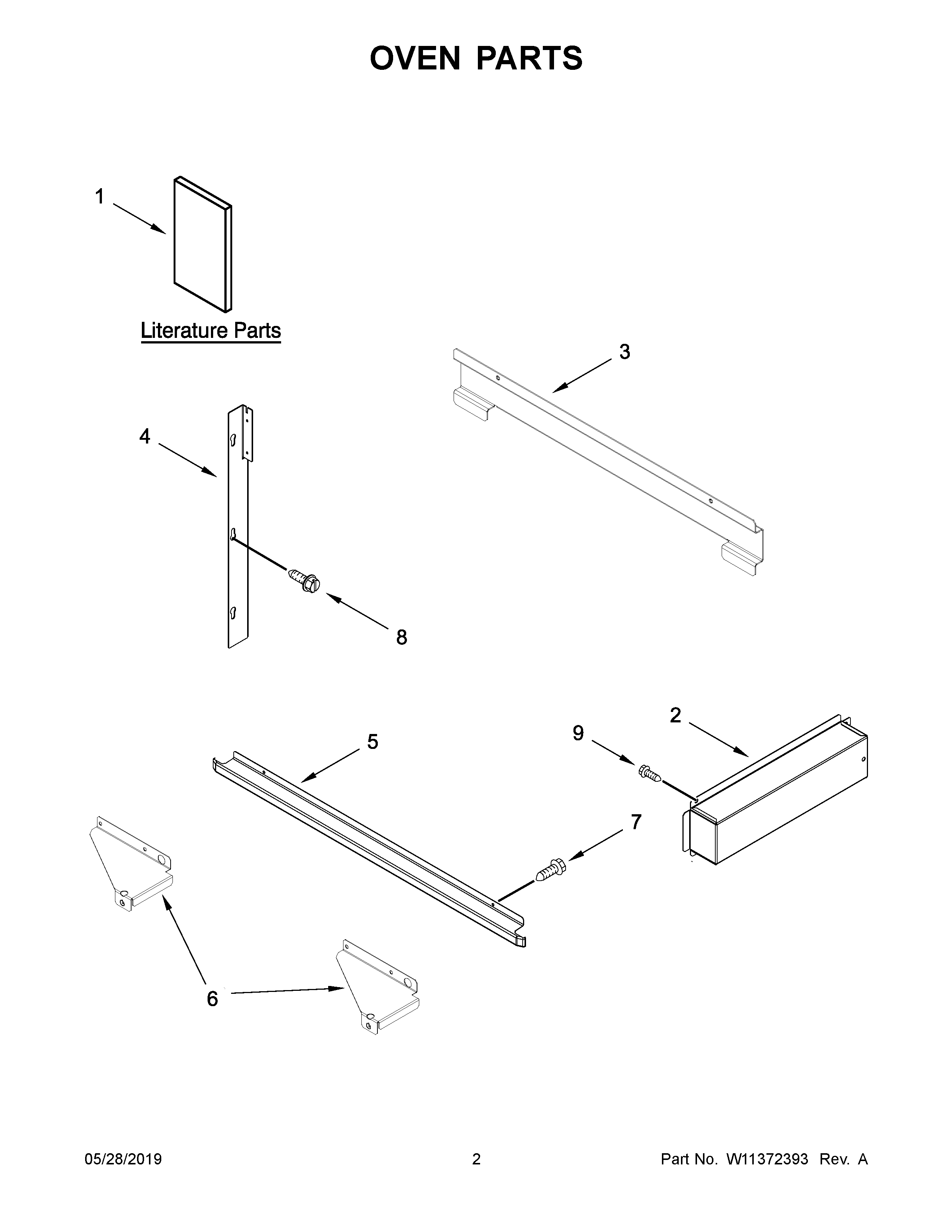

KMBP107ESS03 02 – OVEN PARTS

Products

Position	Product
NI	W11356986 Whirlpool Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11356968 Whirlpool Wire Harness
NI	W11356992 Whirlpool Conduit
NI	W11356977 Whirlpool Wire Harness
NI	W11449277 Whirlpool Microwave Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11226264 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11325605 Whirlpool Wire Harness
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
1B	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
2	W10239155 Whirlpool Microwave Cover
3	W11673269 Whirlpool Support Bracket
4	W10416256 Whirlpool Rail Mounting Assembly
4A	W10416255 Whirlpool Mounting Rail
5	W10420959 Whirlpool Trim
6	W10239158 Whirlpool Support
6A	BRACKET, LOWER (RIGHT)
7	WP3400832 Whirlpool Screw
8	SCREW
9	SCREW
