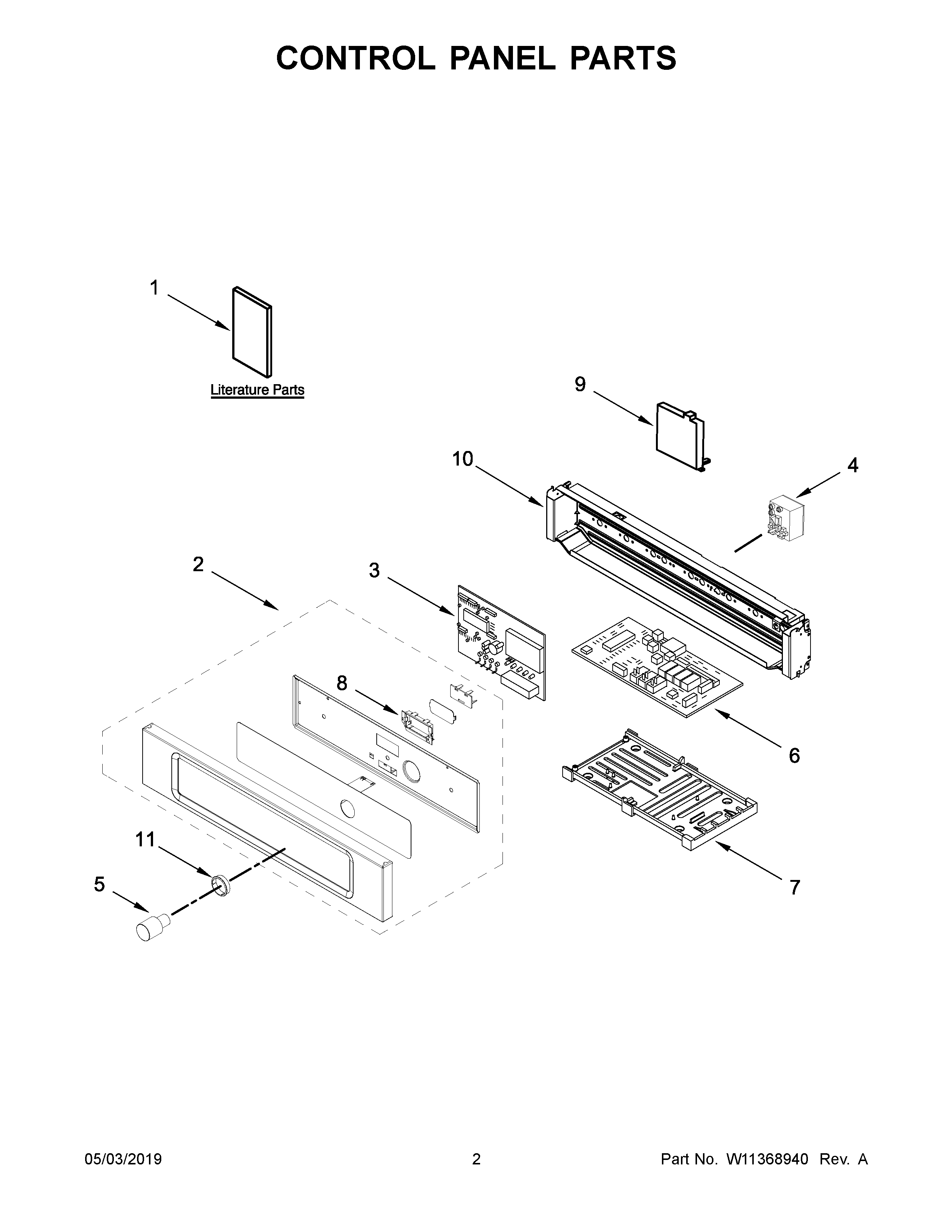

KMBS104EBL03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11356983 Whirlpool Microwave Wire Harness
NIW11356975 Whirlpool Wire Harness
NIW11356972 Whirlpool Wire Harness
NIW10737666 Whirlpool Screw
NIHARNESS, FAN & TURNTABLE MOTOR
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE AND CARE
1CSHEET, TECH
1BGUIDE, QUICK REFERENCE
2W10696354 Whirlpool Microwave Control Panel
2AW11197501 Whirlpool Microwave Control Panel
3W10891907-includeCORE Whirlpool W10891907 Microwave Electronic Control Board
4WPW10623991-includeCORE Whirlpool WPW10623991 Microwave Electronic Control Board + Core
5W10448758 Whirlpool Microwave Control Knob
6W10891908-includeCORE Whirlpool W10891908 Microwave Electronic Control Bo
7461967750752 Whirlpool Support Bracket
8461967750153 Whirlpool Microwave Support
9W10884489 Whirlpool Microwave Support
10SUPPORT, PANEL
11461960204731 Whirlpool Microwave Ring
