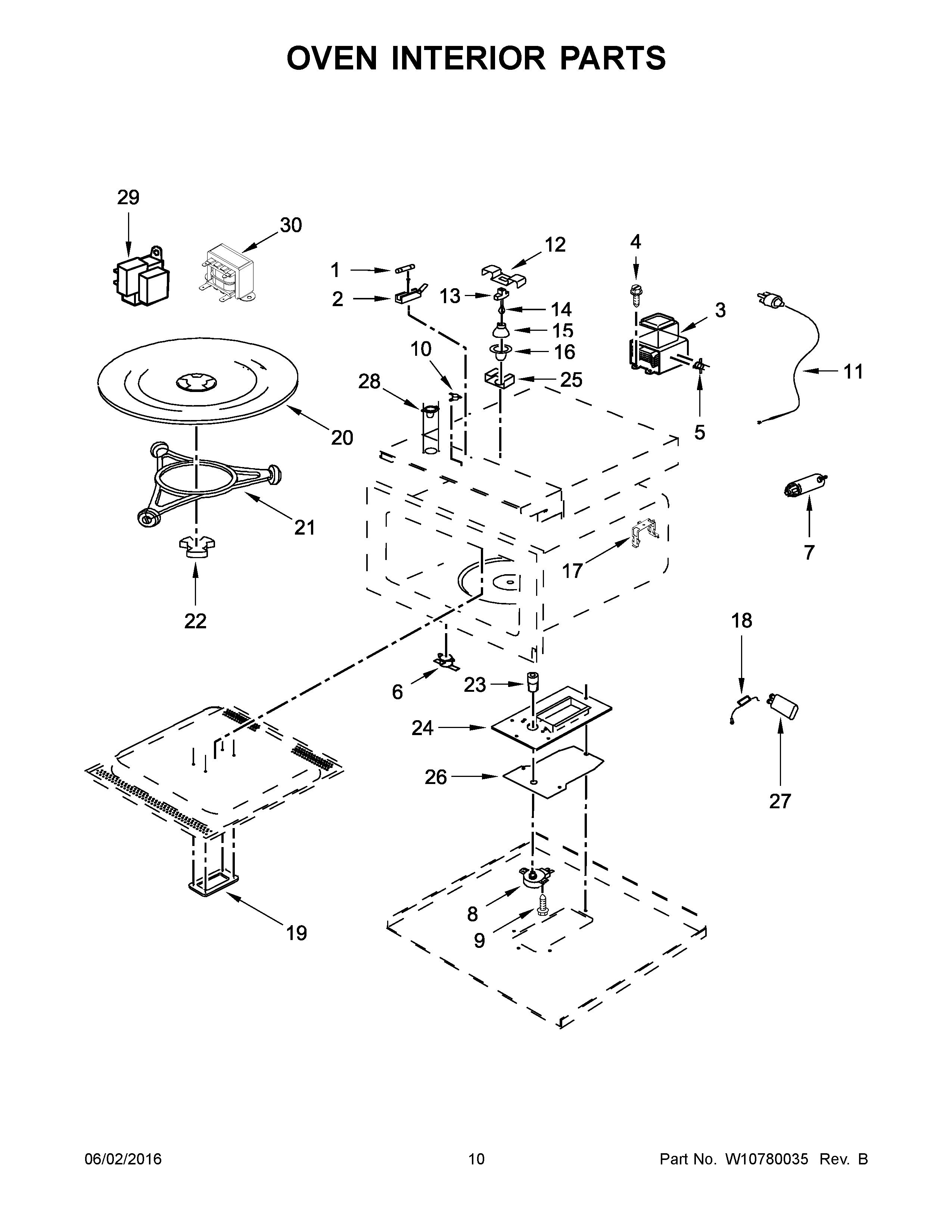

KMBS104ESS00 06 – OVEN INTERIOR PARTS

Products

Position	Product
1	W11188752 Whirlpool Microwave Fuse
2	W10245194 Whirlpool Microwave Fuse Block
3	W10245183 Whirlpool Microwave Magnetron
4	SCREW
5	WP4375079 Whirlpool Microwave Thermostat
6	W10141630 Whirlpool Microwave Thermostat Fixed
7	461964885341 Whirlpool Microwave Filter
8	W10911403 Whirlpool Microwave Turn Motor
9	461967825321 Whirlpool Microwave Screw
10	W11676348 Whirlpool Thermostat Fix
11	W10549524 Whirlpool Microwave Power Cord
12	W10474015 Whirlpool Microwave Spring
13	WPW10490593 Whirlpool Microwave Lamp Housing
14	W10886919 Whirlpool Light Bulb
15	423107022541 Whirlpool Microwave Reflector
16	W11193483 Whirlpool Microwave Lamp Lens
17	HOLDER, CAPACITATOR
18	W11256462 Whirlpool Microwave Diode
19	W11087199 Whirlpool Waveguide Cover
20	W11373838 Whirlpool Glass Tray
21	W10422379 Whirlpool Microwave Support
22	W11223840 Whirlpool Microwave Turn Shaft
23	W11126044 Whirlpool Drive Shaft
24	461967008471 Whirlpool Microwave Motor Cover
25	W11440819 Whirlpool Clip
26	COVER, MOTOR
27	461964654691 Whirlpool Microwave MG Capacitor
28	W10871220 Whirlpool Microwave Sensor
30	W11238401 Whirlpool Microwave Transformer
