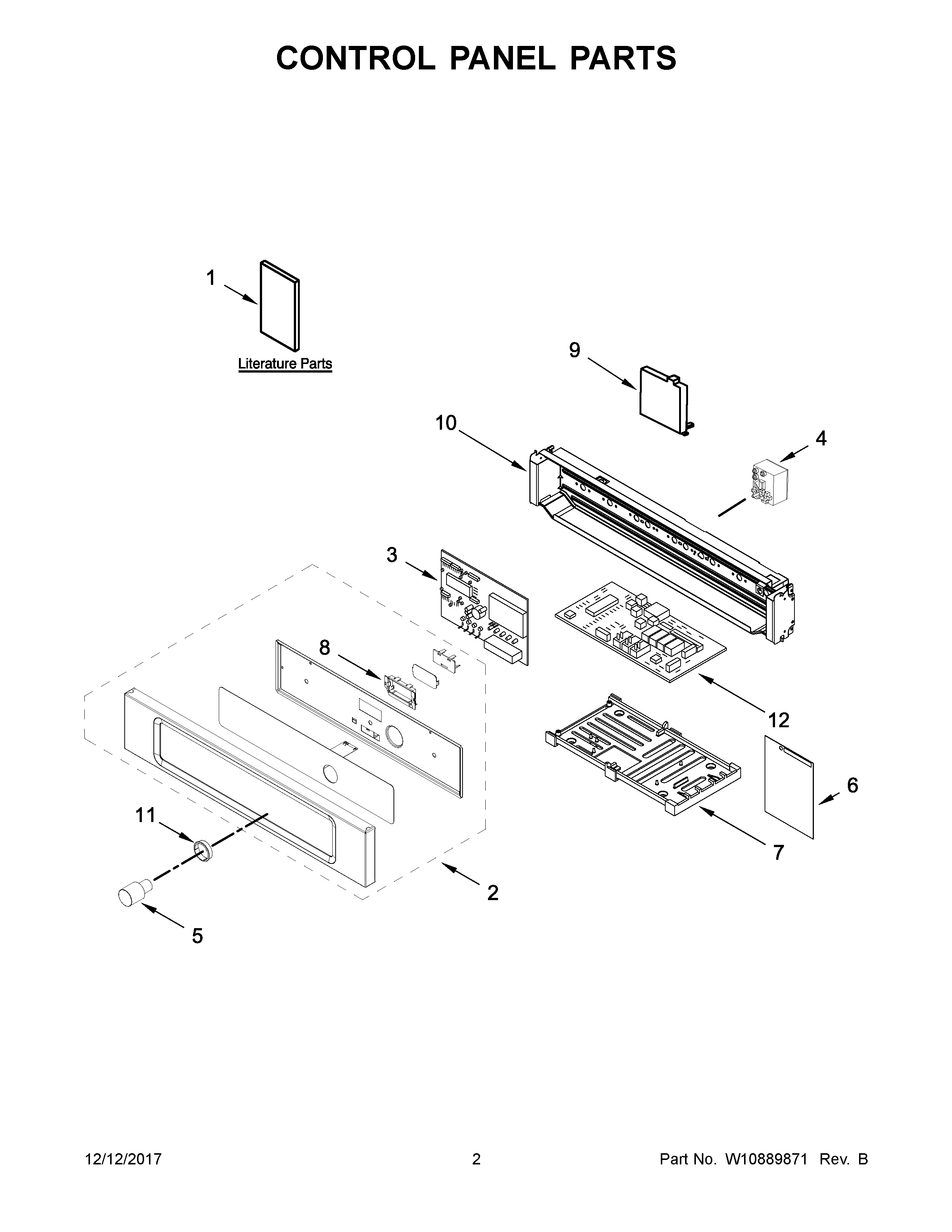

KMBS104ESS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11356983 Whirlpool Microwave Wire Harness
NI	W11356975 Whirlpool Wire Harness
NI	W11356972 Whirlpool Wire Harness
NI	HARNESS, FAN & TURNTABLE MOTOR
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE AND CARE
1B	GUIDE, QUICK REFERENCE
1C	SHEET, TECH
2A	W11197501 Whirlpool Microwave Control Panel
2	W10696354 Whirlpool Microwave Control Panel
3	W10891907-includeCORE Whirlpool W10891907 Microwave Electronic Control Board
4	WPW10623991-includeCORE Whirlpool WPW10623991 Microwave Electronic Control Board + Core
5	W10448758 Whirlpool Microwave Control Knob
6	PLATE, NOISE REDUCTION
7	461967750752 Whirlpool Support Bracket
8	461967750153 Whirlpool Microwave Support
9	W10884489 Whirlpool Microwave Support
10	SUPPORT, PANEL
11	461960204731 Whirlpool Microwave Ring
12	W10891908-includeCORE Whirlpool W10891908 Microwave Electronic Control Bo
