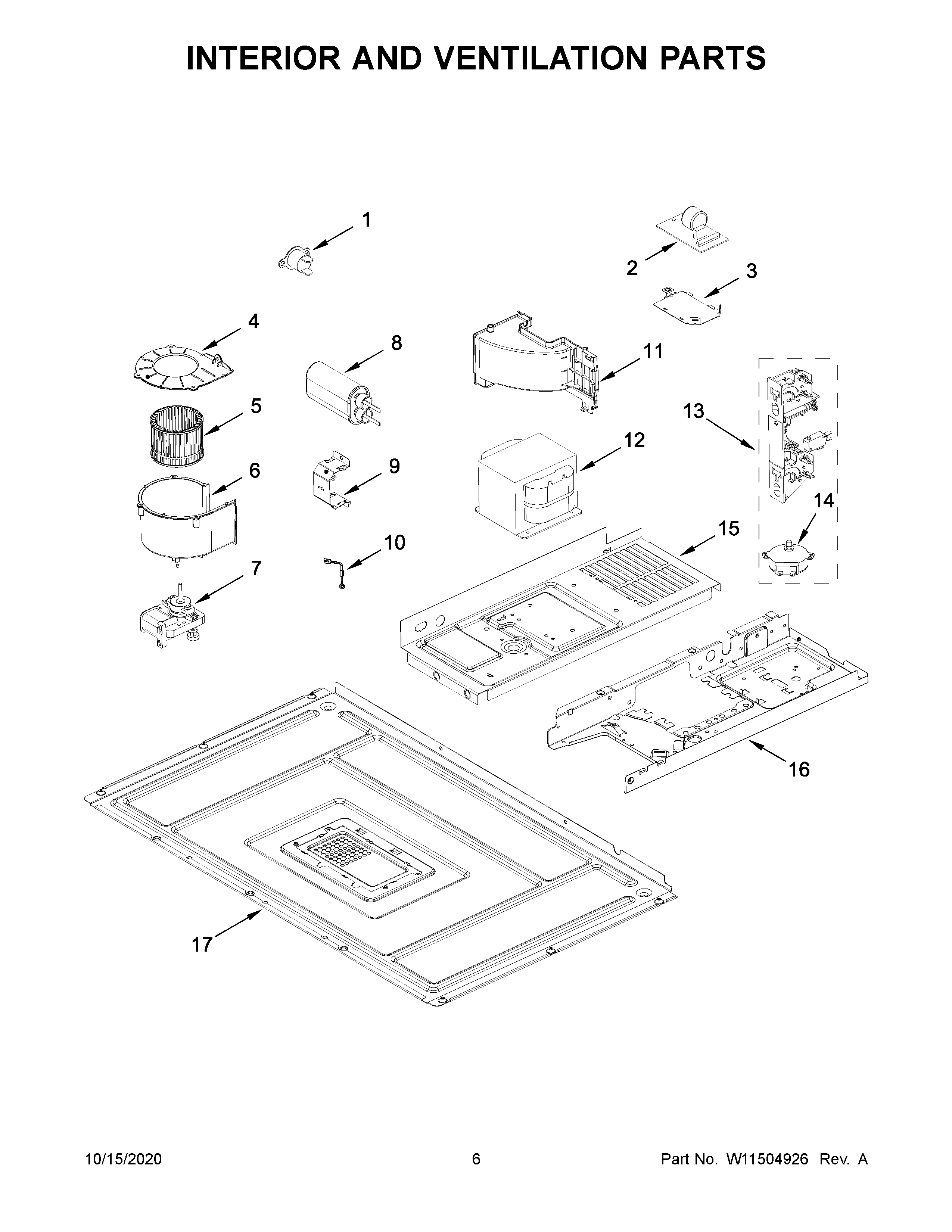

KMBT5011KSS0 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11378281 Whirlpool Fix Thermostat
2BOARD, NOISE FILTER
3W10313274 Whirlpool Microwave Mounting Bracket
4COVER, COOLING FAN
5W11088354 Whirlpool Microwave Fan Wheel
6W11213349 Whirlpool Microwave Housing
7W11443154 Whirlpool Microwave Fan Motor
8W11213318 Whirlpool Microwave Capacitor MG
9W11095808 Whirlpool Compactor Bracket
10W11256462 Whirlpool Microwave Diode
11W11088358 Whirlpool Microwave Air Guide
12W11628655 Whirlpool Microwave HVT Transformer
13W11493414 Whirlpool Microwave Interlock
14W11545873 Whirlpool Microwave Turn Motor
15CHASSIS, TRANSFORMER
16PLATE, CHASSIS
17PLATE, BOTTOM
