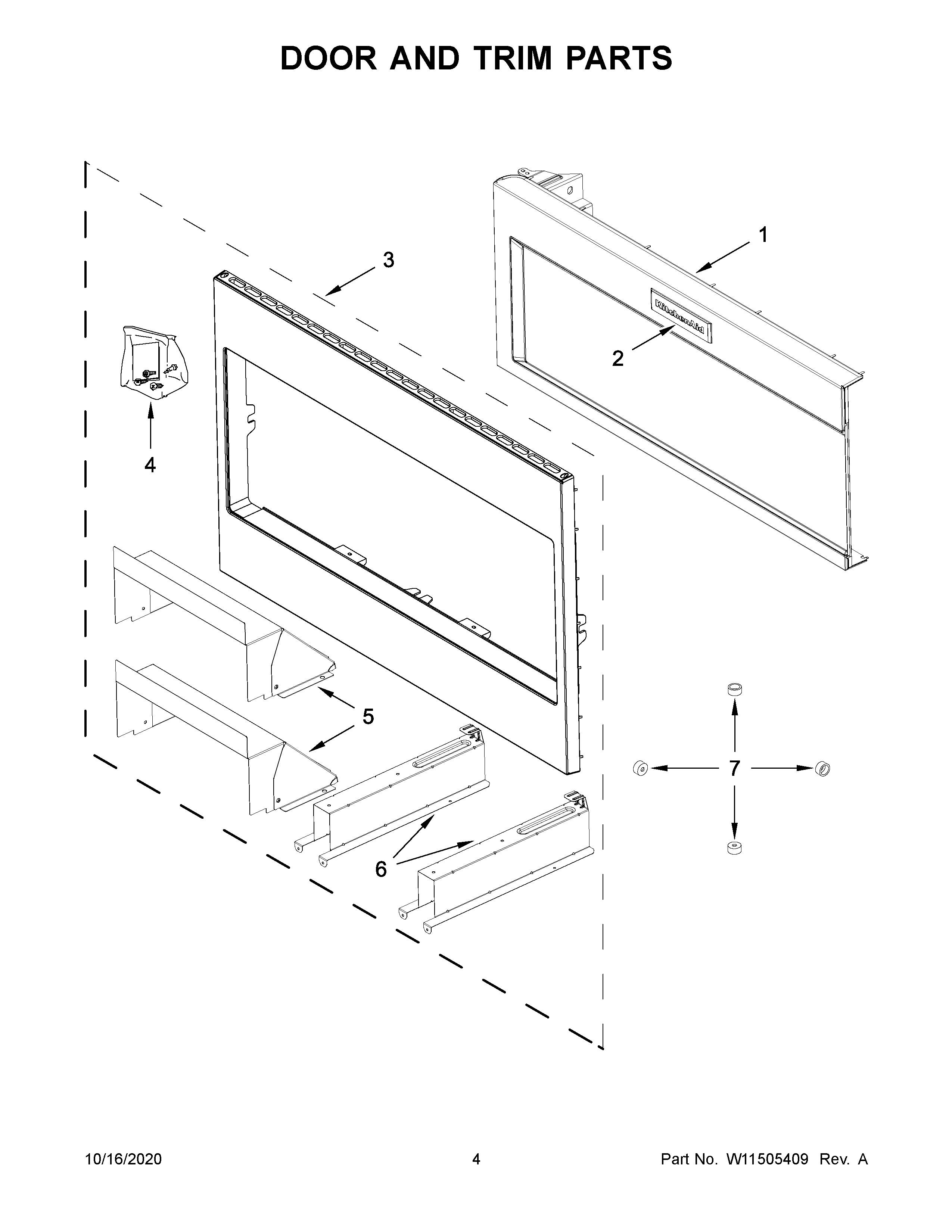

KMBT5511KSS0 03 – DOOR AND TRIM PARTS

KMBT5511KSS0 03 – DOOR AND TRIM PARTS

Written by

in

KMBT5511KSS0 03 – DOOR AND TRIM PARTS

Products

PositionProduct
1W11453247 Whirlpool Microwave Door
2W10909682 Whirlpool Nameplate Tag
3W11451304 Whirlpool Microwave Trim Kit
3AW11451313 Whirlpool Microwave Trim Kit
4W11494279 Whirlpool Microwave Mounting Hardware
5W11494296 Whirlpool Microwave Air Duct
6W11494292 Whirlpool Microwave Mounting Bracket
7PIN, LOCATING
