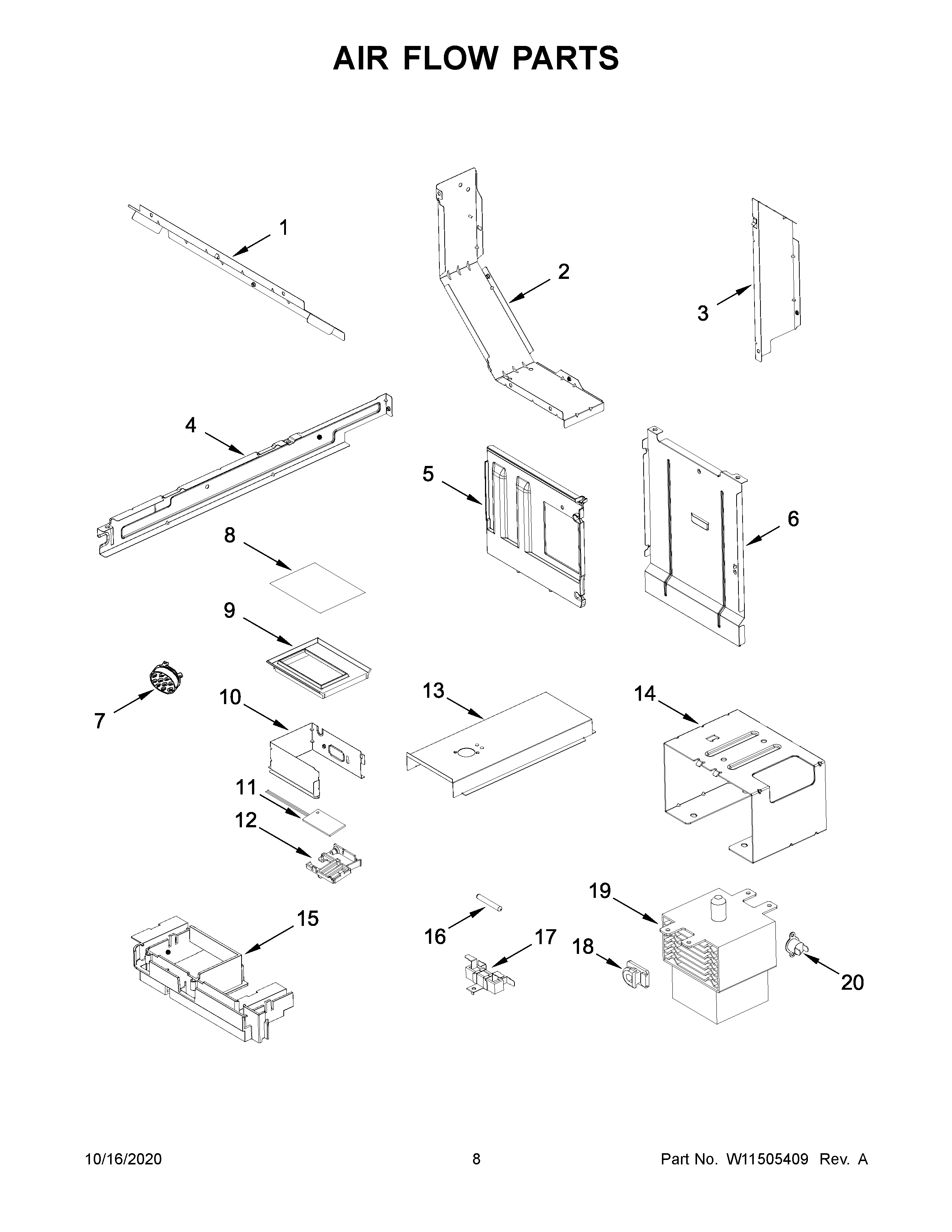

KMBT5511KSS0 05 – AIR FLOW PARTS

Products

Position	Product
1	CHANNEL, HOOD BACK
2	AIR DEFLECTOR, RIGHT
3	DEFLECTOR, LEFT BACK
4	DIVIDER, AIR
5	W11095794 Whirlpool Deflector Assembly
6	W11095804 Whirlpool Deflector Assembly
7	W10557536 Whirlpool Microwave Sensor
8	FOIL, LAMP
9	SEAL, LIGHTING
10	W11086300 Whirlpool Microwave Reflector
11	W11443139 Whirlpool Microwave Light
12	W11098921 Whirlpool Microwave Light Cover
13	OUTLET, CAVITY (BACK)
14	HOUSING, TRANFORMER
15	HOLDER, WIRE
16	FUSE-THRML
17	W10245194 Whirlpool Microwave Fuse Block
18	W11126543 Whirlpool Microwave Foam Seal
19	W11652048 Whirlpool Magnetron
20	W11443128 Whirlpool Thermostat
