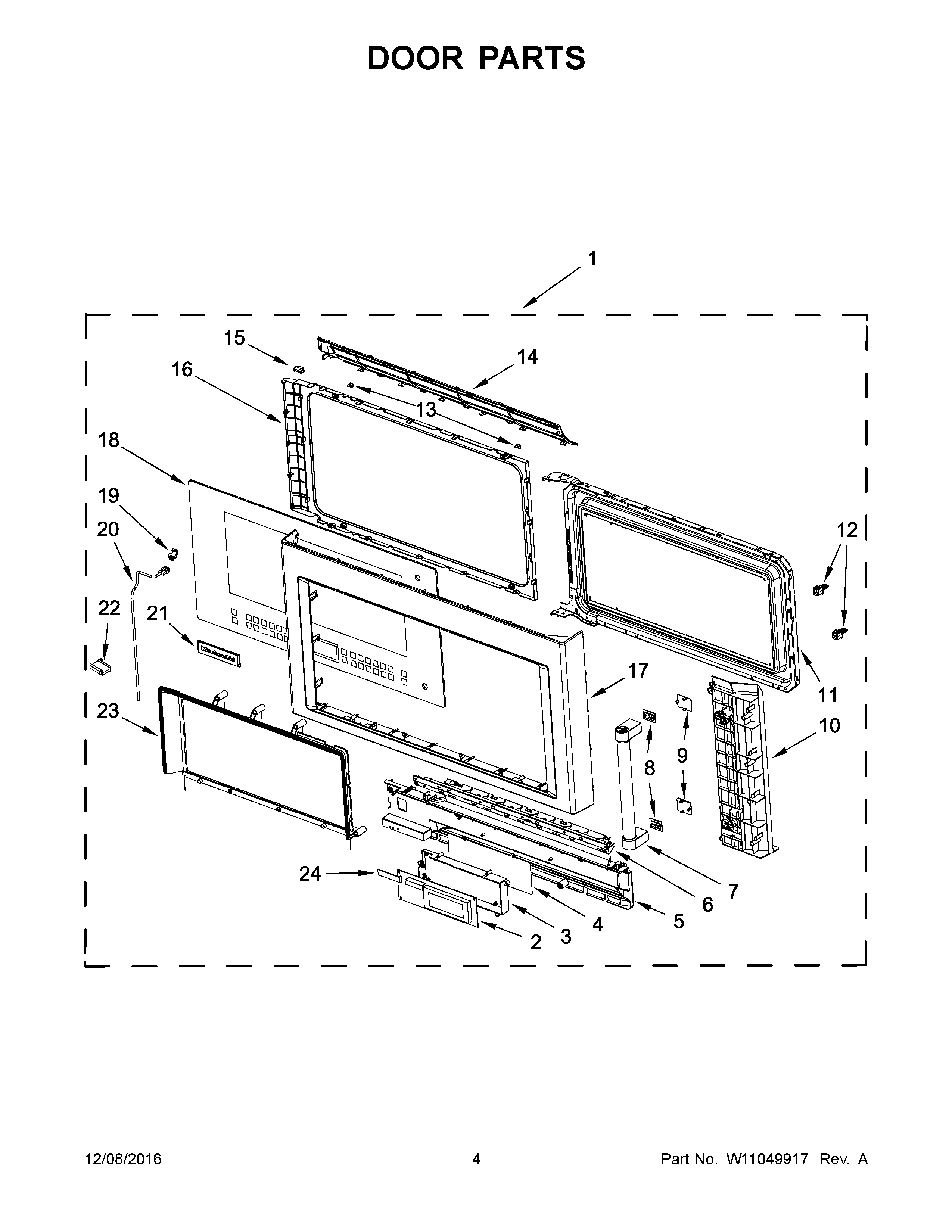

KMHC319EBL2 03 – DOOR PARTS

Products

Position	Product
1B	W11205123 Whirlpool Microwave Door
1	W11205126 Whirlpool Microwave Door
1A	DOOR, COMPLETE (BLACK)
2	W11202852 Whirlpool Microwave Electronic Control Board
3	W10770970 Whirlpool Holder
4	W10540298 Whirlpool Cover Assembly
5	W10617743 Whirlpool Microwave Cover
6	W10476546 Whirlpool Microwave Support Bracket
7	W10604264 Whirlpool Microwave Door Handle
8	W11590575 Whirlpool Microwave Cushion
9A	W10478657 Whirlpool Microwave Cover
9	W10571119 Whirlpool Plate Cover
10	W10734944 Whirlpool Microwave Support Bracket
10A	W11699920 Whirlpool Microwave Support Bracket
11	W11045518 Whirlpool Microwave Inner Door
12	W10740455 Whirlpool Microwave Door Latch
13	W10542546 Whirlpool Microwave Cover
14A	W10476550 Whirlpool Microwave Door Trim
14	W10570992 Whirlpool Microwave Door Trim
15	W10643448 Whirlpool Microwave Clip
16	W10897612 Whirlpool Microwave Choke Cover
17B	W10688550 Whirlpool Microwave Outer Door
17A	ASSEMBLY, DOOR FRAME (BLACK)
17	W10688547 Whirlpool Microwave Outer Door
18	W10861345 Whirlpool Microwave Door Glass
19	HOLDER, DOOR CABLE
20	W10508745 Whirlpool Microwave Wire Harness
21	W10909682 Whirlpool Nameplate Tag
22	BRACKET, DOOR CABLE
23	W10509362 Whirlpool Microwave Wire Harness
24	W10478647 Whirlpool Microwave Plate
