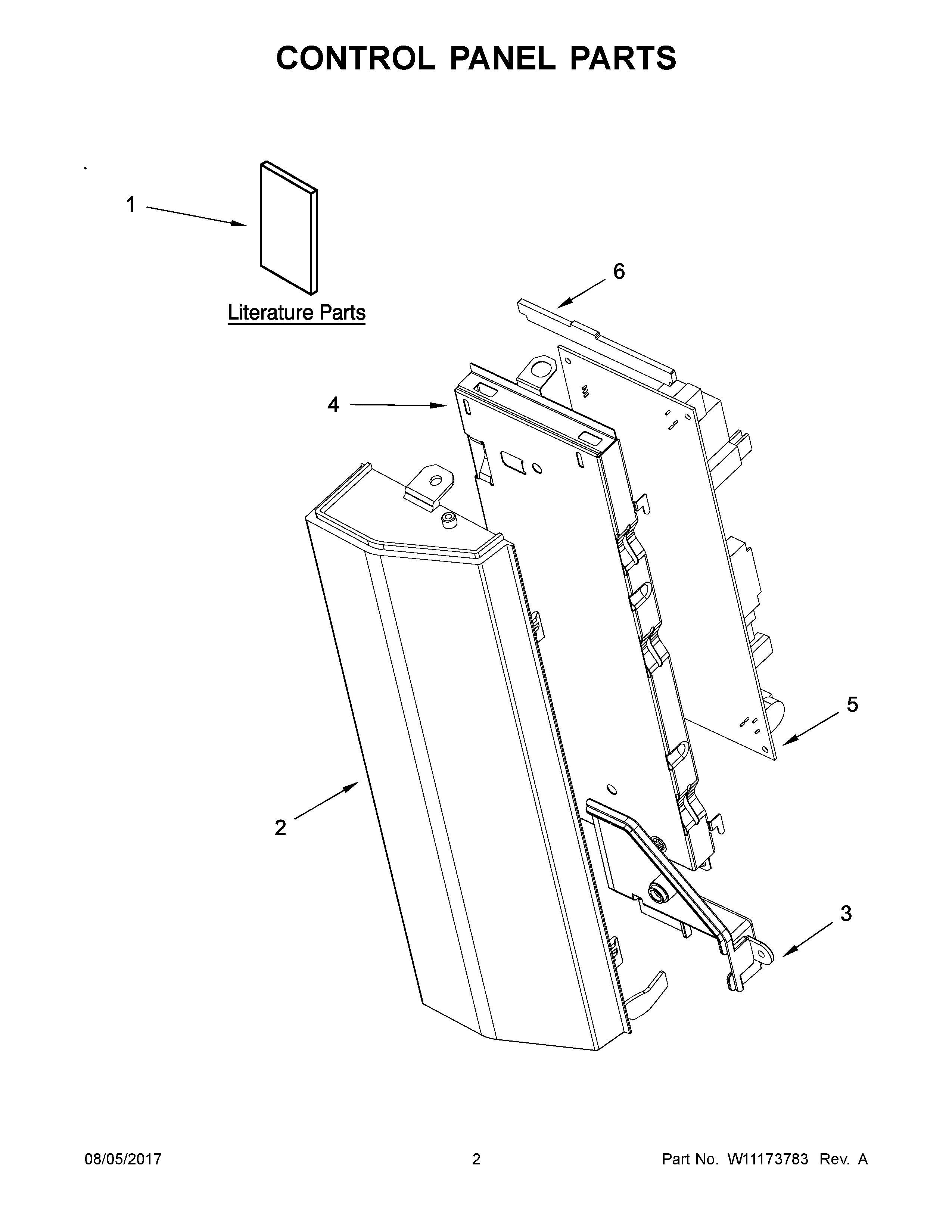

KMHC319EBL3 02 – CONTROL PANEL PARTS

Products

Position	Product
1C	TECH SHEET
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1B	QUICK REFERENCE GUIDE
2	W10571112 Whirlpool Microwave Panel
2A	W10478239 Whirlpool Microwave Panel
3	W10533504 Whirlpool Microwave Air Duct
4	W10540727 Whirlpool Microwave Control Bracket
5	W11413135 Whirlpool Microwave Electronic Control Board
6	W10540721 Whirlpool Microwave Foam Seal
