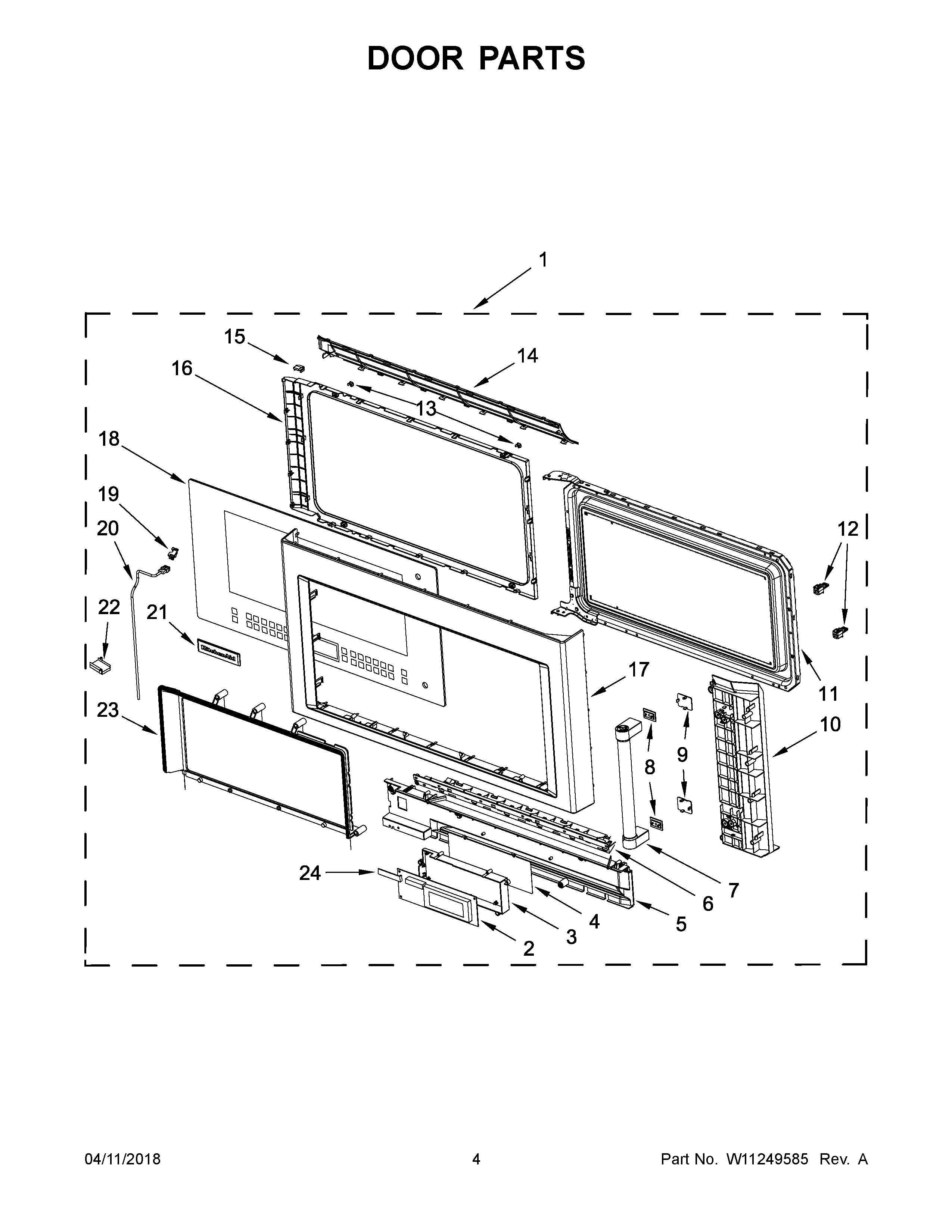

KMHC319EBS3 03 – DOOR PARTS

Products

Position	Product
1	W11205125 Whirlpool Microwave Door
2	W11202852 Whirlpool Microwave Electronic Control Board
3	W10770970 Whirlpool Holder
4	W10540298 Whirlpool Cover Assembly
5	W10617743 Whirlpool Microwave Cover
6	W10476546 Whirlpool Microwave Support Bracket
7	W10604264 Whirlpool Microwave Door Handle
8	W11590575 Whirlpool Microwave Cushion
9	W10478657 Whirlpool Microwave Cover
10	W11699920 Whirlpool Microwave Support Bracket
11	W11045518 Whirlpool Microwave Inner Door
12	W10740455 Whirlpool Microwave Door Latch
13	W10542546 Whirlpool Microwave Cover
14	W10476550 Whirlpool Microwave Door Trim
15	W10643448 Whirlpool Microwave Clip
16	W10897612 Whirlpool Microwave Choke Cover
17	W10866701 Whirlpool Microwave Outer Door
18	W10861345 Whirlpool Microwave Door Glass
19	HOLDER, DOOR CABLE
20	W10508745 Whirlpool Microwave Wire Harness
21	W10909682 Whirlpool Nameplate Tag
22	BRACKET, DOOR CABLE
23	W10478647 Whirlpool Microwave Plate
24	W10509362 Whirlpool Microwave Wire Harness
