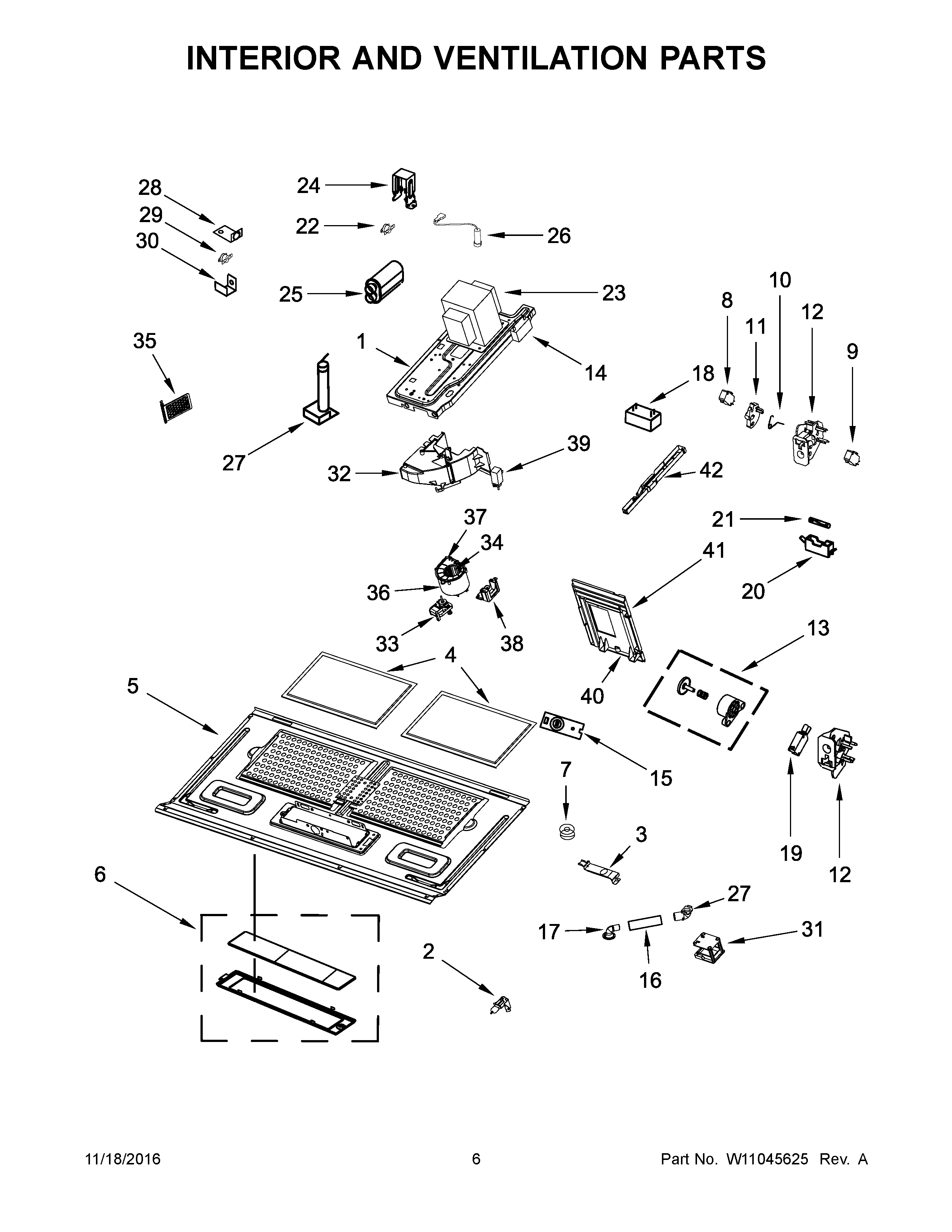

KMHC319ESS1 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T12:27:38+00:00KMHC319ESS1 04 – INTERIOR AND VENTILATION PARTS ProductsPositionProduct1W10908578 Whirlpool Microwave Base2W10709921 Whirlpool Halogen Light Bulb3W10525853 Whirlpool Microwave Sensor Bracket4W10535950 Whirlpool Microwave Grease Filter5W10571126 Whirlpool Microwave Base6COVR-LIGHT7W10510237 Whirlpool Microwave Spacer8W10727360 Whirlpool Microwave Door Switch9W10269458 Whirlpool Microwave Door Switch10W10156812 Whirlpool Spring11W10562613 Whirlpool Microwave Interlock Cam Assembly12WP8206419 Whirlpool Microwave Top Interlock Support12AWPW10156813 Whirlpool Microwave Bottom Interlock Support13W10197758 Whirlpool Microwave Piston14W11405831 Whirlpool Microwave Capacitor15W10536989 Whirlpool Microwave Thermistor16W10510235 Whirlpool Microwave Shield17W10510234 Whirlpool Microwave Shield18W10568805 Whirlpool Microwave Resistor19W10211974 Whirlpool Microwave Door Interlock Micro Switch20W10245194 Whirlpool Microwave Fuse Block21FUSE-THRML22W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C23W10772112 Whirlpool Microwave Transformer24W10633730 Whirlpool Microwave Control Bracket25W10561770 Whirlpool Microwave Capacitor-MG26W11256462 Whirlpool Microwave Diode27W10510233 Whirlpool Microwave Shield28W10259248 Whirlpool Microwave Cover Assembly29W10599629 Whirlpool Microwave Thermostat Fix308206223 Whirlpool Clip31W11416049 Whirlpool Microwave Electronic Control Board32W10631701 Whirlpool Microwave Air Guide33W11230994 Whirlpool Microwave Fan Motor34W10533503 Whirlpool Microwave Fan Wheel35W10756358 Whirlpool Microwave Valve36W10533501 Whirlpool Microwave Housing37W10533502 Whirlpool Microwave Fan Cover38W10533480 Whirlpool Microwave Holder39W10458325 Whirlpool Microwave Actuator40W10533107 Whirlpool Microwave Deflector Assembly41W10571453 Whirlpool Microwave Plate42W10540718 Whirlpool Microwave Mounting Bracket
