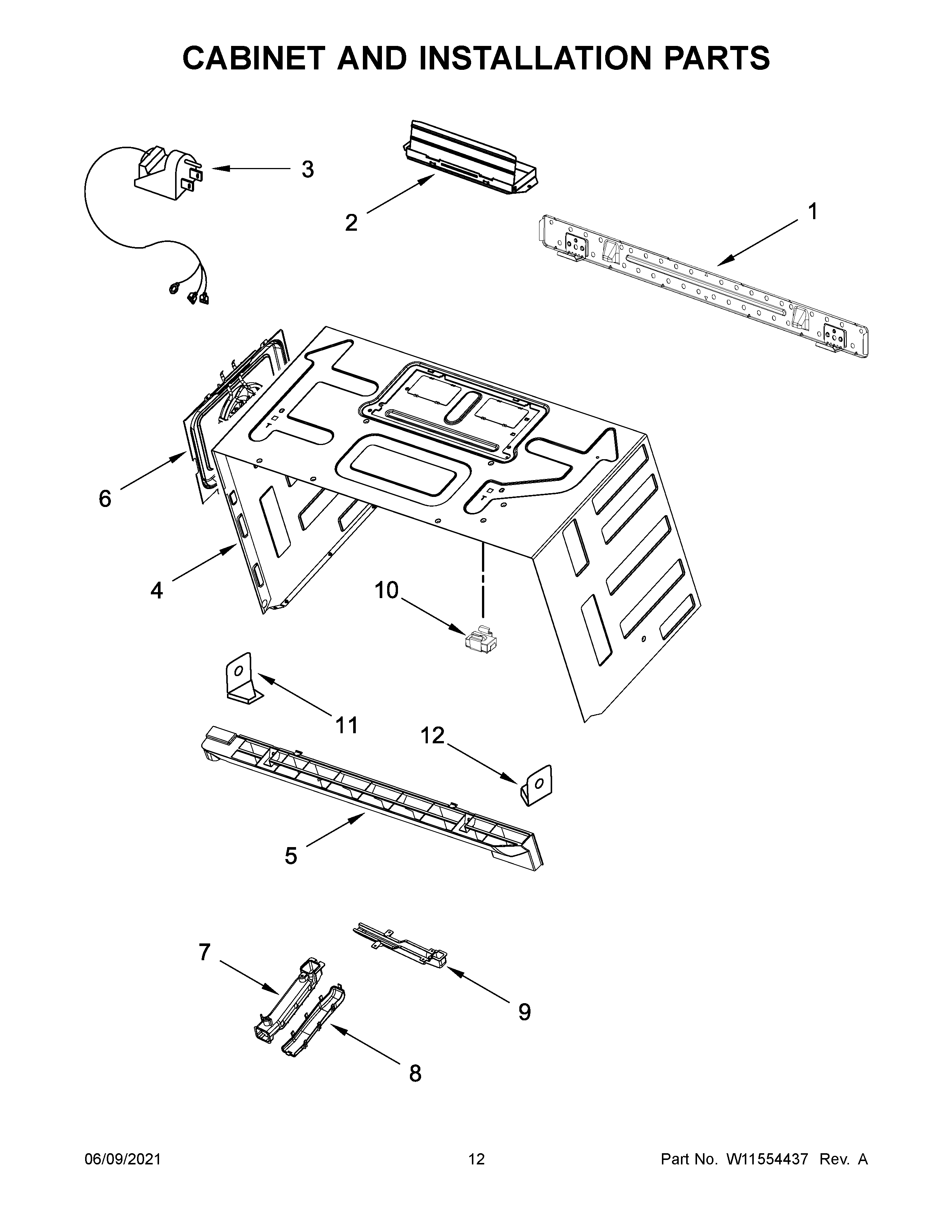

KMHC319EWH06 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10571450 Whirlpool Plate
NI	W10571451 Whirlpool Plate
NI	W10821385 Whirlpool Hardware Kit
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	INSULATION, BOTTOM
NI	W10571453 Whirlpool Microwave Plate
NI	W10508746 Whirlpool Microwave Wire Harness
NI	W11244782 Whirlpool Microwave Lamp Housing
NI	W10508741 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
NI	W11298361 Whirlpool Microwave Wire Harness
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	W11446920 Whirlpool Microwave Cab Wrapper
4A	W11662678 Whirlpool Cabinet Wrapper
5A	W10701701 Whirlpool Microwave Vent Grille
5	W10701700 Whirlpool Microwave Vent Grill
6	WPW10571554 Whirlpool Microwave Chamber
7	W10740434 Whirlpool Microwave Air Duct
8	W10533489 Whirlpool Microwave Air Duct
9	W10570212 Whirlpool Microwave Air Duct
10	W11122643 Whirlpool Nut
11	W10830163 Whirlpool Microwave Mounting Bracket
12	W10810989 Whirlpool Microwave Mounting Bracket
