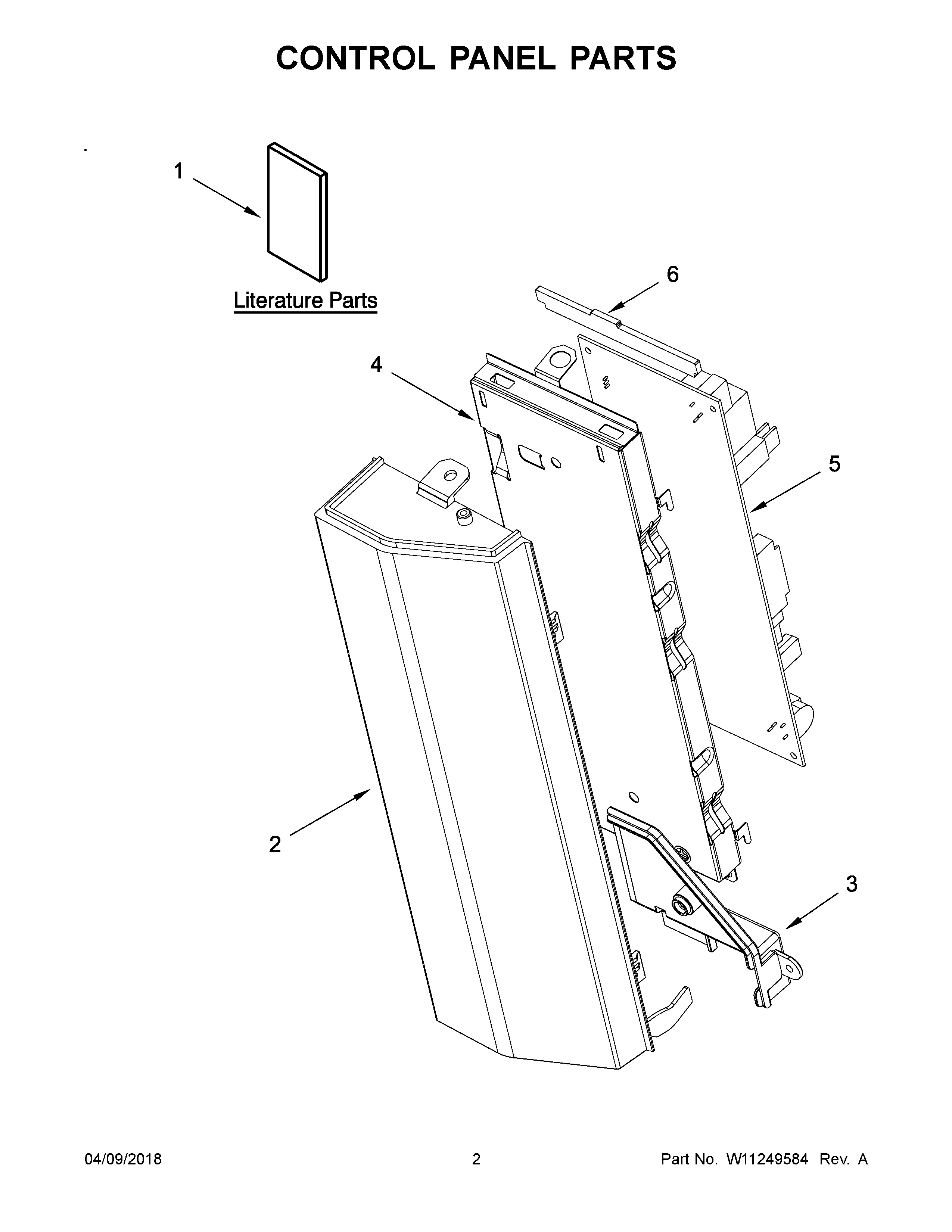

KMHC319EWH4 02 – CONTROL PANEL PARTS

KMHC319EWH4 02 – CONTROL PANEL PARTS

Written by

in

KMHC319EWH4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
1BQUICK REFERENCE GUIDE
2AW10478239 Whirlpool Microwave Panel
2W10571112 Whirlpool Microwave Panel
3W10533504 Whirlpool Microwave Air Duct
4W10540727 Whirlpool Microwave Control Bracket
5W11413135 Whirlpool Microwave Electronic Control Board
6W10540721 Whirlpool Microwave Foam Seal
