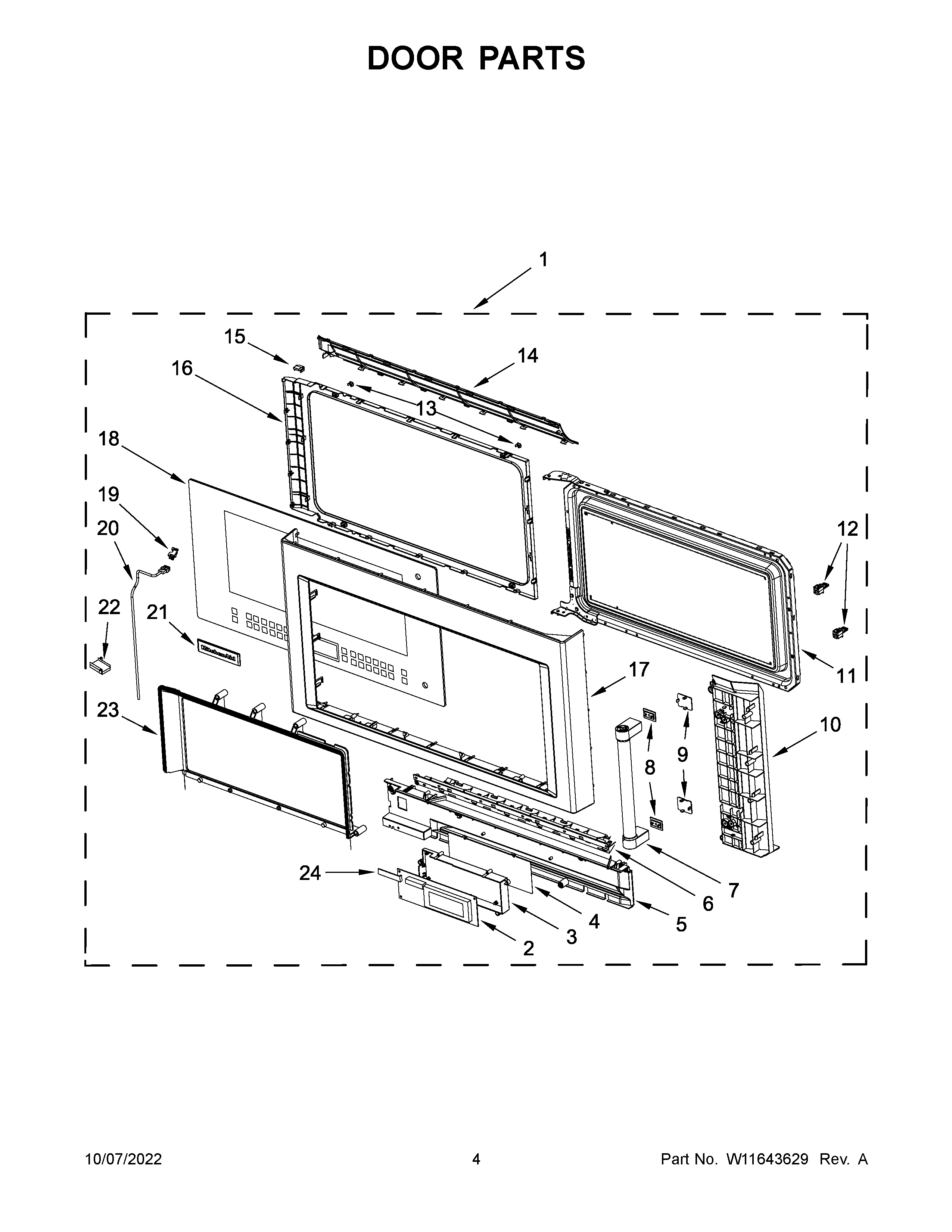

KMHC319LPS00 03 – DOOR PARTS

Products

PositionProduct
1AUSE AND CARE GUIDE
1W11643093 Whirlpool Microwave Door
2W11582284 Whirlpool Electronic Control
3W10770970 Whirlpool Holder
4W10540298 Whirlpool Cover Assembly
5W10617743 Whirlpool Microwave Cover
6W10476546 Whirlpool Microwave Support Bracket
7W10604264 Whirlpool Microwave Door Handle
8W11590575 Whirlpool Microwave Cushion
9W10478657 Whirlpool Microwave Cover
10W11699920 Whirlpool Microwave Support Bracket
11W11045518 Whirlpool Microwave Inner Door
12W10740455 Whirlpool Microwave Door Latch
13W10542546 Whirlpool Microwave Cover
14W10476550 Whirlpool Microwave Door Trim
15W10643448 Whirlpool Microwave Clip
16W10897612 Whirlpool Microwave Choke Cover
17DOOR-OUTER
17AW10866701 Whirlpool Microwave Outer Door
18GLASS, DOOR
19HOLDER, DOOR CABLE
20CABLE, DOOR USER INTERFACE
21W10909682 Whirlpool Nameplate Tag
22BRACKET, DOOR CABLE
23W10478647 Whirlpool Microwave Plate
24W10509362 Whirlpool Microwave Wire Harness
