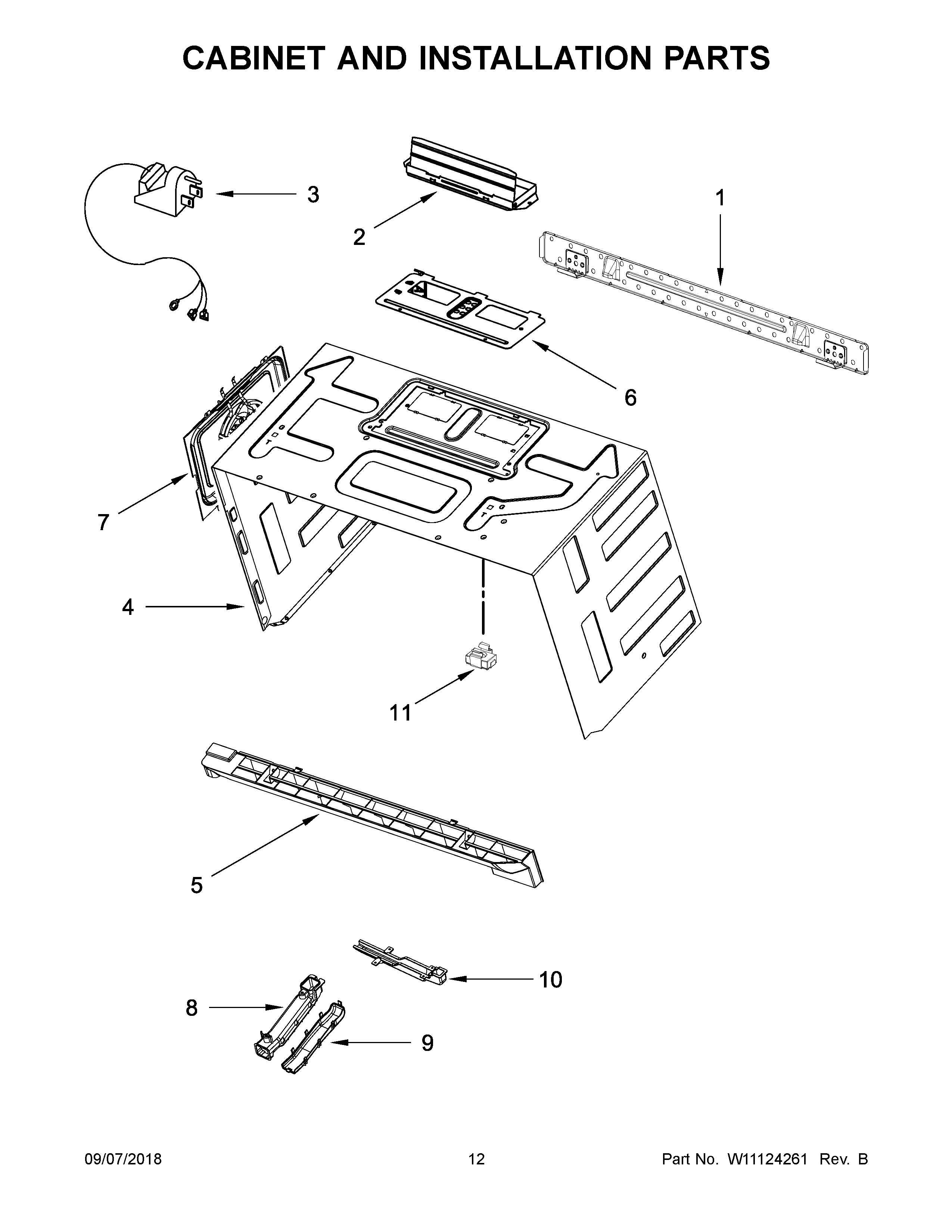

KMHP519ESS2 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10571450 Whirlpool Plate
NI	W10821385 Whirlpool Hardware Kit
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	INSULATION, BOTTOM
NI	W10571453 Whirlpool Microwave Plate
NI	W10566562 Whirlpool Microwave Wire Harness
NI	W10566563 Whirlpool Microwave Wire Harness
NI	W10670896 Whirlpool Microwave Wire Harness
NI	W10877903 Whirlpool Microwave Wire Harness
NI	W10508741 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	WP8169704 Whirlpool Screw
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	W10818229 Whirlpool Microwave Cabinet Wrapper
5	W10701701 Whirlpool Microwave Vent Grille
6	COVER, FAN MOTOR
7	WPW10571554 Whirlpool Microwave Chamber
8	W10740434 Whirlpool Microwave Air Duct
9	W10533489 Whirlpool Microwave Air Duct
10	W10570212 Whirlpool Microwave Air Duct
11	W10596040 Whirlpool Microwave Nut
