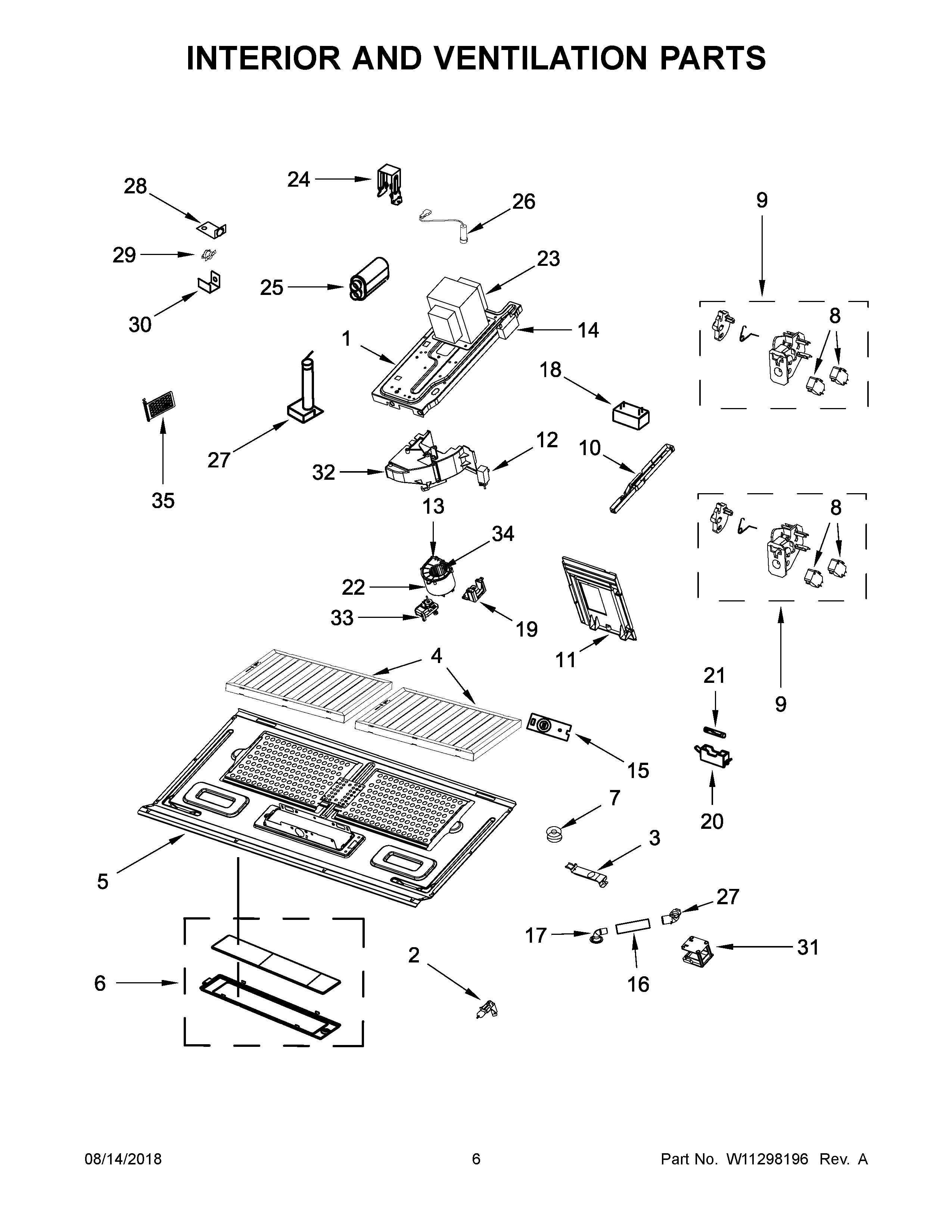

KMHP519ESS3 04 – INTERIOR AND VENTILATION PARTS

KMHP519ESS3 04 – INTERIOR AND VENTILATION PARTS

Written by

in

KMHP519ESS3 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10908578 Whirlpool Microwave Base
2W10709921 Whirlpool Halogen Light Bulb
3W10525853 Whirlpool Microwave Sensor Bracket
4W10535933 Whirlpool Microwave Filter
5W10607242 Whirlpool Microwave Base
6COVR-LIGHT
7W10510237 Whirlpool Microwave Spacer
8CABINET (NOT A SERVICEABLE PART)
9INTERLOCK
10W10540718 Whirlpool Microwave Mounting Bracket
11W10533107 Whirlpool Microwave Deflector Assembly
12W10458325 Whirlpool Microwave Actuator
13W10533502 Whirlpool Microwave Fan Cover
14W11405831 Whirlpool Microwave Capacitor
15W10536989 Whirlpool Microwave Thermistor
16W10510235 Whirlpool Microwave Shield
17W10510234 Whirlpool Microwave Shield
18W10568805 Whirlpool Microwave Resistor
19W10533480 Whirlpool Microwave Holder
20W10245194 Whirlpool Microwave Fuse Block
21FUSE-THRML
22W10533501 Whirlpool Microwave Housing
23W11744484 Whirlpool Capacitor-MG
24W10556823 Whirlpool Connector Bracket
25W11736651 Whirlpool Capacitor Mg
26W11256462 Whirlpool Microwave Diode
27W10510233 Whirlpool Microwave Shield
28W10259248 Whirlpool Microwave Cover Assembly
29W10599629 Whirlpool Microwave Thermostat Fix
308206223 Whirlpool Clip
31W11416049 Whirlpool Microwave Electronic Control Board
32W10631701 Whirlpool Microwave Air Guide
33W11230994 Whirlpool Microwave Fan Motor
34W10533503 Whirlpool Microwave Fan Wheel
35W10533486 Whirlpool Microwave Valve
