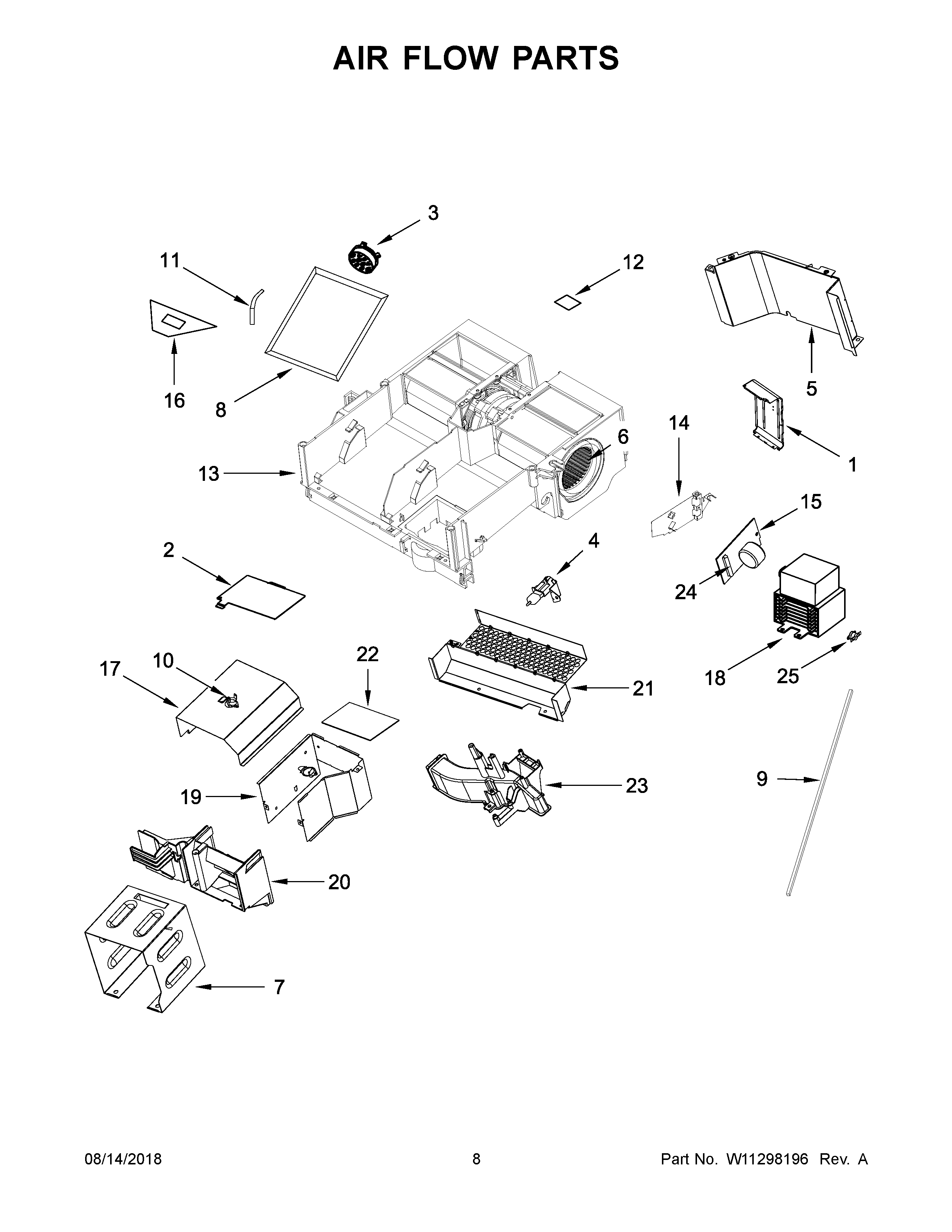

KMHP519ESS3 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	8206382 Whirlpool Microwave Light Cover
3	W10557536 Whirlpool Microwave Sensor
4	W10709921 Whirlpool Halogen Light Bulb
5	PLATE, AIR GUIDE
6	W11613599 Whirlpool Microwave Fan Motor
7	HOUSING, DAMPER
8	8206230A Whirlpool Microwave Charcoal Filter
9	SEAL, FOAM
10	W11661583 Whirlpool Thermostat Fix
11	W10557537 Whirlpool Microwave Thermistor
12	WPW10565479-includeCORE Whirlpool WPW10565479 Microwave Electronic Control Board + Core
13	W10632409 Whirlpool Microwave Air Duct
14	W10533484 Whirlpool Microwave Air Duct
15	W10572027 Whirlpool Microwave Filter
16	W10810142 Whirlpool Relief Strain
17	OUTLET, CAVITY (BACK)
18	W11708328 Whirlpool Magnetron
19	DUCT, CAVITY (REAR)
20	W10892383 Whirlpool Microwave Air Guide
21	W10629803 Whirlpool Microwave Side Cover
22	W10531724 Whirlpool Microwave Lamp Glass
23	W10758887 Whirlpool Microwave Air Duct
24	FUSE-THRML
25	W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
