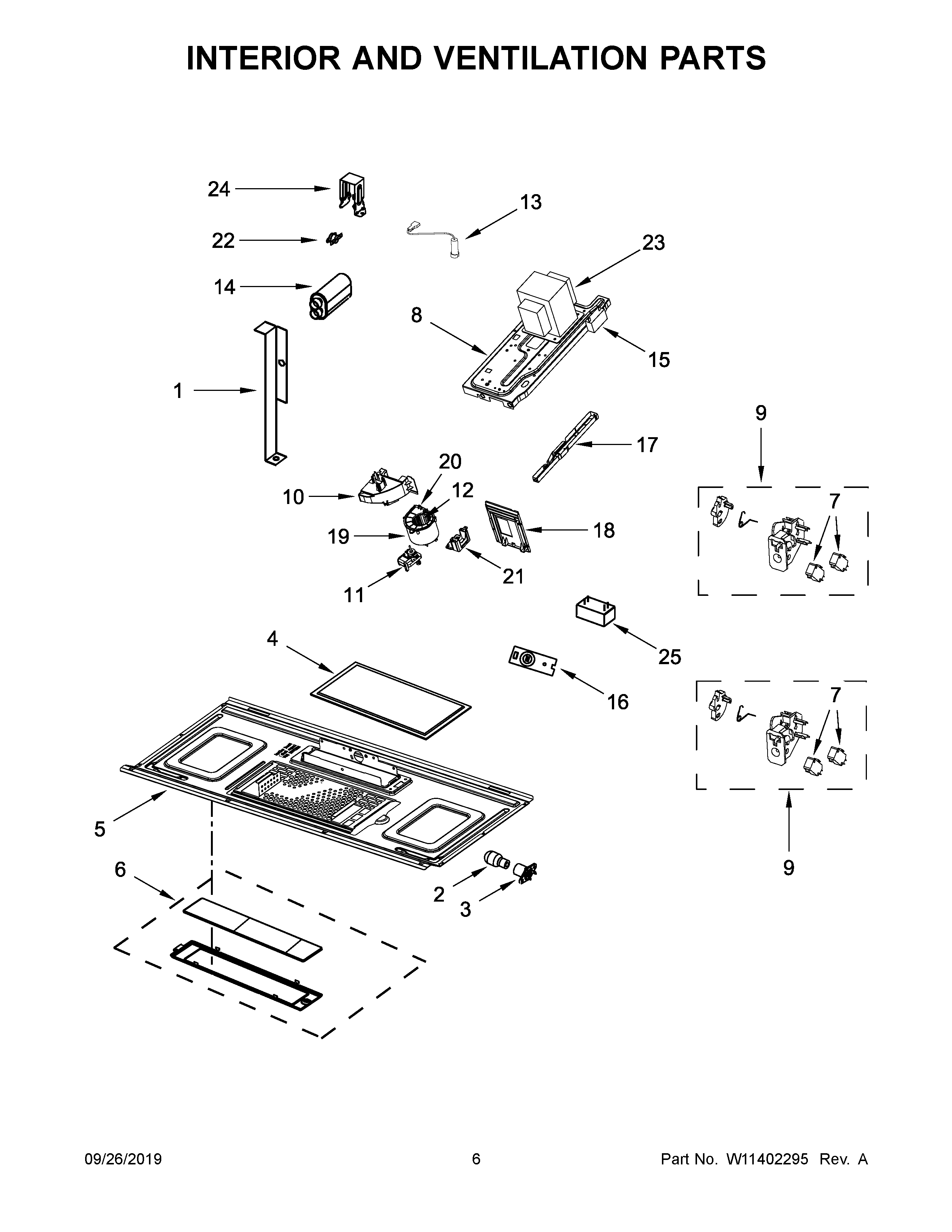

KMHS120EBL9 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10540715 Whirlpool Microwave Support Bracket
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10571127 Whirlpool Microwave Base
6	COVR-LIGHT
7	CABINET (NOT A SERVICEABLE PART)
8	W11350925 Whirlpool Microwave Base
9	INTERLOCK
10	W10631700 Whirlpool Microwave Air Guide
11	W11230994 Whirlpool Microwave Fan Motor
12	W10533503 Whirlpool Microwave Fan Wheel
13	W11256462 Whirlpool Microwave Diode
14	CAPACTR-MG
15	W11405831 Whirlpool Microwave Capacitor
16	W10536989 Whirlpool Microwave Thermistor
17	W10540718 Whirlpool Microwave Mounting Bracket
18	W11316476 Whirlpool Microwave Air Deflector
19	W10533501 Whirlpool Microwave Housing
20	W10533502 Whirlpool Microwave Fan Cover
21	W10533480 Whirlpool Microwave Holder
22	W10864742 Whirlpool Microwave Thermostat Fix
23	W11371266 Whirlpool Microwave Transformer
24	W10633730 Whirlpool Microwave Control Bracket
25	W11259892 Whirlpool Resistor
