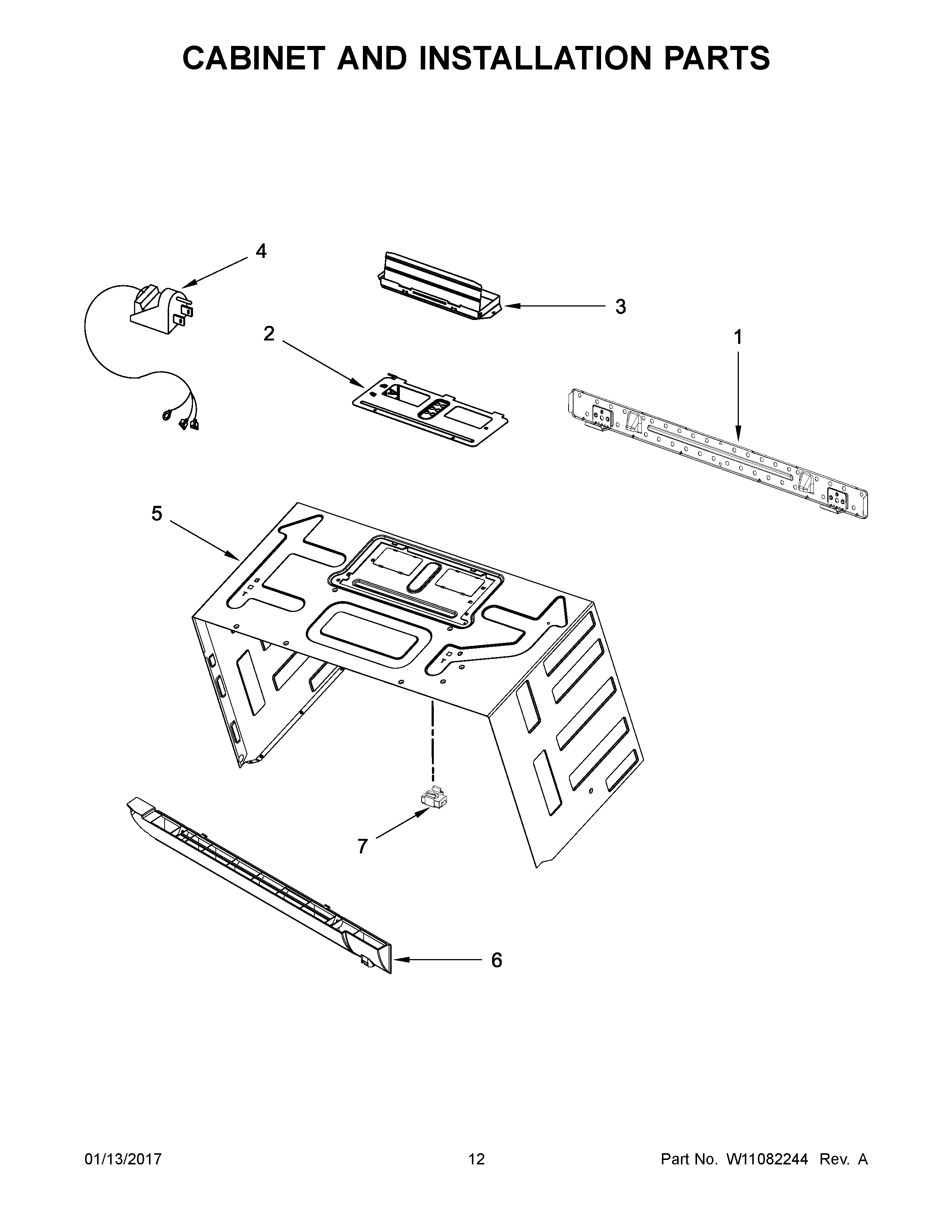

KMHS120EBS0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10710692 Whirlpool Microwave Wire Harness
NIW11638849 Whirlpool Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW10907910 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
2COVER, FAN MOTOR
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5W10818229 Whirlpool Microwave Cabinet Wrapper
6W10701697 Whirlpool Vent Grille
7W10596040 Whirlpool Microwave Nut
