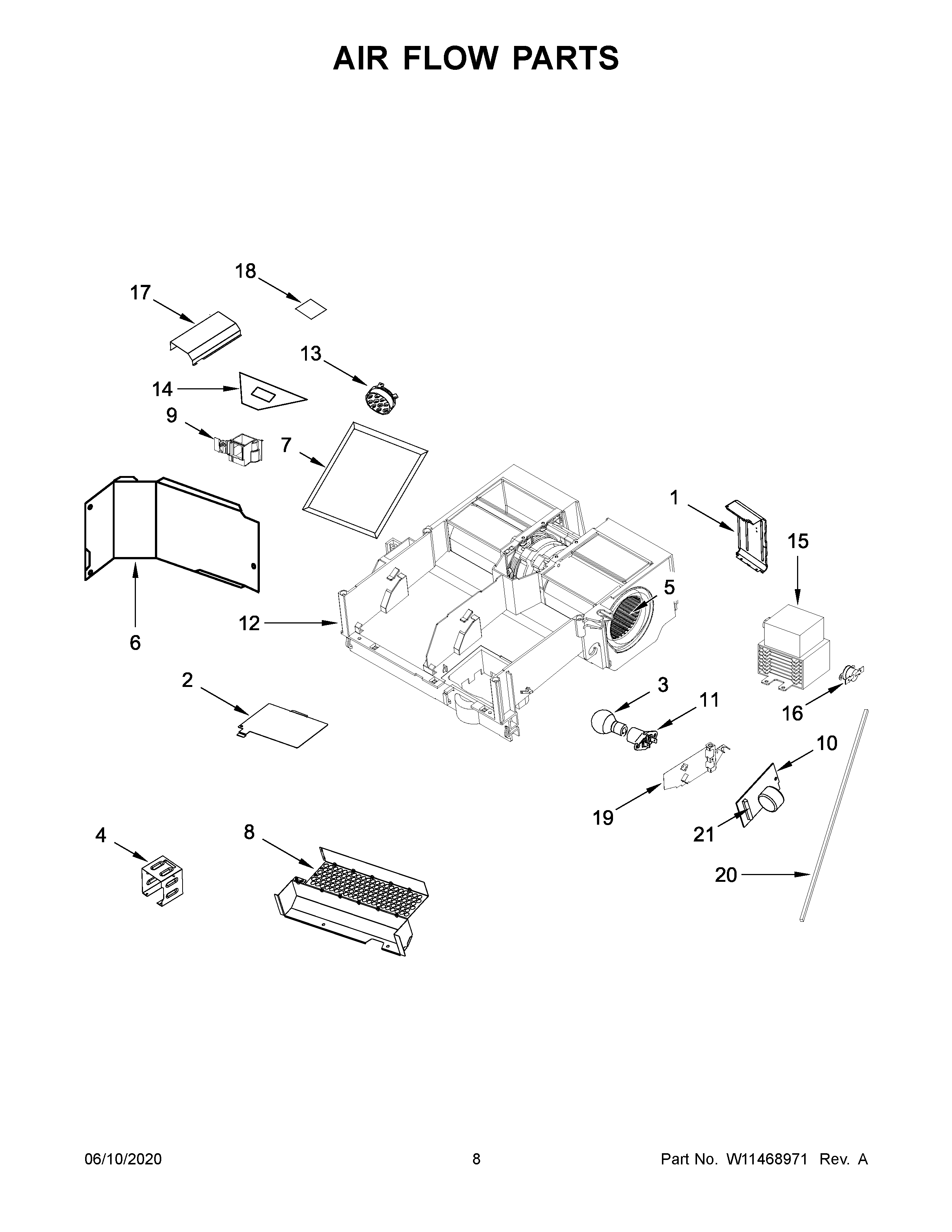

KMHS120ESS10 05 – AIR FLOW PARTS

KMHS120ESS10 05 – AIR FLOW PARTS

Written by

in

KMHS120ESS10 05 – AIR FLOW PARTS

Products

PositionProduct
1W10631697 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
3W11556218 Whirlpool Light Bulb
4HOUSING, DAMPER
5W11442100 Whirlpool Microwave Fan Motor
6W10533116 Whirlpool Microwave Deflector Assembly
78206230A Whirlpool Microwave Charcoal Filter
8W10629803 Whirlpool Microwave Side Cover
9W10570208 Whirlpool Air Guide
10WPW10531156 Whirlpool Microwave Filter
11WPW10210878 Whirlpool Microwave LMP Housing
12W10533096 Whirlpool Microwave Air Duct
13W11590866 Whirlpool Microwave Sensor
14W10810142 Whirlpool Relief Strain
15W10818686 Whirlpool Magnetron
16W10598693 Whirlpool Microwave Thermostat Fix
17OUTLET, CAVITY (BACK)
18W10531724 Whirlpool Microwave Lamp Glass
19W10533484 Whirlpool Microwave Air Duct
20W10626457 Whirlpool Microwave Foam Seal
21FUSE-THRML
