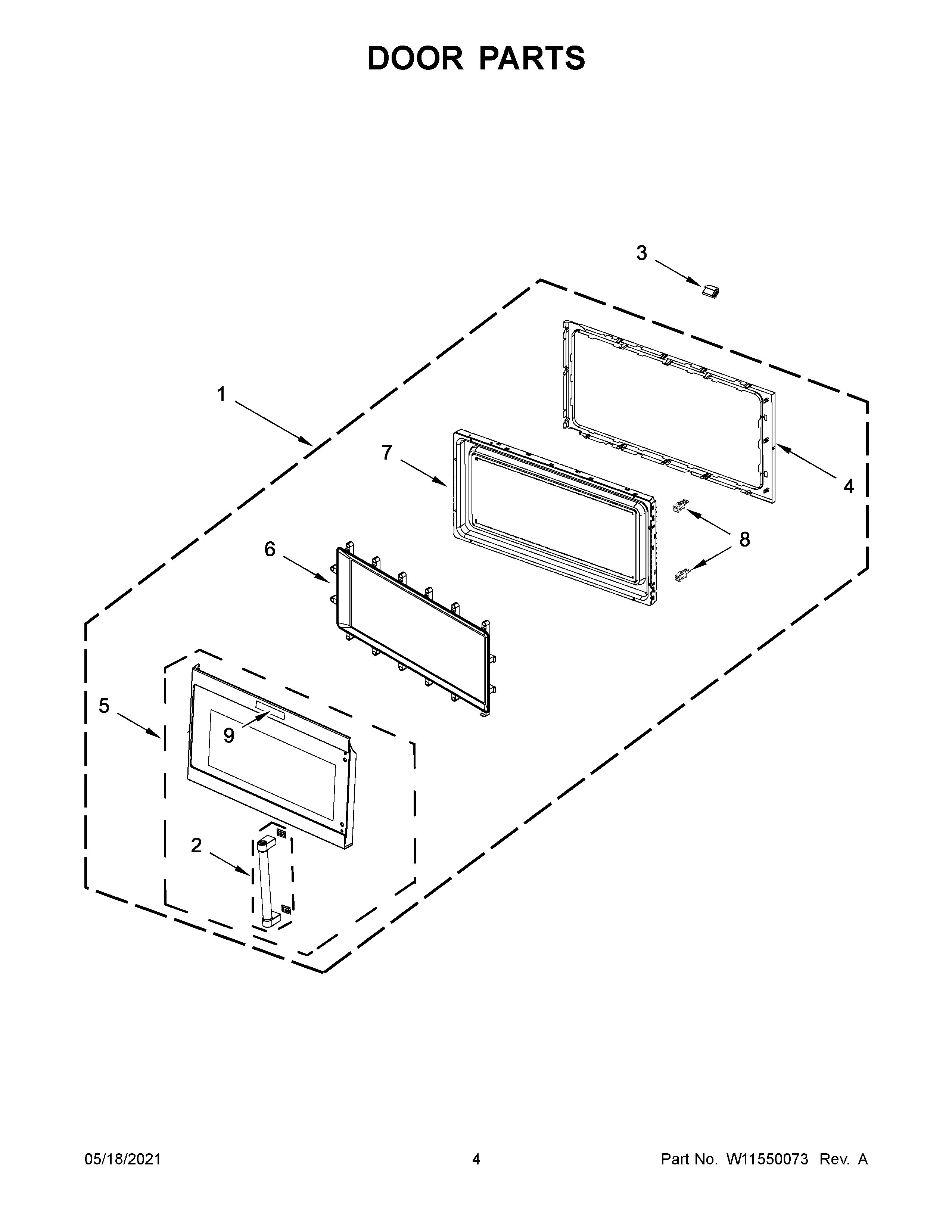

KMHS120EWH11 03 – DOOR PARTS

KMHS120EWH11 03 – DOOR PARTS

Written by

in

KMHS120EWH11 03 – DOOR PARTS

Products

PositionProduct
1AW10893437 Whirlpool Microwave Door
1W10893433 Whirlpool Microwave Door
2W11402531 Whirlpool Cushion
3AW10643974 Whirlpool Microwave Clip
3W10643975 Whirlpool Microwave Clip
4AW10647772 Whirlpool Microwave Choke Cover
4W10647773 Whirlpool Microwave Choke Cover
5AW10727608 Whirlpool Microwave Outer Door
5W10727606 Whirlpool Microwave Outer Door
6W10562560 Whirlpool Microwave Baffle
6AW10514243 Whirlpool Microwave Door Baffle
7AW10893422 Whirlpool Inner Door
7W10893418 Whirlpool Microwave Inner Door
8W10740455 Whirlpool Microwave Door Latch
9W10909682 Whirlpool Nameplate Tag
