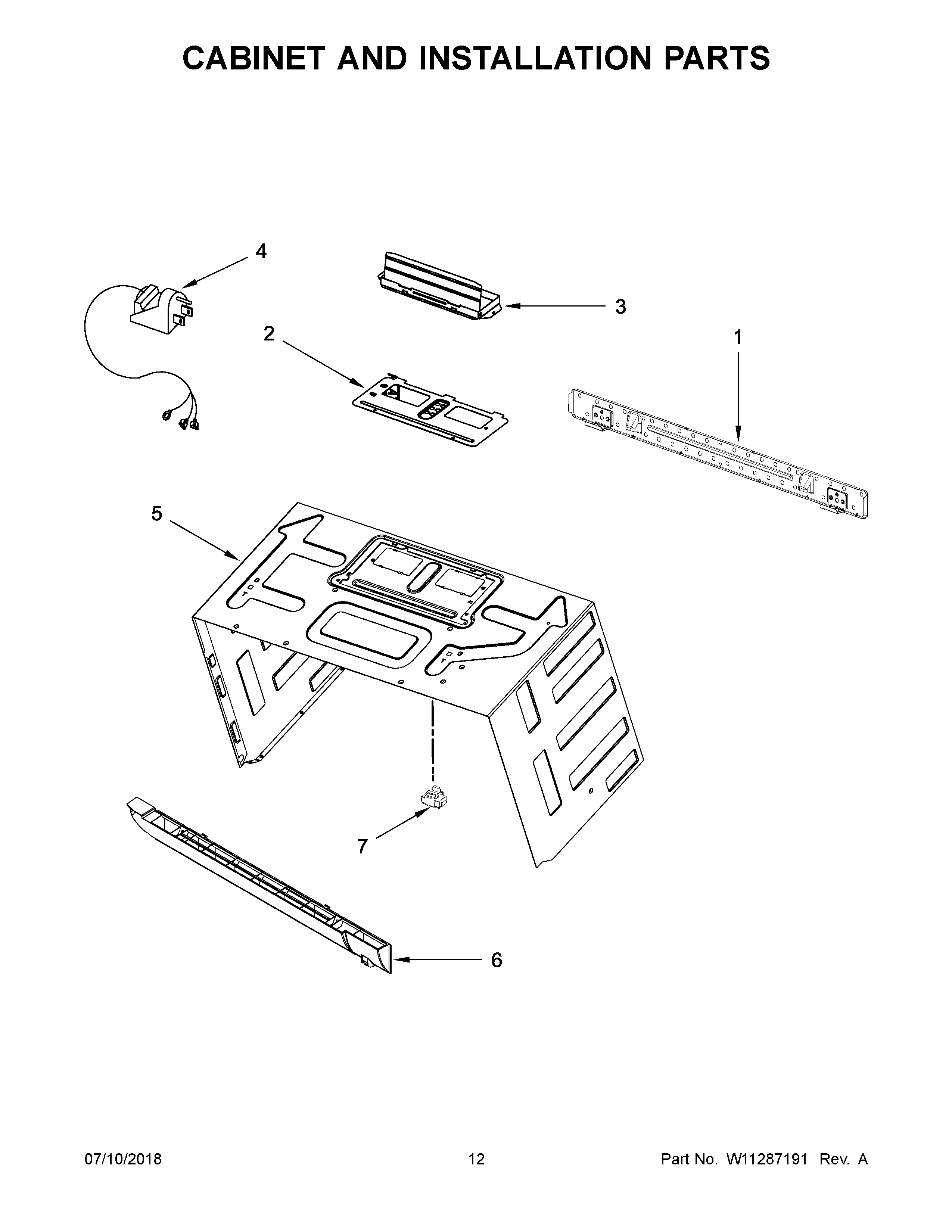

KMHS120EWH8 07 – CABINET AND INSTALLATION PARTS

KMHS120EWH8 07 – CABINET AND INSTALLATION PARTS

Written by

in

KMHS120EWH8 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10834336 Whirlpool Microwave Wire Harness
NIW11638849 Whirlpool Wire Harness
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW11182984 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
2COVER, FAN MOTOR
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5AW11662678 Whirlpool Cabinet Wrapper
5W11446920 Whirlpool Microwave Cab Wrapper
6AW10701697 Whirlpool Vent Grille
6W10701696 Whirlpool Microwave Vent Grill Assembly
7W11122643 Whirlpool Nut
