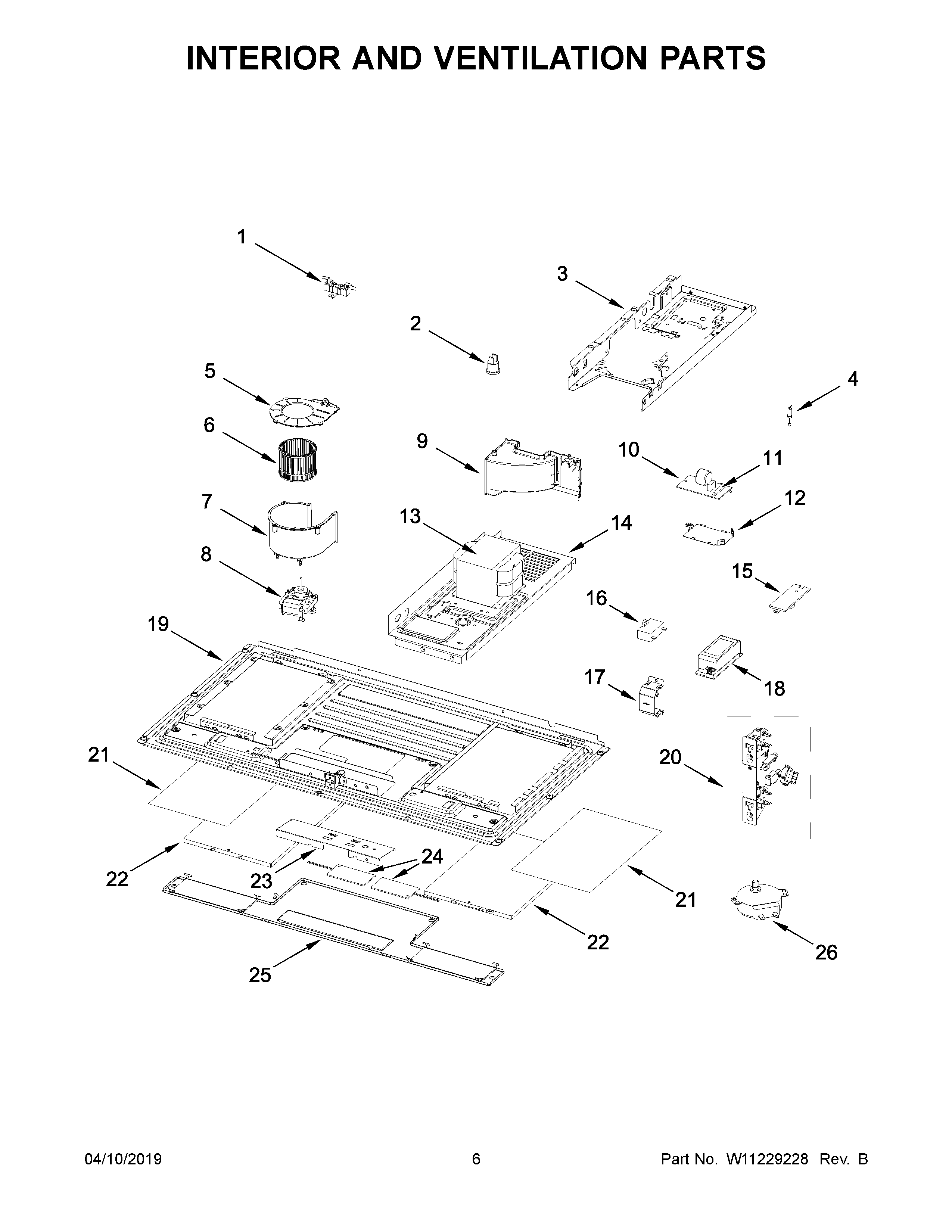

KMLS311HBL0 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W11122225 Whirlpool Microwave Resistor
2	W11213317 Whirlpool Microwave Thermostat
3	PLATE, CHASSIS
4	W11256462 Whirlpool Microwave Diode
5	COVER, COOLING FAN
6	W11088354 Whirlpool Microwave Fan Wheel
7	W11213349 Whirlpool Microwave Housing
8	W11443154 Whirlpool Microwave Fan Motor
9	W11088358 Whirlpool Microwave Air Guide
10	WPW10531156 Whirlpool Microwave Filter
11	FUSE-THRML
12	W10313274 Whirlpool Microwave Mounting Bracket
13	W11024976 Whirlpool Microwave Transformer
14	CHASSIS, TRANSFORMER
15	W10536989 Whirlpool Microwave Thermistor
16	CAPACTR-MG
17	W11095808 Whirlpool Compactor Bracket
18	W11117966 Whirlpool Microwave Transformer
19	W11159942 Whirlpool Microwave Base
20	W11213912 Whirlpool Microwave Interlock
21	W11213882 Whirlpool Microwave Charcoal Filter
22	W11230008 Whirlpool Microwave Filter
23	W11086295 Whirlpool Microwave Reflector
24	W11048310 Whirlpool Microwave Lamp
25	ASSEMBLY, GLASS HOLDER
26	W11545873 Whirlpool Microwave Turn Motor
