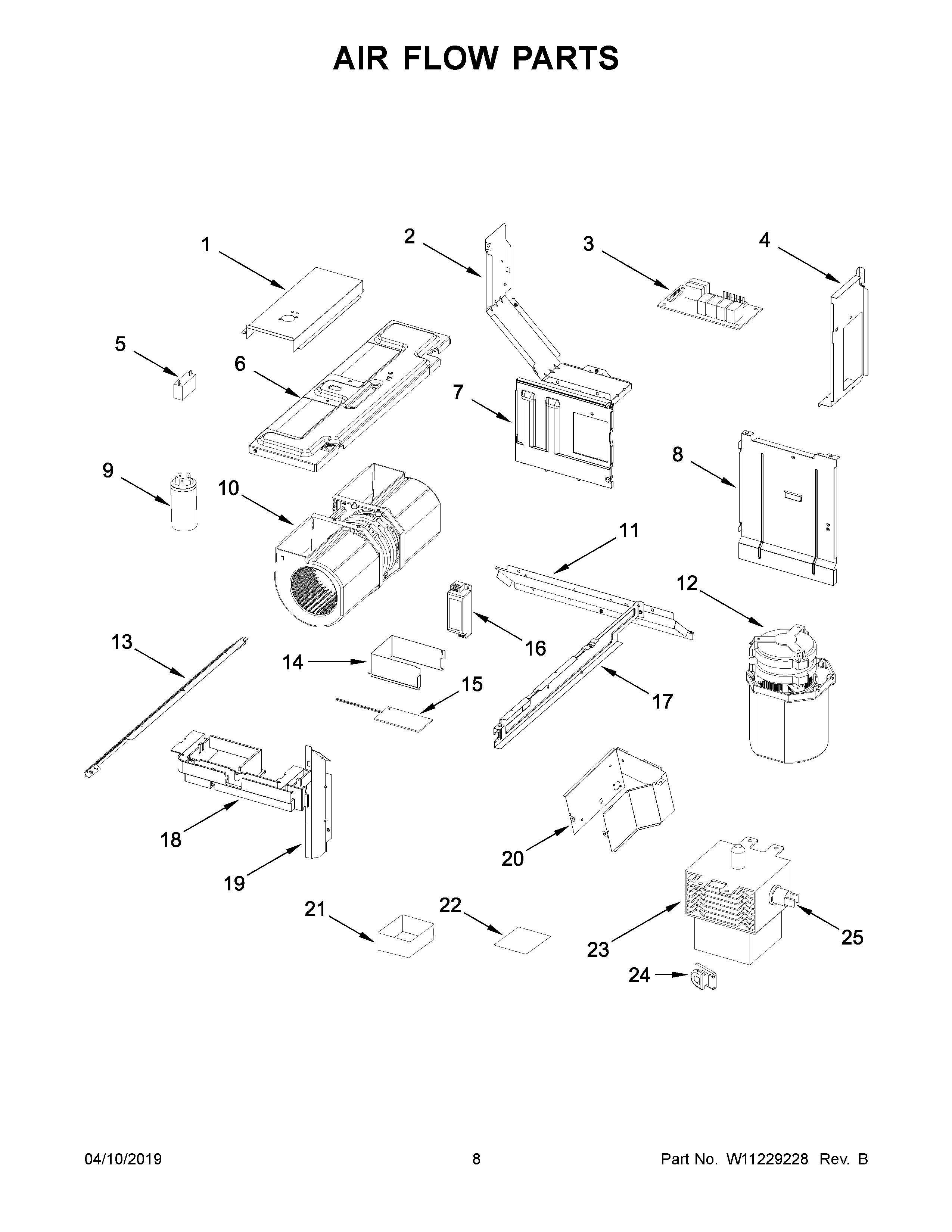

KMLS311HBL0 05 – AIR FLOW PARTS

Products

Position	Product
1	OUTLET, CAVITY (BACK)
2	AIR DEFLECTOR, RIGHT
3	W11133802 Whirlpool Microwave Electronic Control Board
4	OUTLET DEFLECTOR, RIGHT
5	W11405831 Whirlpool Microwave Capacitor
6	CHASSIS, FAN
7	W11095794 Whirlpool Deflector Assembly
8	W11095804 Whirlpool Deflector Assembly
9	W10557536 Whirlpool Microwave Sensor
10	W11409093 Whirlpool Microwave Fan Motor
11	HOOD DEFLECTOR, BACK
12	W11213353 Whirlpool Microwave Fan Motor
13	AIR GUIDE, LEFT
14	W11086300 Whirlpool Microwave Reflector
15	BOARD, LED LAMP
16	W11117964 Whirlpool Microwave Transformer
17	DIVIDER, AIR
18	HOLDER, WIRE
19	CHANNEL, HOOD BACK
20	W11127425 Whirlpool Microwave Housing
21	SEAL, LIGHTING
22	FOIL, LAMP
23	W11402082 Whirlpool Microwave Magnetron
24	W11126543 Whirlpool Microwave Foam Seal
25	W11125676 Whirlpool Microwave Thermostat
