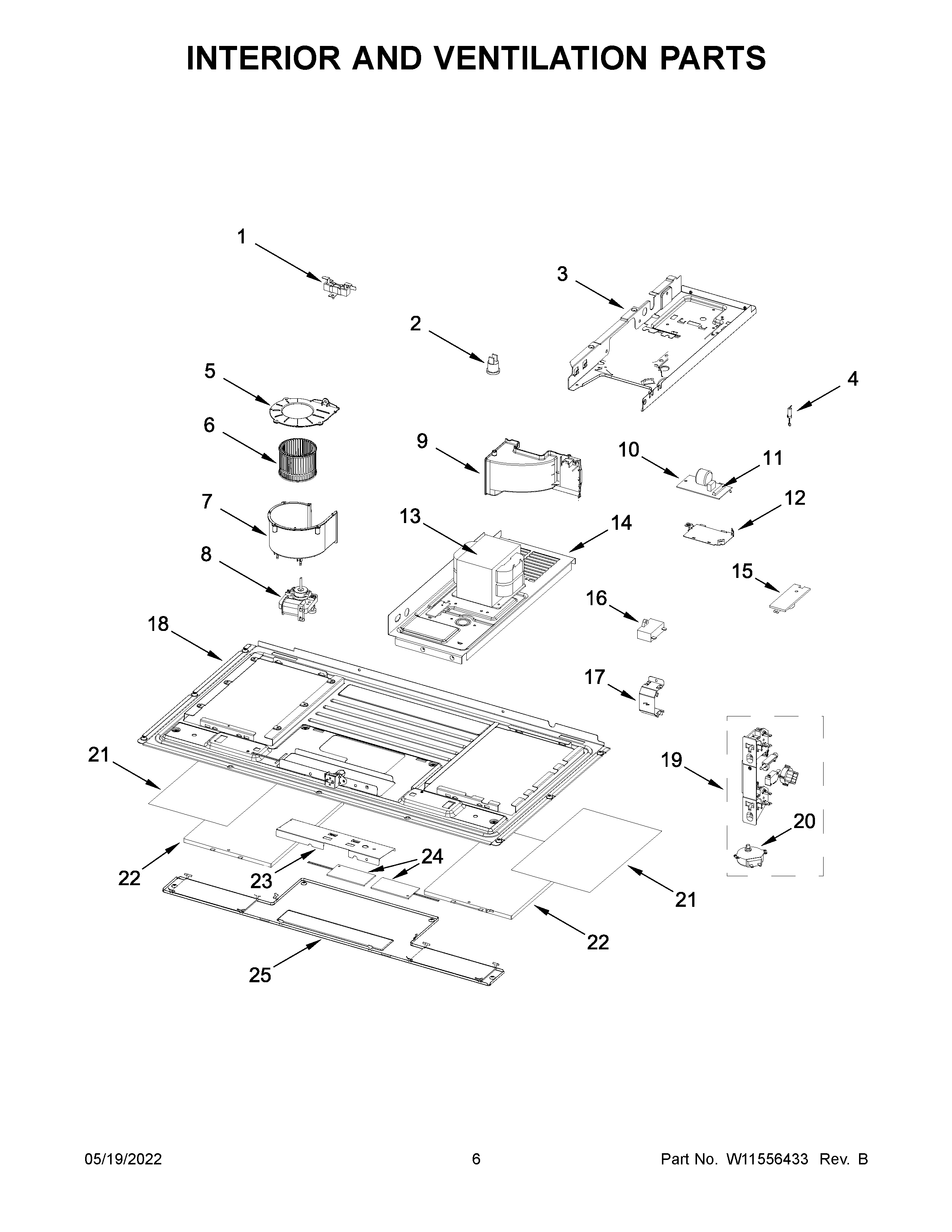

KMLS311HBL09 04 – INTERIOR AND VENTILATION PARTS

KMLS311HBL09 04 – INTERIOR AND VENTILATION PARTS

Written by

in

KMLS311HBL09 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11259893 Whirlpool Resistor Assembly
2W11378281 Whirlpool Fix Thermostat
3PLATE, CHASSIS
4W11256462 Whirlpool Microwave Diode
5COVER, COOLING FAN
6W11088354 Whirlpool Microwave Fan Wheel
7W11213349 Whirlpool Microwave Housing
8W11443154 Whirlpool Microwave Fan Motor
9W11088358 Whirlpool Microwave Air Guide
10WPW10531156 Whirlpool Microwave Filter
11FUSE-THRML
12W10313274 Whirlpool Microwave Mounting Bracket
13W11628655 Whirlpool Microwave HVT Transformer
14CHASSIS, TRANSFORMER
15W10536989 Whirlpool Microwave Thermistor
16CAPACTR-MG
17W11095808 Whirlpool Compactor Bracket
18W11159942 Whirlpool Microwave Base
19W11493414 Whirlpool Microwave Interlock
20W11545873 Whirlpool Microwave Turn Motor
21W11322423 Whirlpool Charcoal Filter
22W11230008 Whirlpool Microwave Filter
23W11086295 Whirlpool Microwave Reflector
24W11443139 Whirlpool Microwave Light
25ASSEMBLY, GLASS HOLDER
