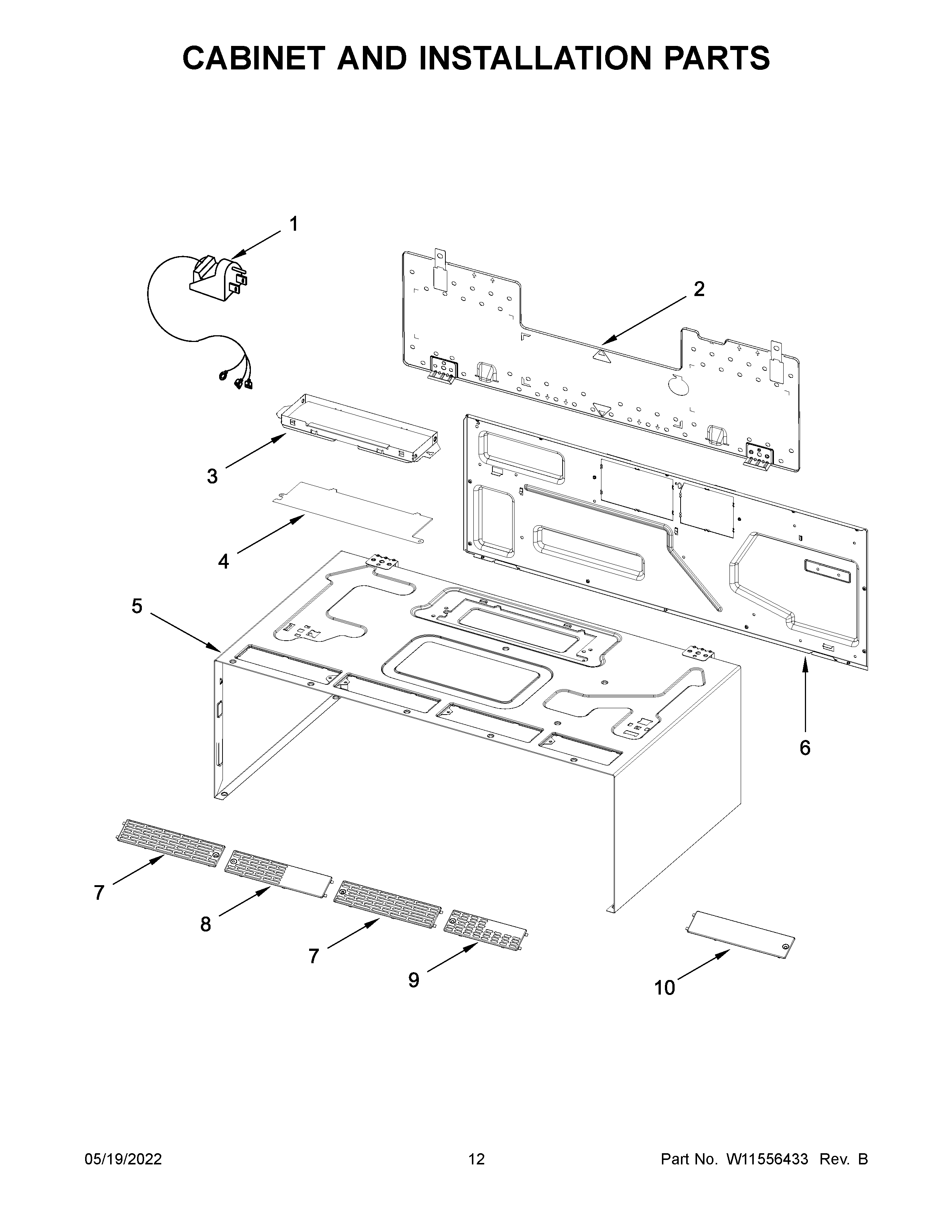

KMLS311HBL09 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	W11280691 Whirlpool Microwave Wire Harness
NI	W11213883 Whirlpool Microwave Wire Harness
NI	W11213885 Whirlpool Microwave Wire Harness
NI	W11322425 Whirlpool Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	W11266688 Whirlpool Microwave Wire Harness
NI	W11479911 Whirlpool Wire Harness
NI	W11230039 Whirlpool Microwave Wire Harness
NI	WPL W11205696
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	W10821385 Whirlpool Hardware Kit
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W11101699 Whirlpool Microwave Wire Harness
1	W11187358 Whirlpool Microwave Power Cord
2	W11368557 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	COVER, EXHAUST (WHITE)
4A	COVER, EXHAUST (BLACK)
4B	COVER, EXHAUST (STAINLESS)
5C	W11446949 Whirlpool Microwave Cabinet Wrapper
5B	W11493413 Whirlpool Microwave Cabinet Wrapper
5	W11446922 Whirlpool Cabinet Wrapper
5A	W11446923 Whirlpool Microwave Cabinet Wrapper
6	W11360416 Whirlpool Plate
7	W11086309 Whirlpool Microwave Vent Grille
8	W11095781 Whirlpool Microwave Vent Grille
9	W11086310 Whirlpool Microwave Vent Grill
10	W11397086 Whirlpool Microwave Vent Grill
