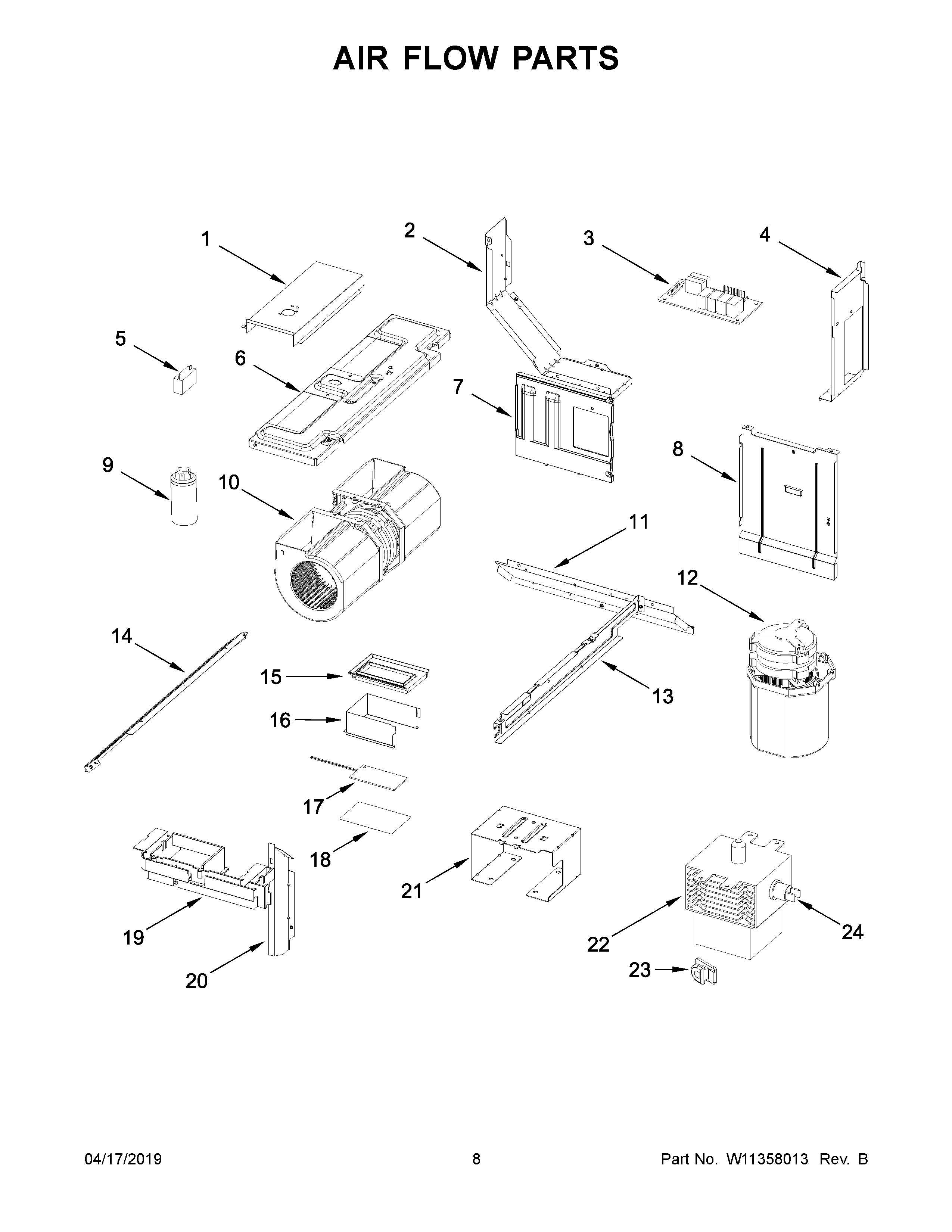

KMLS311HBL7 05 – AIR FLOW PARTS

Products

Position	Product
1	OUTLET, CAVITY (BACK)
2	AIR DEFLECTOR, RIGHT
3	CNTRL-ELEC
4	OUTLET DEFLECTOR, RIGHT
5	W11405831 Whirlpool Microwave Capacitor
6	CHASSIS, FAN
7	W11095794 Whirlpool Deflector Assembly
8	W11095804 Whirlpool Deflector Assembly
9	W10557536 Whirlpool Microwave Sensor
10	W11409093 Whirlpool Microwave Fan Motor
11	HOOD DEFLECTOR, BACK
12	W11213353 Whirlpool Microwave Fan Motor
13	DIVIDER, AIR
14	AIR GUIDE, LEFT
15	SEAL, LIGHTING
16	W11086300 Whirlpool Microwave Reflector
17	W11322424 Whirlpool Microwave Lamp
18	FOIL, LAMP
19	HOLDER, WIRE
20	CHANNEL, HOOD BACK
21	HOUSING, TRANFORMER
22	W11402082 Whirlpool Microwave Magnetron
23	W11126543 Whirlpool Microwave Foam Seal
24	W11125676 Whirlpool Microwave Thermostat
