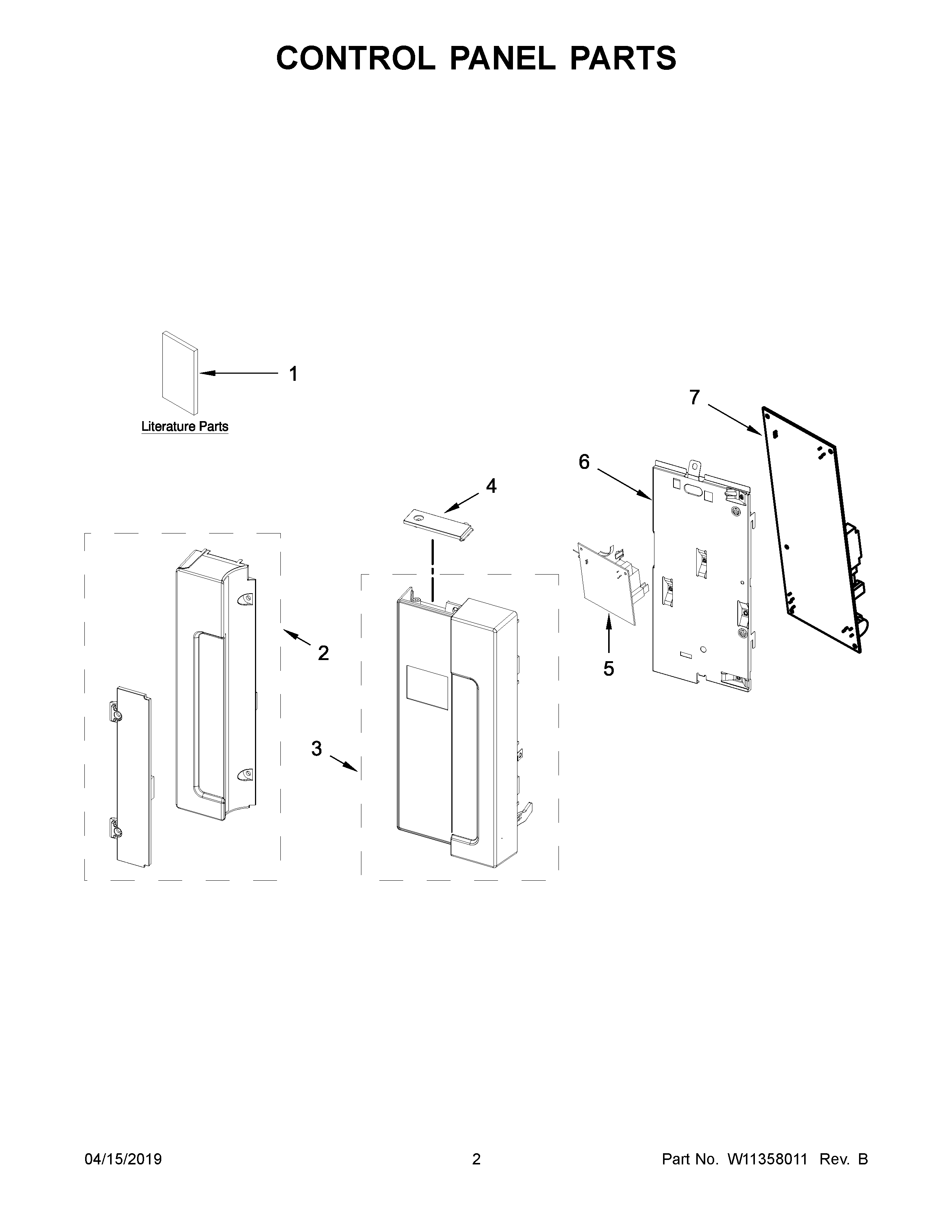

KMLS311HWH5 02 – CONTROL PANEL PARTS

KMLS311HWH5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2BW11227003 Whirlpool Microwave Control Panel
2W11226999 Whirlpool Microwave Control Panel
2AW11227002 Whirlpool Control Panel
2CW11227004 Whirlpool Microwave Control Panel
3BW11226997 Whirlpool Microwave Control Panel
3W11226994 Whirlpool Microwave Control Panel
3AW11226996 Whirlpool Microwave Control Panel
3CW11226998 Whirlpool Microwave Control Panel
4W11109987 Whirlpool Microwave Cover Plate
4AW11083285 Whirlpool Microwave Cover Plate
5W11363946 Whirlpool Microwave Electronic Control Board
6W11083284 Whirlpool Microwave Plate
7W11286014 Whirlpool Microwave Electronic Control Board
